Specifications
1.Heavy Hammer Crusher:2.Durable high chrome hammers;
3.Compact structure;
4.Large feeding size;
5. ISO Certificate

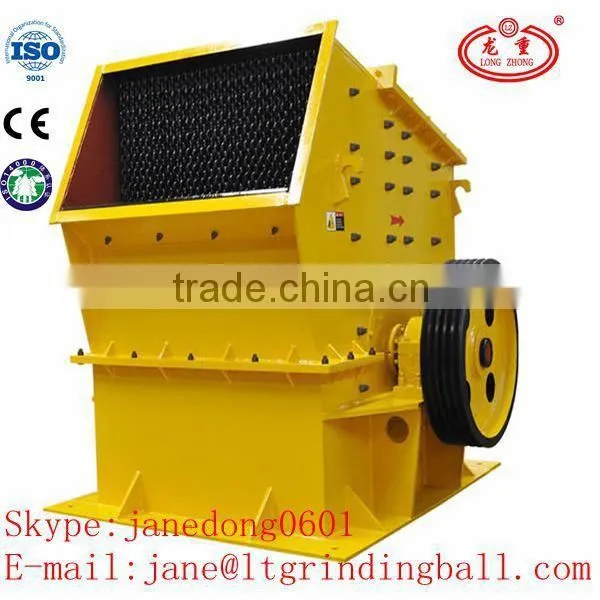

Longteng high quality hammer crush
1. Brief Introduction Of Heavy Hammer Crusher:
Such hammer crusher is designed based on the previous technology of hammer crusher, box crusher and impact crusher, It is the new heavy duty hammer crusher which is famous by its large crushing ability. And is suitable for crushing big, medium and small stones and is easy to be operated.
2. Production Application Of Heavy Hammer Crusher:
Hammer crusher (heavy duty hammer crusher) is suitable for midhard and weak erosive materials, whose compressive resistance strength is no more than 150Mpa and humidity lower than 15%, such as coal, salt, chalk, gypsum, bricks, limestone, etc.
3. Operating Principles Of Heavy Hammer Crusher:
The main working part of small hammer crusher is the rotor with hammers. The rotor is composed of the main shaft, disk, pin shaft and hammers. The motor drives the rotor to rotate fast in the crushing cavity. Raw materials enter the crusher through the feed opening and are hit, impacted, cut and ground by the highspeed hammers to small size. There is a sieve plate under the rotor, so that materials whose size are smaller than the screen mesh are screened out and others are left to be further hammered and ground until reaching the standard size. The size of the final product can be adjusted by changing the sieve plate. The gap between the rotor and the sieve plate can also be adjusted according to different requirements
4. Technical Parameters of Hammer Crusher:
Model |
Diameter of Rotor (mm) |
Width of Rotor (mm) |
Rotor Speed (r/min) |
Max.Feeding Size (mm) |
Max.Discharge Size (mm) |
Capacity(t/h) |
Power(Kw) |
PC400×300 |
400 |
300 |
1000 |
50 |
10 |
2-8 |
7.5 |
PC600×400 |
600 |
400 |
1000 |
80 |
15 |
9-20 |
22 |
PC800×600 |
800 |
600 |
980 |
120 |
15 |
13-30 |
55 |
PC800×800 |
800 |
800 |
980 |
160 |
15 |
35-65 |
75 |
PC1000×800 |
1000 |
800 |
980 |
200 |
20 |
55-85 |
110 |
PC1000×1000 |
1000 |
1000 |
980 |
250 |
20 |
80-120 |
132 |
PC1200×1200 |
1250 |
1250 |
740 |
300 |
20 |
110-260 |
185 |
PC1400×1400 |
1400 |
1400 |
740 |
350 |
25 |
240-450 |
250 |
PC1600×1600 |
1600 |
1630 |
600 |
400 |
25 |
320-680 |
315 |

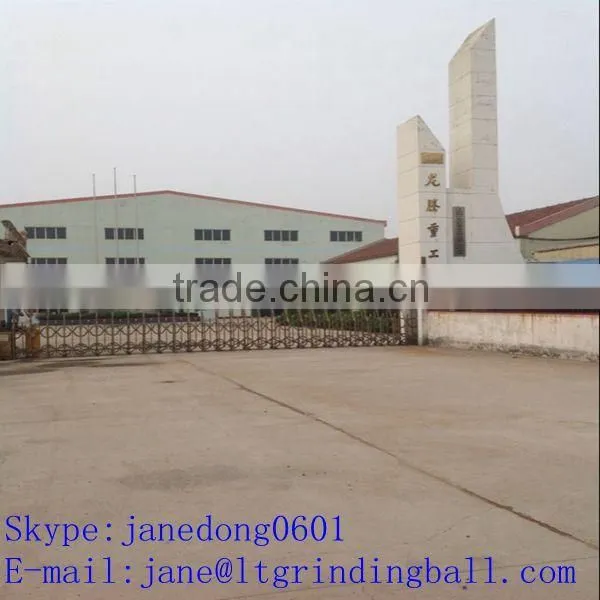

(Shandong. China)Zhangqiu Long Teng Cement Machinery Making Co., Ltd. is Zhangqiu Building Material Equipment Factory established in 1970, and the factory is formally restructured and registered as Zhangqiu Long Teng Cement Machinery Making Co., Ltd in 2002. The company has become one of the new domestic cement equipment and mining equipment manufacturing enterprises after constructing and developing for 40 years.
1. We are Factory.(Not Dealer)
All machines from Zhangqiu Long Teng Cement Machinery CO., LTD are made by ourselves with lower price, good quality and we assure full after service. So it is wise of you to buy machines from our factory.
2. Training & Service
*Pre-sale services: Enthusiasm
We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.
*Sale services: Profession
Skilled technicians are sent to the worksite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
*After-sale service: Loyalty
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide oneyear warrantee to make sure your machine runs properly. We always keep certain inventory level of spare parts, which means the replcaments can be shipped to you right away.
3. If you are new for this business, we will help you.
Many thanks for your trust. Based on your demands and conditions of working spot, we can provide you with design scheme for whole production lines, and the service of spot inspection and operator training. We can also help you choose the right equipment.
4. We'd like to recommend a suitable type for you and send you a best quotation.
Some questions for you and us to decide which specification you need. Please inform us in your inquiry.
