Specifications
1.Hammer Crusher2.Long lifetime hammer head;
3.Perfect for small and middle production;
4.Reliable performance, ISO

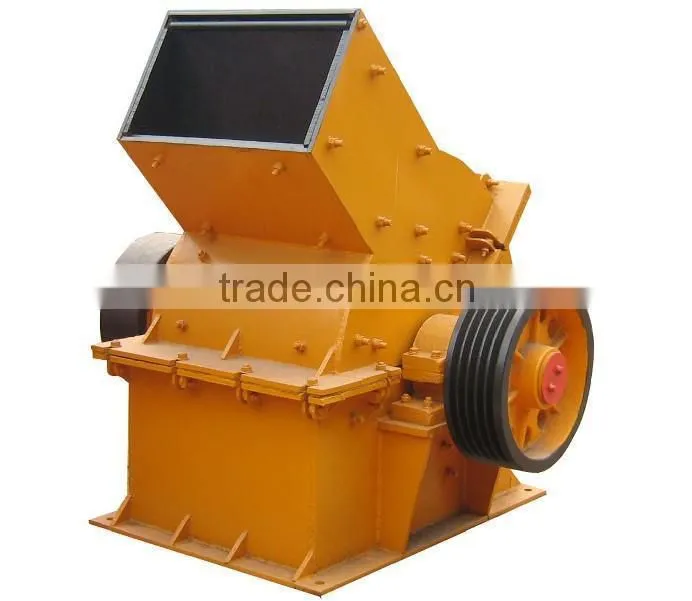

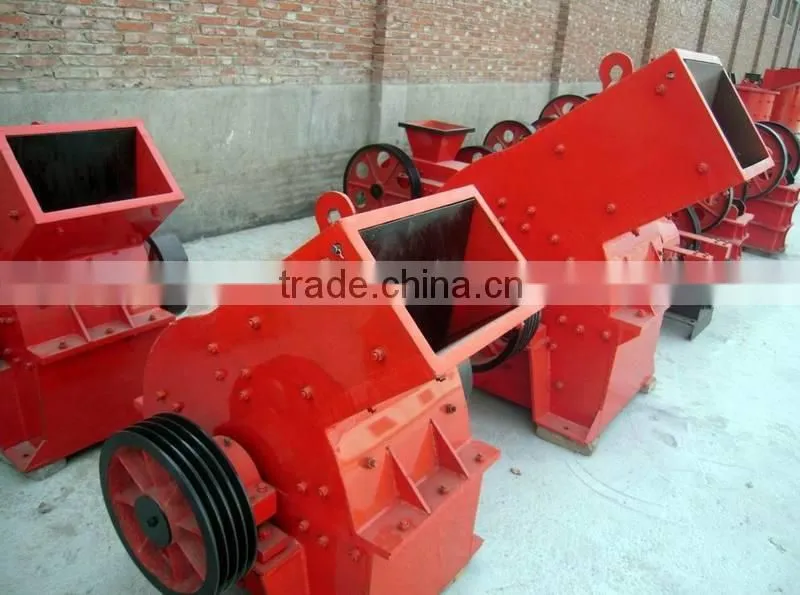

2014 Zhangqiu Longteng Hammer Crusher Plant
Contact: 0086 18678807296
1. Introduction Of Hammer Mill:
Mining Equipment: Hammer mill is suitable for crushing maximum, medium and minimum stones and is easy to be operated.
2. Application Of Hammer Mill:
Hammer crusher (hammer mill) is suitable for mid-hard and light erosive materials, whose pressure resistance strength is no more than 100Mpa and humidity lower than 15%, such as coal, salt, chalk, gypsum, blocks, limestone, etc. The PC-Hammer crusher is suitable for both dry and wet crushing of brittle, medium-hard materials for the mining,coal, metallurgic, construction material, road building, and chemical industries. the maximum, compressive resistance of the crushed materials can be up 150Mpa.
3. Operating Principle Of Hammer Mill:

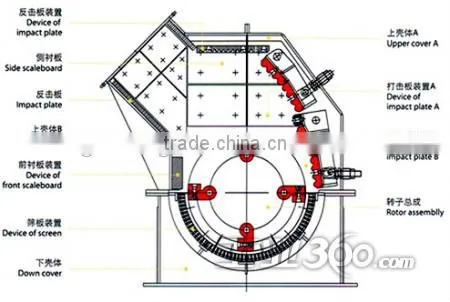

The main working part of hammer mill is rotors with hammer. The rotors consist of main shaft, disk, pin shaft and hammers. The motor drives the rotors to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by the high-speed hammer to small size. There is a screening plate under the rotor, so that materials with size smaller than the screen mesh will be screened out and others are left to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the screening plate. The gap between the rotors and the screening plate can also be adjusted according to different requirement.
4.Technical Data of Hammer Crusher:
small types hammer mill
Types |
Rotor Diameters*length mm |
Mouth size W*L mm |
Feeding size mm |
Capacity t/h |
Motor power KW |
Theoretical weight t |
Dimensions L*W*H mm |
PC-0706 |
700*570 |
618*510 |
≤400 |
50-70 |
75 |
3.2 |
1950*1340*1480 |
PC-0808 |
800*750 |
780*610 |
≤500 |
80-100 |
132 |
5.3 |
2280*1790*1670 |
PC-0910 |
900*1000 |
1070*750 |
≤600 |
150-200 |
110*2 |
9.8 |
2600*2200*1940 |
PC-1012 |
1000*1180 |
1255*810 |
≤650 |
250-300 |
132*2 |
13.2 |
2800*2310*2210 |
PC-1213 |
1200*1280 |
1350*900 |
≤750 |
300-350 |
160*2 |
17.1 |
2970*2580*2510 |
Notes: If the parameters change, we will not notice separately, please excuse us.
Heavy types hammer mill
Types |
Rotor Diameters*length mm |
Mouth size W*L mm |
Feeding size mm |
Capacity t/h |
Motor power KW |
Theoretical weight t |
Dimensions L*W*H mm |
PCZ1308 |
1310*790 |
850*800 |
≤600 |
100-160 |
132 |
11.2 |
2818*2100*2390 |
PCZ1510 |
1500*950 |
1000*900 |
≤700 |
160-210 |
132*2 |
17.1 |
3260*3702*2750 |
PCZ1512 |
1500*1160 |
1210*900 |
≤750 |
250-320 |
160*2 |
18.9 |
3260*2580*2750 |
PCZ1615 |
1650*1452 |
1500*1200 |
≤1000 |
360-420 |
200*2 |
28 |
3456*2915*3185 |
PCZ1620 |
1660*1900 |
2000*1300 |
≤1200 |
500-800 |
315*2 |
46 |
3500*3100*3200 |
1. We are Factory (Not Dealer):
All machineries from Zhangqiu Long Teng Machinery Making CO., LTD are made by ourselves over 40 years, with lower price, good quality and assured full after service. So please buy machine from our factory.
2. Training & Service:
♥ Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.
♥ Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators, etc.
♥ After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
♥ In addition, We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. If you are new for this business, we will help you
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
4. We’d like to recommend a suitable type for you and send you a best quotation. Some questions please inform us in your enquiry.
♥ 1. What is raw material?
♥ 2. What is feeding size and output size?
♥ 3. What is required capacity?
