Help CenterSlitting Machine
Related Products
Specifications
1: Suitable for converting industrial2: good quality
3:CE certification
Application:
This machine adopts microcomputer control automatic slitting and rewinding with such characteristics as reasonable structure, complete function and stable performance and it is in the lead at home. It has been widely used for converting industry such base materials as various roll film materials,adhesive basis paper, aluminum foil laminated with film, insulating paper ,sensitive material and roll paper,etc.and it is a kind of main auxiliary equipment for packing products.
STRUCTURE AND FEATURES:
1) Main motor: electromagnetic speed regulation motor
2) Separated general control cabinet, more flexible and even easier operaion
3) A utomatic EPC for unwinding, photocell is suitable for tracking the edge or the line of material.
4) Equipped with air shaft for unwinding material loading, magnetic powder brake for unwinding tension control
5) Air shaft for rewinding, Magnetic powder clutch for rewinding tension control
6) Equipped with air trim discharge conveying sstem.
7) Automatic meter counting device
8)Pressure roller for rewinding to make rewinding roll more uniform
9) Option: Disk knife
SPECIFICATION
| Type | FQ-W700A | FQ-W1100A | FQ-W1300A |
| Max. width of mother roll | 700mm | 1100mm | 1300mm |
| Max. diameter of mother roll | Φ600mm | Φ600mm | Φ600mm |
| Width of final roll | 50-700mm | 50-1100mm | 50-1300mm |
| Max. diameter of rewinding | Φ380mm | Φ380mm | Φ380mm |
| internal diameter of roll core | Φ76mm | Φ76mm | Φ76mm |
| Mechanical speed | 180m/min | 180m/min | 180m/min |
| slitting and rewinding speed | 160m/min | 160m/min | 160m/min |
| Total power | 3.1kw | 3.9kw | 3.9kw |
| weight of machine | 1800kg | 2000kg | 2200kg |
| Overall dimension(L*W*H) | 2300*1900*1200mm | 2300*2300*1200mm | 2300*2500*1200mm |
| Tolerance of EPC | ±0.5mm | ±0.5mm | ±0.5mm |

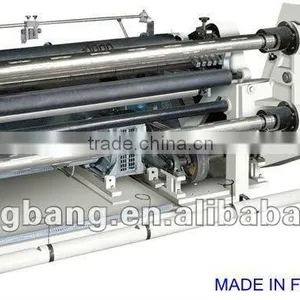

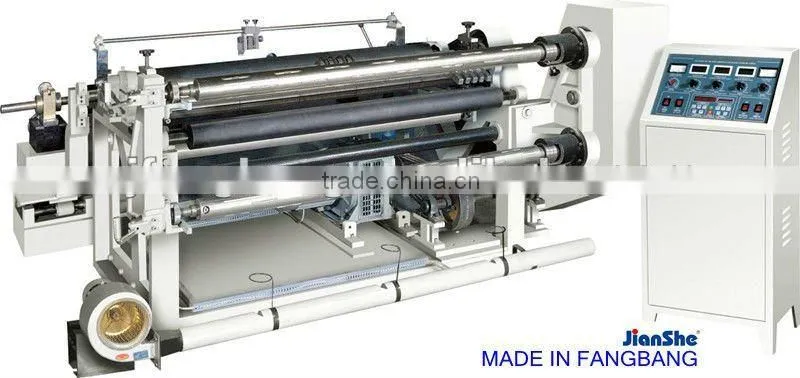

MACHINE PHOTO

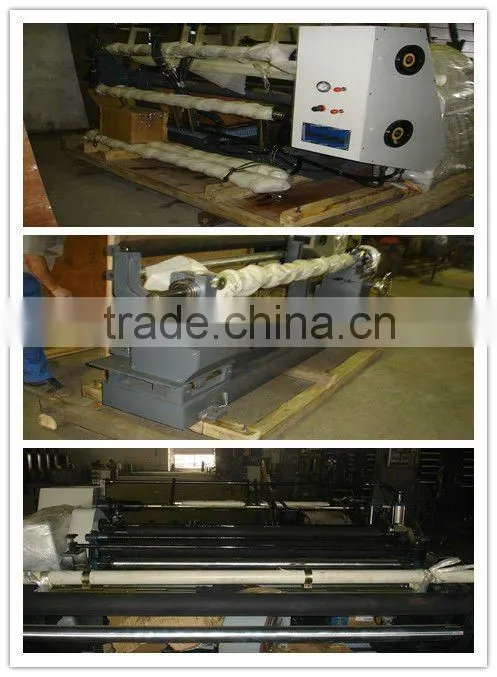

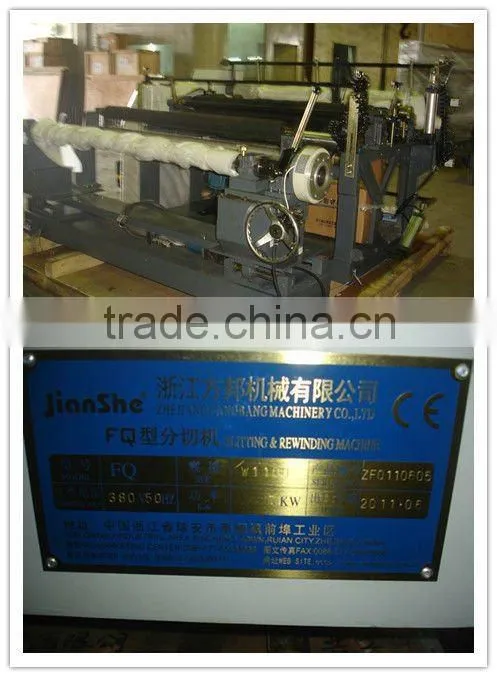

MACHINE DETAILS:
2:

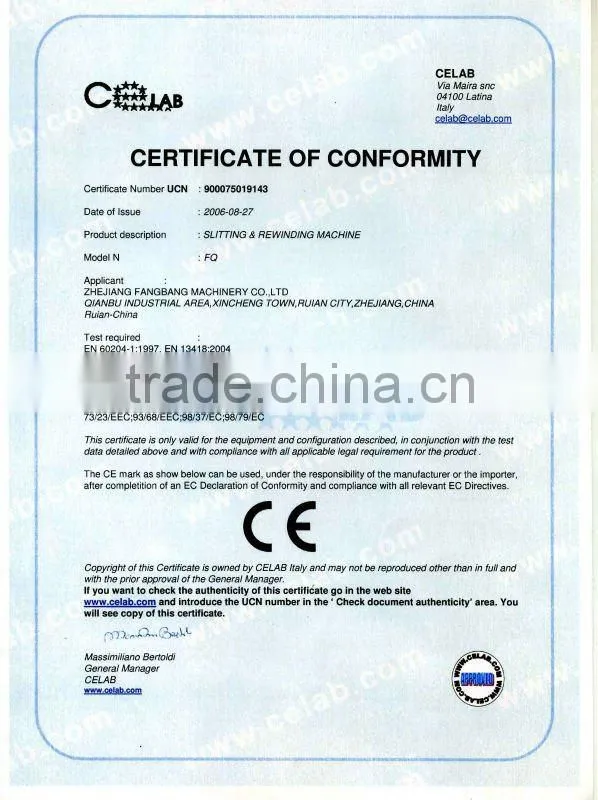

CE CERTIFICATION:
