BOPP/PET/PVC/PE Aluminum foil Rotogravure press
- 5 Set / Sets per Month
- NingBO
- T/T D/P D/A Credit Card
- High Quality High Speed Rotogravure Printing Machine
- ASY gravure printing plastic film reel machine
- 2 Color 3 Unit Group Rotogravure Printing Machine
- Polyethylene Film Paper Aluminum Foil Rotogravure Intaglio Printing
- auto register rotogravure printing machine high quality high speed multicolor rotogravure printing
- Roll to Roll multi colour rotogravure printing machinery/textile printing machinery/plastic gravure printing machine
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | FangBang |
Model Number: | AZJ-C Series | Usage: | Paper Printer, Other, Paper Printer, Plastic printer | Automatic Grade: | Semi-Automatic |
Voltage: | 220V/380V | Gross Power: | 231KW | Dimensions(L*W*H): | 16000*3900*3400 |
Weight: | 29000KG | Certification: | CE,ISO9001 | Warranty: | One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
To be the Best Printing&Packaging Manufacture in China
Company introduction:
- 14 years experience in packing industrial
- Appliance is strictly in accordance with CE standard
- Assembly&parts are processed by CNC lathe
- Good after-sale service
- Prompt reply within 24 hours
- Professional&enthusiastic sales team
FangBang Development History:
- August ,1999 ---Ruian.jianshe Packing Equipment Co.,Ltd ,Was established
- April ,2002 ---Shanghai Fangbang industry Co.,Ltd Wad established
- October, 2003 ---Main products passed the inspection of Zhejiang Province Light Industry Machine Quality Supervision and Inspection Center,past the Province Level Authentication an listed by Govenment Authorities as the new products
- August .2005 ---Jiangsu Fangbang Machinery Co.,Ltd Was established
- October .2005 ---Passed ISO9001:2000 Authentication
- May,2006 ---Zhejiang Fangbang Machiery Co.,Ltd .Was established
- Augus,2006 --- Passed CE Authentication
- July ,2010 --- The Famous Product of Ruian City
- September ,2010 -- The Famous Brand of Ruian City
- August,2011 --- National High&New Technology Enterprise

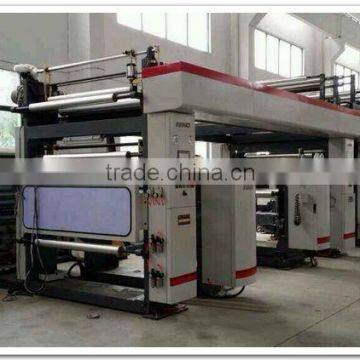

BOPP/PET/PVC/PE Aluminum foil Rotogravure press
BOPP/PET/PVC/PE Aluminum foil Rotogravure press is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP,PET.PVC,PE ,Aluminum foil and paper ,etc
------ Skype: zhezhoutiankong -----
Type | AZJ-8850C | AZJ-81050C | AZJ-81250C |
Max.Width of Web | 850mm | 1050mm | 1250mm |
Max.Printing Speed | 160-180m/min | 160-180m/min | 160-180m/min |
Max.Diameter of Unwind/Rewind | 600mm | 600mm | 600mm |
Internal Diameter of RollCore | 76mm | 76mm | 76mm |
Diameter of Printing Cylinder | 120-300mm | 120-300mm | 120-300mm |
Accuracy of Registration | ± 0.1mm | ± 0.1mm | ± 0.1mm |
Tension Control Range | 3-25kg/Full Width | 3-25kg/Full Width | 3-25kg/Full Width |
Heating Power of Oven | 108kw | 135kw | 162kw |
Total Power | 168kw | 200kw | 231kw |
Weight of Machine | 25000kg | 27000kg | 29000kg |
Overall Dimension | L16000*W3500*H3400mm | L16000*W3700*H3400mm | L16000*W3900*H3400mm |
The Certificate :
Characteristics:
- Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately
- Main motor equipped with frequency converter for speed regulation
- Turret un/rewinding section ,non-stop material splicing
- Unwinding and in-feed section with inverter speed control system and close loop tension control system
- Rewinding and out-feed sectiohn with inverter speed control system and close loop tension control system
- Closed oven and independent heating hot air blowing system.automatic constant temperature system
- Pneumatic impresing system and pneumatic doctor blade system
- Diaphragm-type pneumatic ink auto circulating system
- Inflatable air shaft for unwinding/rewinding material loading
- Printing linear speed and meter counting display
- Shaft less printing cylinder loading device .printing cylinder is fixed by shaft -less air chuck
- Max.Printing Speed :180m/min
- Max.Diamter of Unwind/Rewind: 600mm
~~If you have any interests.Pls contact us freely .
The most competitive price fo you !
Workshop:
Spart parts Room :
Q1.Are you a manufactrer ?
Yes.we have been in provding professional printing and packaging industry over 14 years from 1999
Q2.Do you have stock products to sell
No.We work on OEM order ,That means ; size ,material ,quantity ,design packaging etc.depend on your requests
Q3.What information should I let you know if I want to get a quotation ?
- The size of the products
- The material
- The color
If It is possible ,Please also provide with sample pictures which you need to make ,If not ,we will recommend you some products for reference
If you are interested in our machine .Pls feel free to contact with me :
Zhejiang Fangbang Machinery Co.,Ltd
Add : Qianbu Industrial Area.Xincheng Street .Ruian City .Zhejiang
M.T:+86-18867730098 +86-13587501104
Direct Line: +86-577-65186883
Skype: zhezhoutiankong Wechat : candy663555 Facebook: candy chi
