E Modle Rotogravure Printing Machine From Ruian City
US$ 275,400 - 321,310
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
FangBang
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
E Modle Rotogravure Printing MachineUS$ 275,400 - 321,310MOQ: 1 Set -
Rotogravure Printing Machine /the Max.printing Speed:230m/minUS$ 275,400 - 321,310MOQ: 1 Set
-
Computer Color Register Rotogravure Printing MachineUS$ 275,400 - 321,310MOQ: 1 Set
-
AZJ-B Series High-speed Computerized Color Register Rotogravure Press(seven Vector Motor)NegotiableMOQ: 1 Set
-
AZJ-E Series High-speed(SEVEN VECTOR MOTOR) Computerized Color Register Rotogravure Press(seven Vector Motor)NegotiableMOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
FangBang
Model Number
AZJ-ESeries
Usage
Paper Printer, Other, Paper Printer, Plastic printer
Automatic Grade
Semi-Automatic
Voltage
220V/380V
Gross Power
365KW
Dimensions(L*W*H)
21200*4500*4200
Weight
43500KG
Certification
CE,ISO9001
Warranty
One year
After-sales Service Provided
Engineers available to service machinery overseas
To be the Best Printing&Packaging Manufacture in China
Company introduction:
- 14 years experience in packing industrial
- Appliance is strictly in accordance with CE standard
- Assembly&parts are processed by CNC lathe
- Good after-sale service
- Prompt reply within 24 hours
- Professional&enthusiastic sales team
FangBang Development History:
- August ,1999 ---Ruian.jianshe Packing Equipment Co.,Ltd ,Was established
- April ,2002 ---Shanghai Fangbang industry Co.,Ltd Wad established
- October, 2003 ---Main products passed the inspection of Zhejiang Province Light Industry Machine Quality Supervision and Inspection Center,past the Province Level Authentication an listed by Govenment Authorities as the new products
- August .2005 ---Jiangsu Fangbang Machinery Co.,Ltd Was established
- October .2005 ---Passed ISO9001:2000 Authentication
- May,2006 ---Zhejiang Fangbang Machiery Co.,Ltd .Was established
- Augus,2006 --- Passed CE Authentication
- July ,2010 --- The Famous Product of Ruian City
- September ,2010 -- The Famous Brand of Ruian City
- August,2011 --- National High&New Technology Enterprise

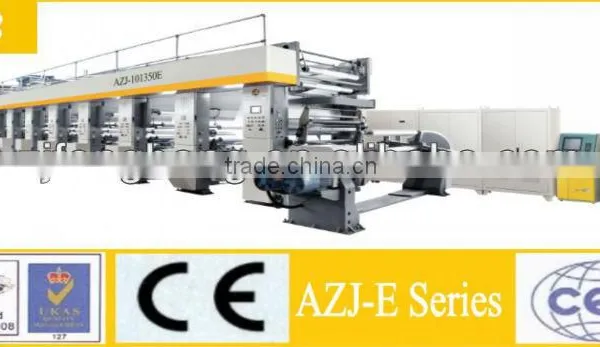

E modle rotogravure printing machine
E modle rotogravure printing machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP,PET.PVC,PE ,Aluminum foil and paper ,etc
------ Skype: zhezhoutiankong -----
| Type | AZJ-8850E | AZJ-81050E | AZJ-81250E |
| Max.Width of Web | 850mm | 1050mm | 1250mm |
| Max.Printing Speed | 230m/min | 230m/min | 230m/min |
| Max.Diameter of Unwind/Rewind | 600mm | 600mm | 600mm |
| Internal Diameter of RollCore | 76mm | 76mm | 76mm |
| Diameter of Printing Cylinder | 180-380mm | 180-380mm | 180-380mm |
| Accuracy of Registration | ± 0.1mm | ± 0.1mm | ± 0.1mm |
| Tension Control Range | 3-25kg/Full Width | 3-25kg/Full Width | 3-25kg/Full Width |
| Steam Heating System | 216kw | 243kw | 270kw |
| Total Power | 304kw | 335kw | 365kw |
| Weight of Machine | 40500kg | 42000kg | 43500kg |
| Overall Dimension | L21200*W4600*H4200mm | L21200*W4800*4200mm | L21200*W4500*H4200mm |

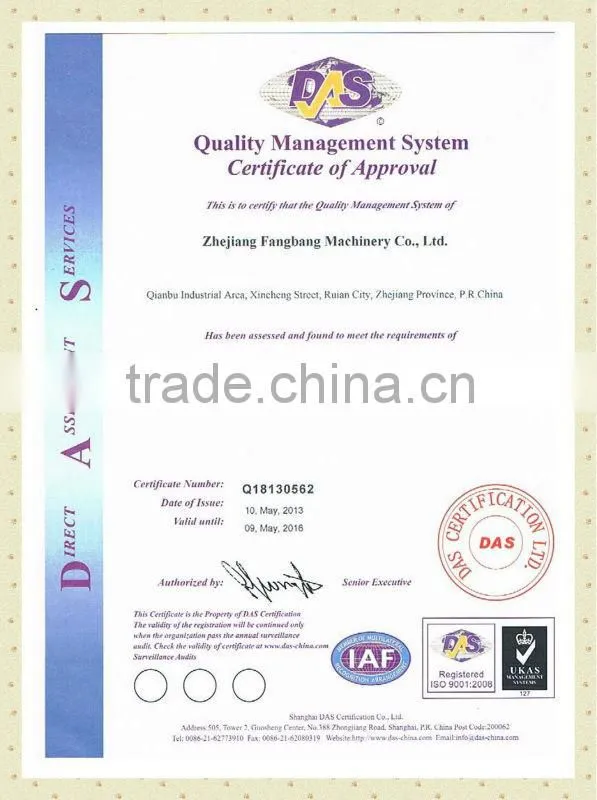

The Certificate :
Characteristics:
- Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately
- Main motor equipped with frequency converter for speed regulation
- Unwinding tension adopts automatic tension controller and magnetic powder brake
- Rewinding adopts torque motor,double-station automatic turret
- Closed oven and independent heating hot air blosing system ,automatic constant temperature system
- Pneumatic impressing system and pneumatic doctor blade system
- Diaphragm-type pneumatic ink auto circulating system
- Printing linear speed and meter counting display
- Shaft less printing cylinder loading device .Printing cylinder is fixed by shaft-less air chuck.
- Max.Printing Speed :230m/min
- Max.Diamter of Unwind/Rewind: 600mm
~~If you have any interests.Pls contact us freely .
The most competitive price fo you !
Workshop:
Spart parts Room :
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
1999
Factory Size
3,000-5,000 square meters
Total Employees
51 - 100 People
