AZJ-Aseries Computerized Color Register Rotogravure Press

Specifications

This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing p

Application:
This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc.

Technical Data:

Type	AZJ-8650A	AZJ-8850A	AZJ-81050A
Effective Printing Width	600mm	800mm	1000mm
Max.Width of Web	650mm	850mm	1050mm
Max.Printing Speed	130m/min	130m/min	130m/min
Max.Mechanical Speed	150 m/min	150 m/min	150 m/min
Max.Diameter of Unwind/Rewind	600mm	600mm	600mm
Inside Diameter of Roll Core	76mm	76mm	76mm
Diameter of Printing Cylinder	120-300mm	120-300mm	120-300mm
Accuracy of Computer Registration	±0.1mm	±0.1mm	±0.1mm
Tension Control Range	3-25kg/Full Width	3-25kg/Full Width	3-25kg/Full Width
Heating Power of Oven	72Kw	96Kw	120Kw
Heating Power of Oven	109Kw	136Kw	160.5Kw
Weight of Machine	18000kg	20000kg	22000kg
Overall Dimension	13300*3200*2500MM	13300*3400&2500MM	13300*3600*2500MM

Fangbang is continuously seeking for development of their products. For this reason.we reserves the right to supply the improved product without advance notice.

Performance and Features

1,Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color
register quickly and accurately.
2,Main motor equipped with frequency converter for speed regulation
3,Unwinding tension adopts automatic tension controller and magnetic powder brake.
4,Rewinding adopts torque motor, double-station automatic turret.
5,Closed oven and independent heating hot air blowing system, automatic constant temperature system.
6,Pneumatic impressing system and pneumatic doctor blade system
7,Diaphragm-type pneumatic ink auto circulating system
8,Inflatable air shaft for unwinding / rewinding material loading
9,Printing linear speed and meter counting display
10,Shaft less printing cylinder loading device, Printing cylinder is fixed by shaft-less air chuck.
11,Option: web video

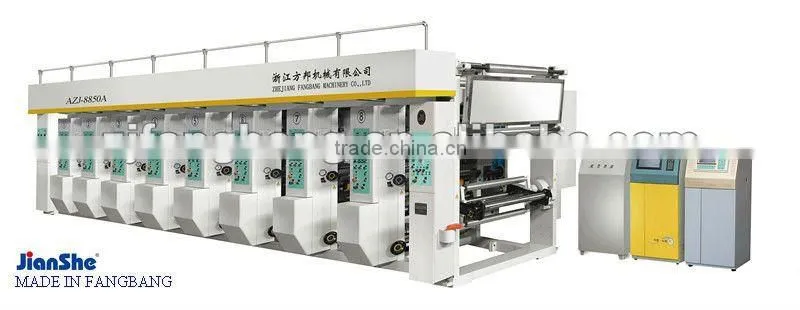

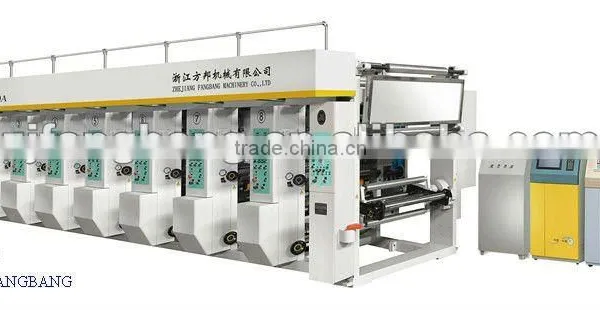

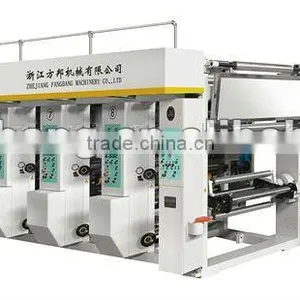

MACHINE PHOTO:

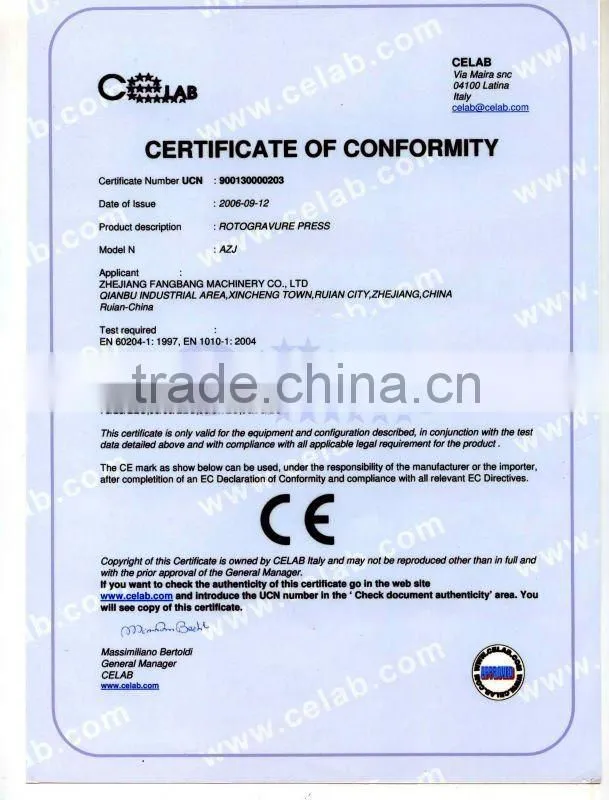

MACHINE CERTIFICATION:
