Home > Packaging & Printing > Machinery for Packaging Supplies > Bag Making Machine > Bag-making Machine

Bag-making Machine

Name: Bag-making Machine
Brand: JIANSHE
SKU: 114380945
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Machine Type:

Sealing Machine

Bag Type:

Other, middle sealing

Material:

Other, plastic-plastic / paper-plastic by laminated film

Contact Supplier Request Quote Chat Now

Zhejiang Fangbang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Machine Type Sealing Machine

Bag Type Other, middle sealing

Material Other, plastic-plastic / paper-plastic by laminated film

Computerized Yes

Place of Origin Zhejiang, China

Brand Name JIANSHE

Model Number ZD-ZFD series

Specifications

1:PLC CONTROL SYSTEM
2:AC inverter constant speed auto feeding.

Application: This machine suitable produce Middle sealing pouch,edge sealing pouch
and four side sealing pouch from material different kinds of laminated film.

1. Whole machine controlled by central PLC control system with man-machine.More
stable performance, easy for operation and maintenance. Chinese and English
interface language can be shifted easily.
2. Constant auto-tension control for unwinding, LPC edge alignment, AC inverter
constant speed auto material feeding.
3. Imported double servo-motor material dragging control system.
4. Main motor for up-down sealing and pressing equipped with inverter.
5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting
in man-machine interface.
6. Equipped with Pneumatic multi-function auto punching device, trim cutting and auto
rewinding and static eliminator
7. Temperature adjustment range: 0~300°C .
8. Counter: quantity, batch accumulation, pre-set available.
9. Operation Method: by length fixation control and/or by photocell tracking control.
10. Punching device: working rhythm can pre-set as continuous, interval or stop, punching
time can be pre-set.
11. Material Skip Feeding: one to six times available.
12. Batch Conveying Function available, the quantity of batch can be preset.

specification:

type	ZD-ZFD400
Max.diameter of roll material	Φ600MM
Max. width of roll material	850MM
Max. capacity	150PCS/MIN
chanical speed	APPROX. 35 M/MIN
Max.bag-maiing width	400MM
bag-making width	50-2400MM
total power	25KW
weight of machine	4500KG
overall dimension	1055017001830MM

REMARK:real operation speed is variable due to different pouch shape ,material and size

Fangbang is continoursly seeking for development of their products. for this reason,fangbang reserves the right to supply the improved product without advance notice.

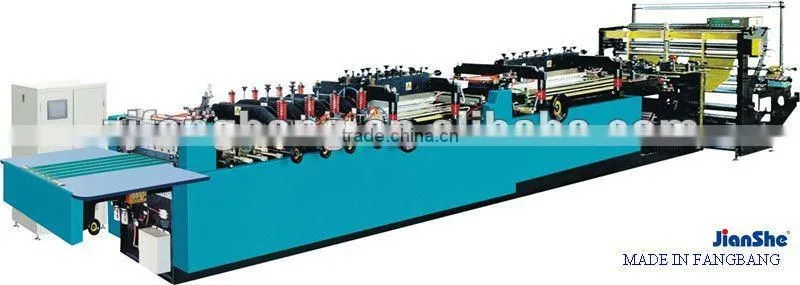

MACHINE PHOTO

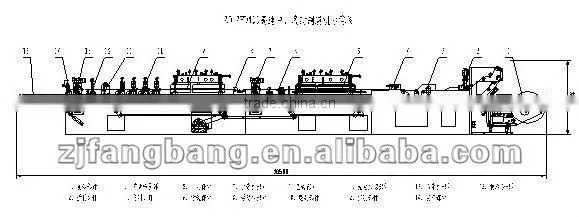

MACHINE DIAGRAM

CE CERTIFICATION :
