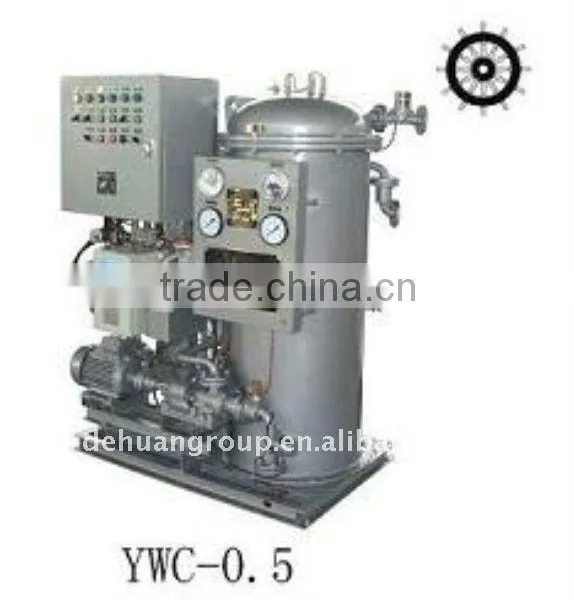

YWC-0.5 Oily Water Separator

YWC-0.5 Oily Water Separator thumbnail-1
YWC-0.5 Oily Water Separator photo-1
US$ 800 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Dehuan
Model Number:
YWC-0.5 Oily Water Separator
Contact Supplier Request Quote Chat Now
Shanghai Dehuan Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Dehuan
Model Number YWC-0.5 Oily Water Separator

Specifications

YWC-0.5 Oily Water Separator
Rating/Max Capacity(m3/h):YWC-0.5.etc
CCS Certificate
GL Certificate
USCG Certificate



YWC-0.5 Oily Water Separator


1.YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤15ppm. This separator is the high-tech newest product which can effectively dispose all kinds of fluids in bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.


2.YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT.The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from YWC can meet any standards of Environment Bureau in international standard



3.Main technical table





YWC-0.25

YWC-0.50

YWC-1.00

YWC-1.50

YWC-2.00

YWC-2.50

YWC-3.00

YWC-4.00

YWC-5.00

RATING/MAX CAPACITY (m3)

0.25/0.31

0.5/0.62

1.0/1.25

1.5/1.87

2/2.25

2.5/3.12

3/3.75

4.0/5.0

5/6.25

POWER OF PUMP (kw)

0.75

1.10

1.10

1.10

2.20

2.20

3.00

3.00

3.75

ELECTRIC HEATER POWER (kw)

1

3

option

option

option

-

-

-

-

STEAM HEATER (m2/kw)

-

-

1/30

1/45

2/60

2/75

3/90

4/120

5/150

15ppm BILGE ALARM

included

included

included

included

included

included

included

included

included

BASE(CHANNEL STEEL) (mm)

1000*600

1100*690

1050*1080

1100*1130

1900*1120

1900*1120

1700*1500

2280*1700

2590*2000

HEIGHT (mm)

1320

1460

1500

1660

1700

1900

2020

1820

1900

DRY/WET WEIGHT

300/450

600/800

800/860

1060/1810

1260/2260

1500/2800

1800/3200

2100/3900

2500/4600

APPLICABLE SHIP VESSEL (DWT)

<1000

1000∼5000

5000∼10000

10000∼30000

30000∼50000

50000∼100000

100000∼200000

100000∼300000

>300000
