Product Details
Place of Origin: | Shandong, China | Brand Name: | Yuchai | Model Number: | YC35SR |
Condition: | New | Moving Type: | Crawler Excavator | Operating Weight: | 3860kg |
Bucket capacity: | 0.12m3 | Maximum Digging Height: | 5100mm | Maximum Digging Depth: | 3120mm |
Machine Weight: | 3860kg | Max Digging Radius: | 5460mm | Rated Speed: | 3.5~4.5km/h |
Certification: | CE, ISO9001: 2000 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Most popular Japan Mini Excavator Mitsubishi O and K Excavator

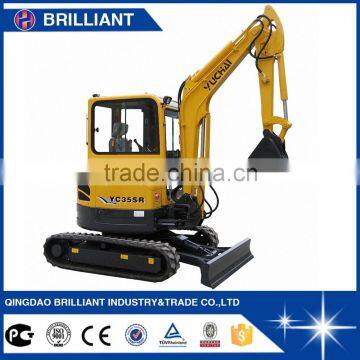

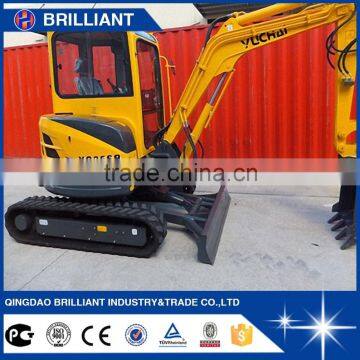

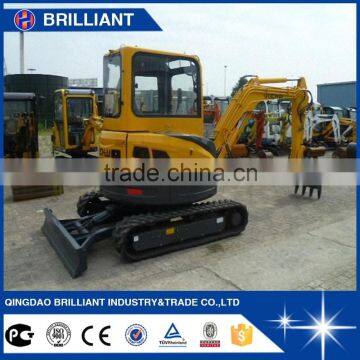

YC35SR hydraulic excavator has beautiful design, its platform can rotate 360 degrees. The excavator is equipped with rubber track, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.

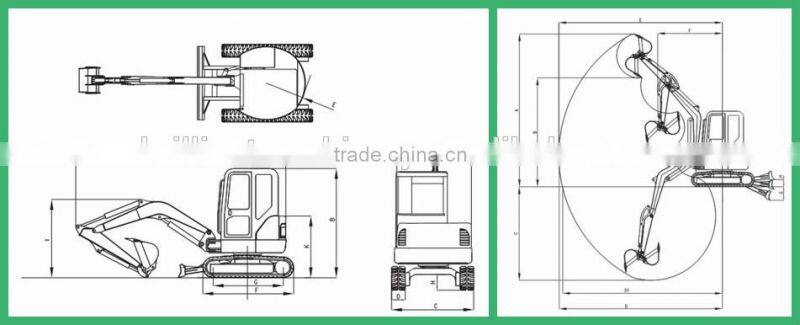

Basic Dimension | |||
Code | Item | Units | YC35SR |
Machine Weight | Kg | 3860 | |
Volume of Bucket | m3 | 0.12 | |
Engine Model | Kubota V2403 | ||
Power of engine | KW/rpm | 29.2/2200 | |
A | Overall Length (trans pos) | mm | 4650 |
B | Overall Height (trans pos) | mm | 2550 |
C | Width of Undercarriage | mm | 1800 |
D | Width of Track | mm | 300 |
E | Maximum Platform Tail Turning Radius | mm | 900 |
F | Length of Track | mm | 2100 |
G | Sprocket to idler centres | mm | 1620 |
H | Dist. between Undercarriage and Ground | mm | 1580 |
J | Width of Platform | mm | 1696 |
L | Dist. Between Platform and Ground | mm | 1425 |
Operation Hydraulic Pressure | mpa | 21 | |
Travelling Speed | Km/h | 3.5~4.5 | |
Swing Speed of Platform | rpm | 29 | |
Cabin | |||
Canopy | |||
Range of Operation | |||
Code | Item | Units | YC35SR |
A | Maximum Digging Height | mm | 5100 |
B | Maximum Dumping Height | mm | 3630 |
C | Maximum Digging Depth | mm | 3120 |
D | Maximum Digging Radius | mm | 5460 |
D1 | Maximum Depth For Bulldozing | mm | 2948 |
E | Maximum Digging Dist.of Ground | mm | 5340 |
F | Minimum Platform Tail Turning Radius | mm | 2210 |
G | Maximum Digging Force | kn | 25.7 |
H | Maximum Height for Bulldozing | mm | 389 |
What is YC18SR's MOQ?
- 1 set.
- It is optional, any color and any pattern!
Why the price is difference for the same model?
- It depends on the engine, tyre, discharge height etc, we can make it according to your request.
Model | YC08-8 | YC15-8 | YC18-8 | YC18SR | YC25-8 | YC25SR |
Machine weight | 1030kg | 1625kg | 1725kg | 1850kg | 3080kg | 2800kg |
Bucket capacity | 0.02m3 | 0.04m3 | 0.05m3 | 0.05m3 | 0.07m3 | 0.08m3 |
Engine power | 7.5kw | 14.2kw | 14.7kw | 14.7kw | 22.8kw | 20.7kw |
Max.digging height | 2743mm | 2910mm | 3270mm | 3360mm | 4208mm | 4420mm |
Max.digging depth | 1414mm | 1800mm | 2010mm | 2105mm | 2613mm | 2630mm |
Max.digging radius | 2831mm | 3520mm | 3750mm | 4060mm | 4625mm | 4930mm |
Max.dumping height | 1951mm | 2050mm | 3270mm | 2330mm | 2842mm | 2970mm |
Model | YC35-8 | YC35SR | YC50-8 | YC55-8 | YC85-8 | YC135-8 |
Machine weight | 3740kg | 3850kg | 5240kg | 5710kg | 8100kg | 13300kg |
Bucket capacity | 0.12m3 | 0.12m3 | 0.18m3 | 0.2m3 | 0.32m3 | 0.52m3 |
Engine power | 31.2kw | 31.2m3 | 31.2kw | 36.9kw | 61.6kw | 82kw |
Max.digging height | 5200mm | 5100mm | 5684m3 | 5700mm | 7140mm | 9680mm |
Max.digging depth | 3535mm | 3120mm | 3625mm | 3935mm | 4160mm | 6645mm |
Max.digging radius | 5590mm | 5460mm | 5950mm | 6380mm | 6630mm | 9935mm |
Max.dumping height | 3680mm | 3630mm | 4094mm | 3855mm | 5100mm | 6770mm |
