Most Popular 0.07m3 Bucket Capacity New Mini Excavator YC25-8 With High Quality and Cheap Price
US$ 15,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Yuchai
Model Number:
YC25-8
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4 Ton Excavator Bucket Size 0.12m3 With Excavator PartNegotiableMOQ: 1 Set -
3.5 Ton Excavator Ripper Excavator Crusher Bucket (Zero Tail)NegotiableMOQ: 1 Set
-
Most Popular Japan Mini Excavator Mitsubishi O and K ExcavatorUS$ 15,000 - 30,000MOQ: 1 Set
-
Most Popular 5 Ton Crawler Excavator Log Grapple ExcavatorNegotiableMOQ: 1 Set
-
Hot Sale! 8t Top Brand Mini Walking Excavator for Sale China EngineUS$ 50,000 - 80,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Yuchai
Model Number
YC25-8
Condition
New
Moving Type
Crawler Excavator
Operating Weight
2820kg
Bucket capacity
0.07m3
Maximum Digging Height
4205mm
Maximum Digging Depth
2610mm
Machine Weight
2820kg
Max Digging Radius
4610mm
Rated Speed
1.5-2.6km/h
Certification
CE, ISO9001: 2000
After-sales Service Provided
Engineers available to service machinery overseas
Most popular 0.07m3 bucket capacity new mini excavator YC25-8 with high quality and cheap price
Product Description
>> Products Features
1. Machine Weight: 2820kg
2. Rated Power: 24kw/2200rpm (Perkins)----22.8kw/2200rpm (Kubota)
3. Bucket Capacity: 0.07m3
4. Standard Bucket width: 400mm
5. Famous imported engine is optional (Yanmar, Kubota, Perkins and so on)
2. Rated Power: 24kw/2200rpm (Perkins)----22.8kw/2200rpm (Kubota)
3. Bucket Capacity: 0.07m3
4. Standard Bucket width: 400mm
5. Famous imported engine is optional (Yanmar, Kubota, Perkins and so on)
YC25-8 hydraulic excavator has beautiful design, its platform can rotate 360 degrees. The excavator is equipped with rubber track, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.
>> Products Description
| Basic Dimension | |||||
| Code | Item | Units | YC25-8 | ||
| Machine Weight | Kg | 2820 | |||
| Volume of Bucket | m 3 | 0.07 | |||
| Power of engine | KW/rpm | 24/2200 (Perkins) 22.8/2200(Kubota) |
|||
| A | Overall Length (trans pos) | mm | 4510 | ||
| B | Overall Height (trans pos) | mm | 2395 | ||
| C | Width of Undercarriage | mm | 1450 | ||
| D | Width of Track | mm | 300 | ||
| E | Maximum Platform Tail Turning Radius | mm | 1345 | ||
| F | Length of Track | mm | 1935 | ||
| G | Sprocket to idler centers | mm | 1261 | ||
| H | Dist. between Undercarriage and Ground | mm | 270 | ||
| J | Width of Platform | mm | 1444 | ||
| L | Dist. Between Platform and Ground | mm | 555 | ||
| Operation Hydraulic Pressure | mpa | 21 | |||
| Travelling Speed | Km/h | 1.5-2.6 | |||
| Swing Speed of Platform | rpm | 11-12.5 | |||
| Cabin | |||||
| Canopy | |||||

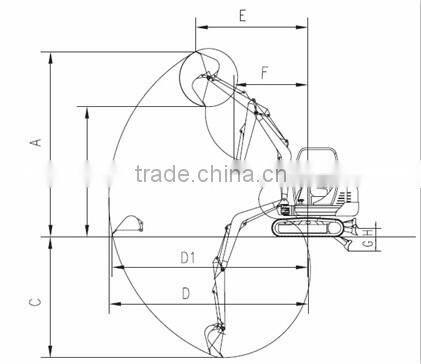

| Range of Operation | |||||
| Code | Item | Units | YC25-8 | ||
| A | Maximum Digging Height | mm | 4205 | ||
| B | Maximum Dumping Height | mm | 2840 | ||
| C | Maximum Digging Depth | mm | 2610 | ||
| D | Maximum Digging Radius | mm | 4610 | ||
| D1 | Maximum Depth For Bulldozing | mm | 372 | ||
| E | Maximum Height Digging Radius | mm | 2957 | ||
| F | Minimum Platform Tail Turning Radius | mm | 1856 | ||
| H | Maximum Height for Bulldozing | mm | 262 | ||
