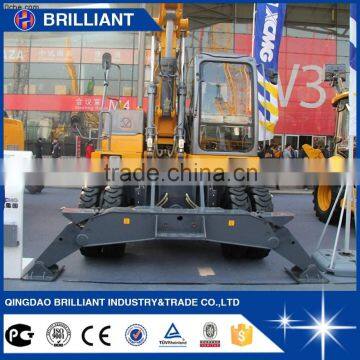

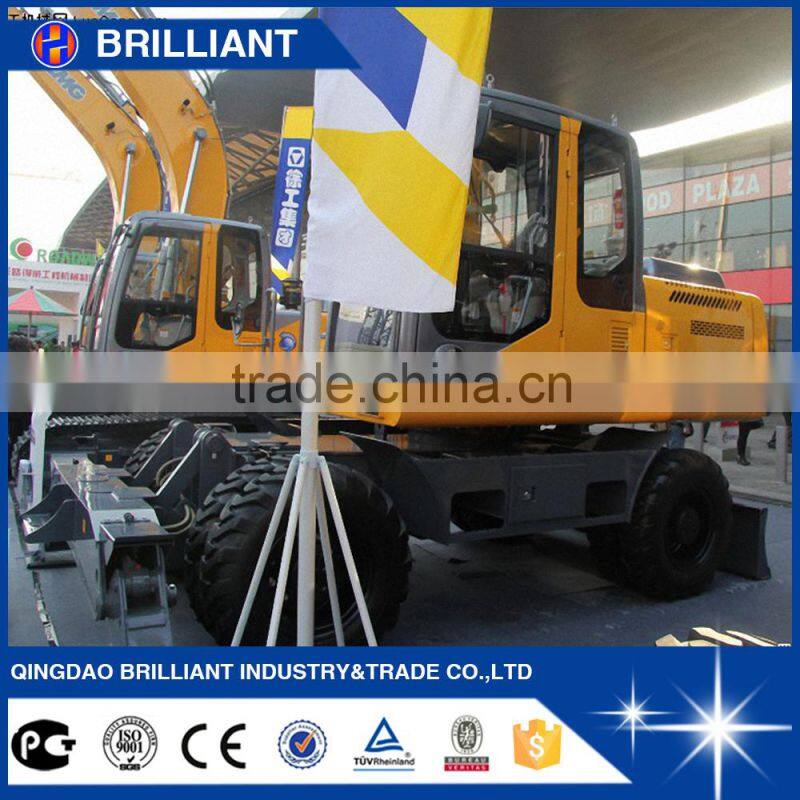

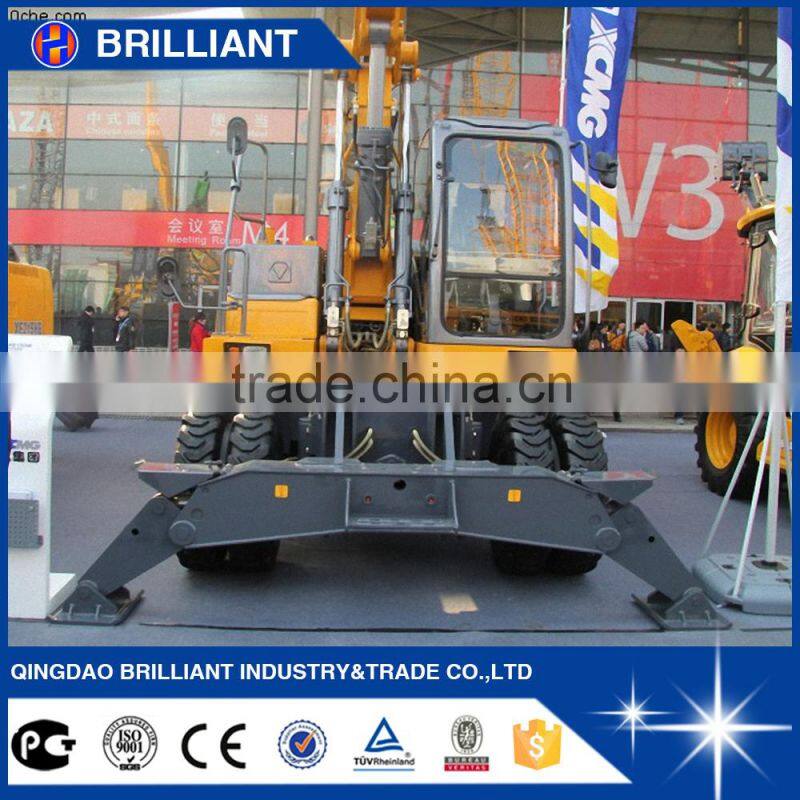

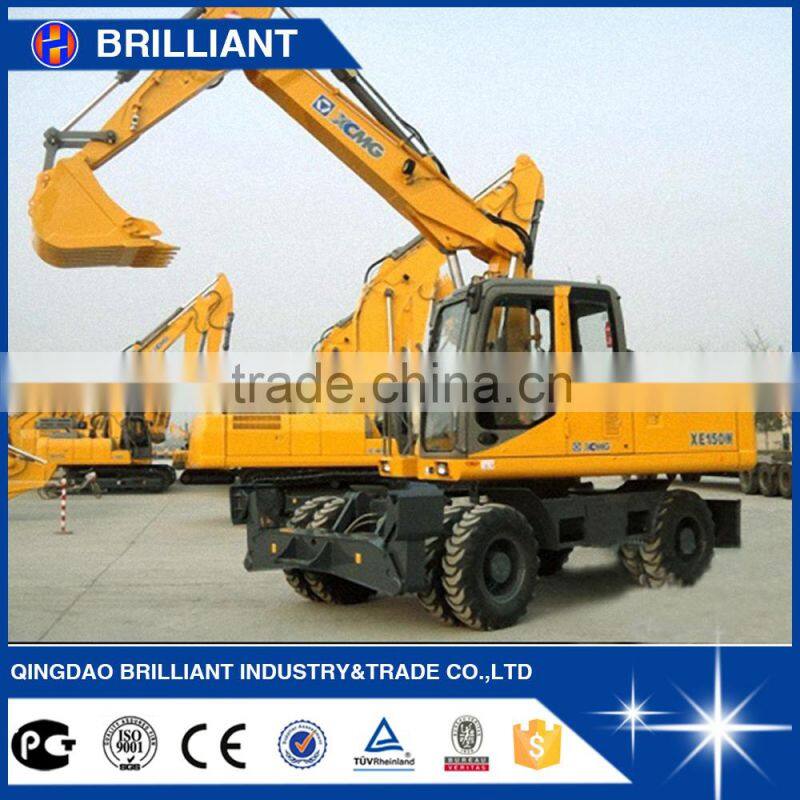

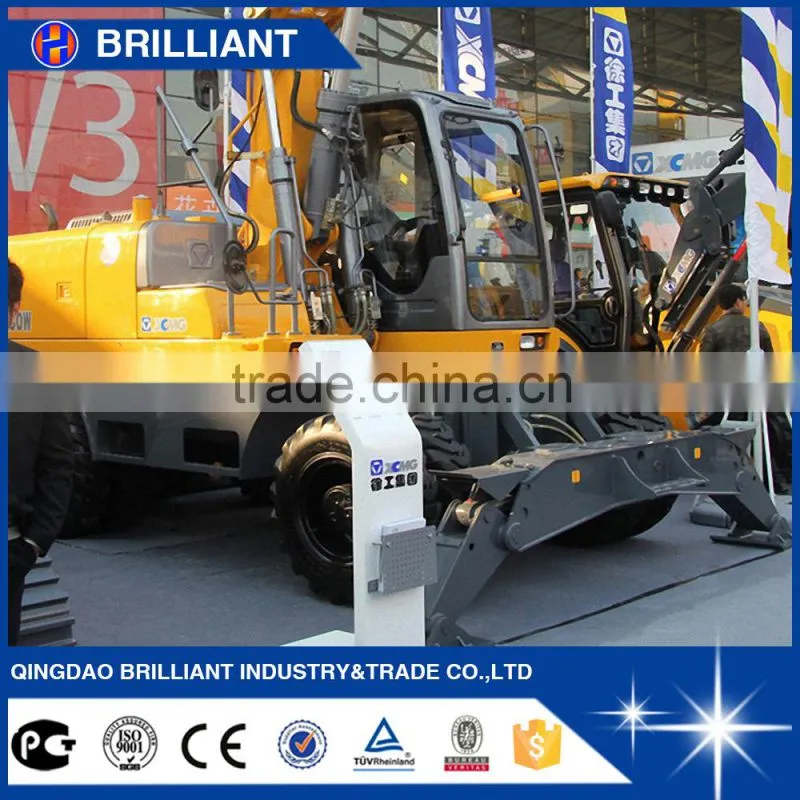

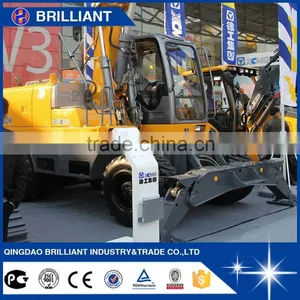

Good Quality 15t Excavator Machine Made in China
Complete Vehicle Mass:15.3t
2Standard Bucket Capacity:0.58m3
Rated Engine Power:104kW
Hydraulic Pump Flow:2×160L/min
Working Pressure:31.4/35.3Mpa
Travelling Speed:30/11/3.5km/h
Gradeability:70%
1. Imported engine of environment friendly and efficient low-consumptions for excavator
2. Complete set of imported hydraulic components, excellent control, smooth operation
3. Imported radiator, adapt super load and continuous operation
4. Excavator with High quality key parts, the chassis configuration of international quality
5. Powerful digging force, slew force and traction force
6. Completed closed PROS / FOPS cab, good vision and protection structure, import luxury seats, safe and comfortable
7. Fast full-open style hood, easy maintenance excavator
8. Anti-collision structure of cast iron weight, the effective protection of turntable and hood
9. Optional hydraulic breaker piping, to facilitate the crushing operation
10. GPS satellite positioning and remote monitoring system.

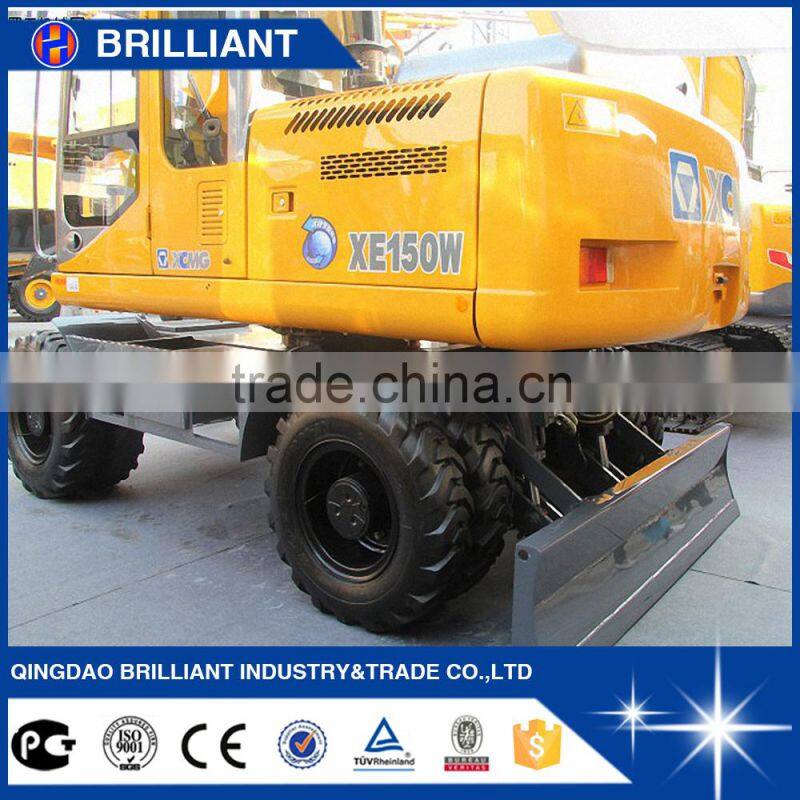

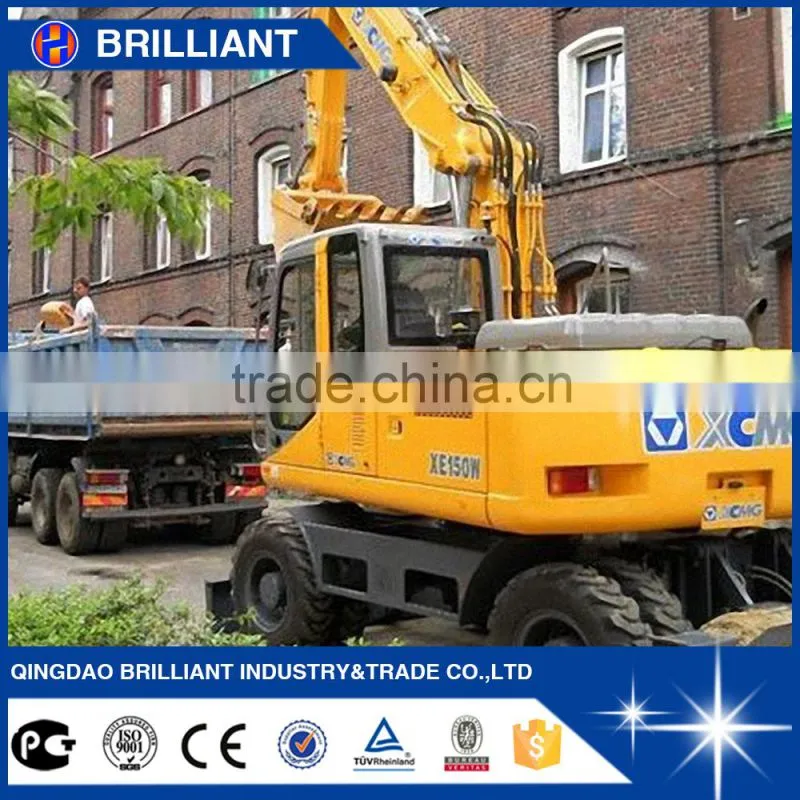

| Model | Unit | XE150W | ||
| Operating weight | kg | 15318 | ||
| Standard bucket capacity | m³ | 0.58 | ||
| Engine | Engine Model | QSB4.5 | ||
| Direct injection | √ | |||
| Four strokes | √ | |||
| Water cooling | √ | |||
| Turbo charged | √ | |||
| Air to air intercooler | √ | |||
| Rated power/speed | kw/rpm | 104/2000 | ||
| Max. torque/speed | N.m | 586 | ||
| Displacement | L | 4.5 | ||
| The main performance | Travel speed | km/h | 2.73 | |
| Swing speed | r/min | 13.7 | ||
| Max. gradeability | % | 70 | ||
| Bucket digging force | kN | 90 | ||
| Arm digging force | kN | 65 | ||
| Max.traction force | kN | 136 | ||
| Hydraulic system | Main pump | 2 | ||
| Rate flow of main pump | L/min | 2*160 | ||
| Max pressure of prime relief valve | MPa | 31.4/34.3 | ||
| Oil capacity | Hydraulic tank capacity | L | 220 | |
| Overall dimensions | A Overall length | mm | 6485 | |
| B Overall width | mm | 2555 | ||
| C Cab height | mm | 3160 | ||
| D Ground clearance of counterweight | mm | 1230 | ||
| E Min.ground clearance | mm | 360 | ||
| F Tail swing radius | mm | 2300 | ||
| G Wheel base | mm | 2800 | ||
| H Tread Width | mm | 1920 | ||
| I Undercarriage width | mm | 2495 | ||
| J Distance from swing-centre to front axle | mm | 1700 | ||
| K Engine cover height | mm | 2130 | ||

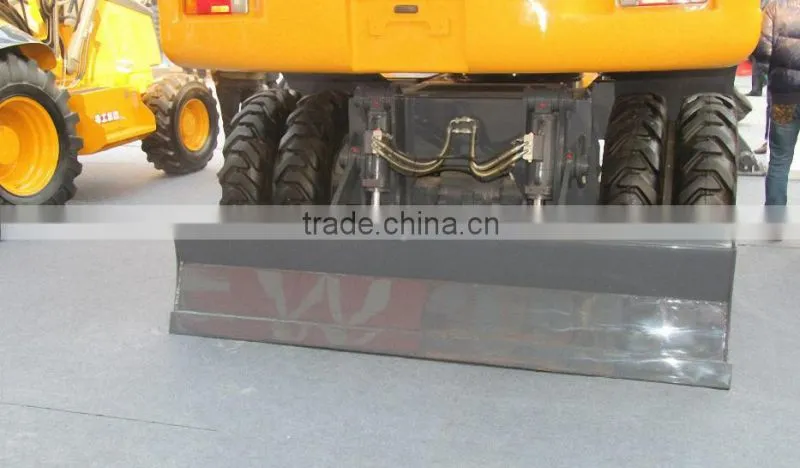

| L Max.dozer cutting depth | mm | 112 | ||
| Working range | A Max digging radius | mm | 8295 | |
| B max digging reach on ground | mm | 8085 | ||
| C Max Digging height | mm | 9150 | ||
| D Max dumping height | mm | 6680 | ||
| E Max digging depth | mm | 5040 | ||
| F Max leveling digging depth of 8feets | mm | 4825 | ||
| G Max dozer lifting height | mm | 515 | ||
1.Strong configuration, remarkable performance, strong power, high efficiency
2.Advanced hydraulic system
3.Good sturdiness and durability, high reliability, strengthening intensity of chassis and frame
4.Standard configuration with reinforced boom and arm
5.Increasing wear resistance of bucket
6.Strengthening upper slewing platform
7.Heavy counterweight
Compared with the same class machine type, the quality of the counterweight improves obviously, the stability of the machine is better.
8.Bush
The hinge pin joints of the boom and arm adopts high wear resistant and intense steel bush, which is durable.
9.Operating environment
Comfortable and safe cab with wide view
Easy control of operating handles
Intelligent operation and display
Convenient and fast maintenance
Qingdao Brilliant Industry & Trade Co., Ltd.
With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.
Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services
SGS Serial NO. | QIP-ASI145346 |
Audit Date | 2-Jul-14 |
Company Name | Qingdao Brilliant Industry & Trade Co., Ltd. |
Business Type | Manufacturer |
Year of Establishment | Mar 14,2014 |
Registered Capital | 83468.27 USD |
Products | Excavator, Wheel Loader, Bulldozer, Forklift and so on |
Number of Employees | 5~10 |
Main Markets | Africa, Asia,Europe,South America |
Sales Personnel: Grace
Tel: 0086-532-80907506
Fax:0086-532-82801885
Skype:brilliantmachinerygrace
Any comment&question,please contact with us freely!
We will try our best to meet your request!
Thanks for your valuable time!
