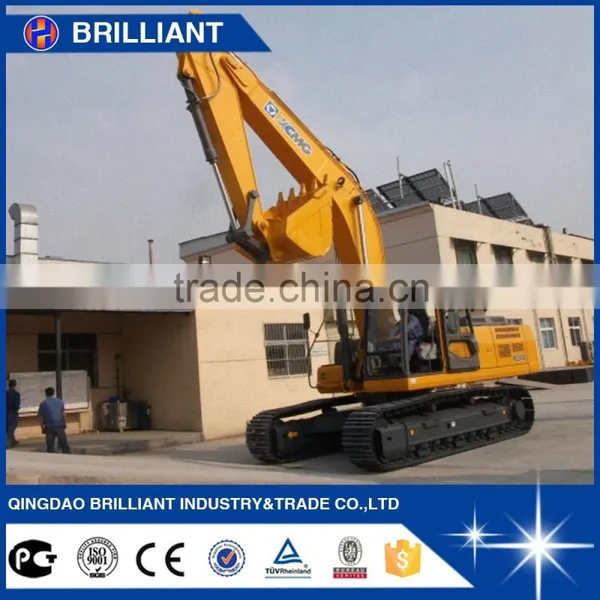

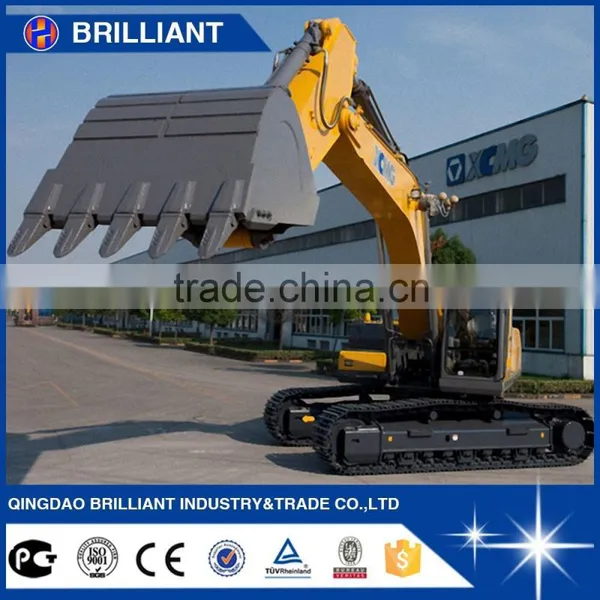

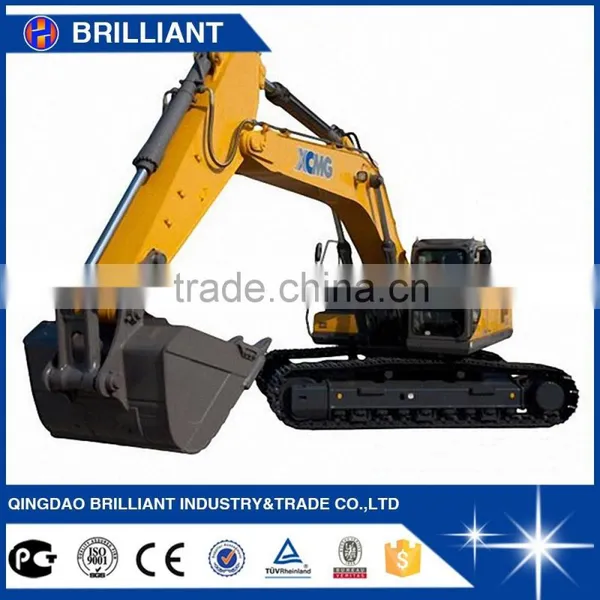

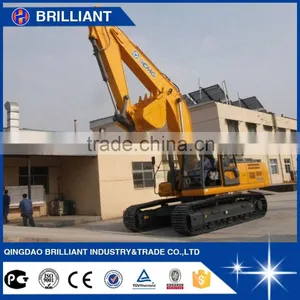

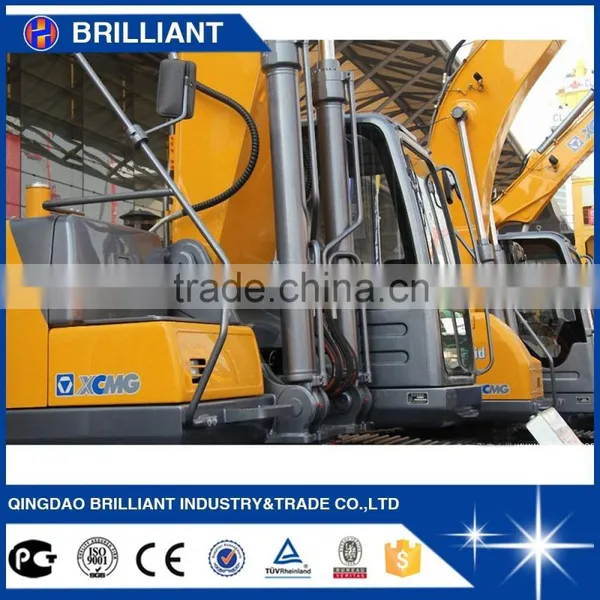

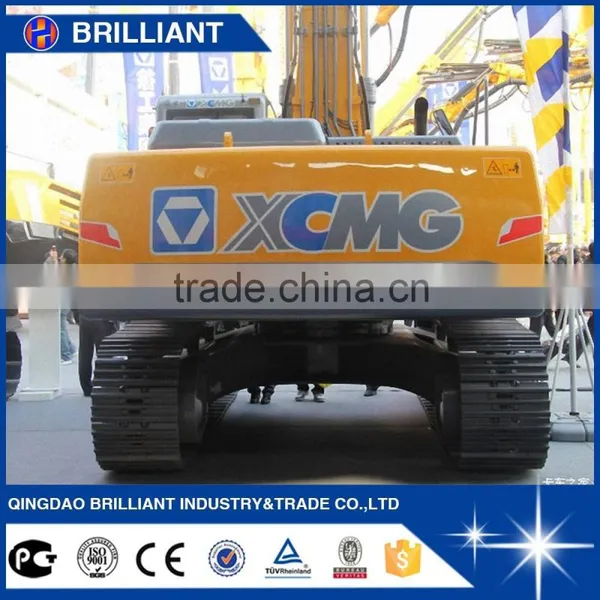

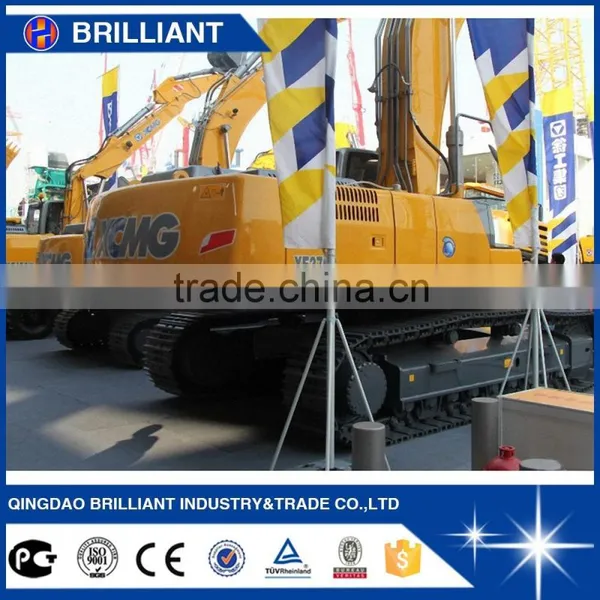

Chinese Cheap Mini 40 ton Excavator For Sale Price (XE370CA)
>> Products Features
2. Complete set of imported hydraulic components, excellent control, smooth operation
3. Imported radiator, adapt super load and continuous operation
4. Excavator with High quality key parts, the chassis configuration of international quality
5. Powerful digging force, slew force and traction force
6. Completed closed PROS / FOPS cab, good vision and protection structure, import luxury seats, safe and comfortable
7. Fast full-open style hood, easy maintenance excavator
8. Anti-collision structure of cast iron weight, the effective protection of turntable and hood
9. Optional hydraulic breaker piping, to facilitate the crushing operation
10. GPS satellite positioning and remote monitoring system.
Model |
Unit |
XE370CA |
|
Operating weight |
kg |
36600 |
|
Standard bucket capacity |
m3 |
1.4~1.8 |
|
Engine |
Engine Model |
|
ISUZU AA-6HK1XQP |
Direct injection |
|
√ |
|
Four strokes |
|
√ |
|
Water cooling |
|
√ |
|
Turbo charged |
|
√ |
|
Air to air intercooler |
|
√ |
|
No. of cylinders |
|
6 |
|
Rated power/speed |
kw/rpm |
184/2000 |
|
Max. torque/speed |
N.m |
872.8/2000 |
|
Displacement |
L |
7.79 |
|
The main performance |
Travel speed |
km/h |
5.4/3.2 |
Swing speed |
r/min |
9.7 |
|
Max. gradeability |
|
≥35 |
|
Ground pressure |
kPa |
66.6 |
|
Max.Bucket digging force |
kN |
242 |
|
Max.arm crowd force |
kN |
183 |
|
Max.traction force |
kN |
285 |
|
Hydraulic system |
Main pump |
|
2 Plunger pump |
Rate flow of main pump |
L/min |
2×280 |
|
Max pressure of prime relief valve |
MPa |
31.5/34.3 |
|
Max pressure of travel system |
MPa |
34.3 |
|
Max pressure of swing system |
MPa |
27.5 |
|
Max pressure of pilot system |
MPa |
3.9 |
|
Oil capacity |
Fuel tank capacity |
L |
630 |
Hydraulic tank capacity |
L |
320 |
|
Engine lubrication |
L |
28 |
|
Overall dimensions |
A Overall length |
mm |
11246 |
B Overall width |
mm |
3190 |
|
C Overall height |
mm |
3350 |
|
D Overall width of upperstructure |
mm |
2960 |
|
E Track length |
mm |
5035 |
|
F Overall width of undercarriage |
mm |
3190 |
|
G Crawer width |
mm |
600 |
|
H Track length on ground |
mm |
4040 |
|
I Crawer gauge |
mm |
2590 |
|
J Clearance under counter weight |
mm |
1197 |
|
K Ground clearance |
mm |
500 |
|
L Min.tail swing radius |
mm |
3450 |
|
Working range |
A Max. digging height |
mm |
10123 |
B Max. dumping height |
mm |
7275 |
|
C Max. digging depth |
mm |
6927 |
|
D 8inch horizonal digging depth |
mm |
6954 |
|
E Max. vertical wall digging depth |
mm |
6545 |
|
F Max. digging reach |
mm |
10470 |
|
G Min. swing radius |
mm |
4424 |
|
Qingdao Brilliant Industry & Trade Co., Ltd.
With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.
Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services.

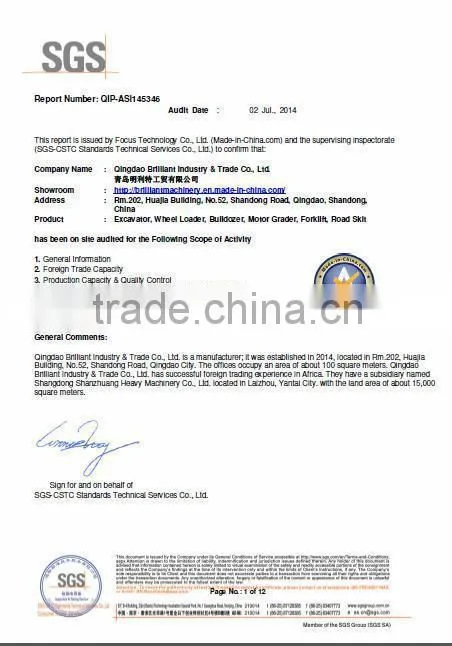

| SGS Serial NO. | QIP-ASI145346 |
| Audit Date | 2-Jul-14 |
| Company Name | Qingdao Brilliant Industry & Trade Co., Ltd. |
| Business Type | Manufacturer |
| Year of Establishment | Mar 14,2014 |
| Registered Capital | 83468.27 USD |
| Products | Excavator, Wheel Loader, Bulldozer, Forklift and so on |
| Number of Employees | 5-10 |
| Main Markets | Africa, Asia,Europe,South America |
