XCMG 1 m3 Hydraulic Grab Excavator Track Chain Excavator( 21500kg, XE215C)
1. The imported Isuzu engine with original packing has strong power, and can meet the requirements of high-efficient work.
2. Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
3. Low emission meets the Europe II standard.
4. The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
5. The adoption of the advanced turbo charging technique increases the highland adaptability of the machine.
6. Automatic preheating system improves the working capacity in the low temperature.
7. Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
8. Restart prevention system effectively avoids the mis-operation, and improve s the use security of the machine.
| Model | XE215C | ||
| Bucket capacity | m³ | 0.91 | |
| Standard bucket width | mm | 1186 | |
| Operating weight | kg | 2,1500 | |
| Dimension (in transportation) | Overall length | mm | 9,520 |
| Overall width | mm | 2,990 | |
| Overall height | mm | 2,985 | |
| Min. ground clearance | mm | 485 | |
| Engine | Model | ISUZU BB-6BG1TRP | |
| Total displacement | L | 6.494 | |
| Rated output power | KW/rpm | 106.5/1950 | |
| Digging performance | Max. digging height | mm | 9,640 |
| Max. dumping height | mm | 6,800 | |
| Max. digging depth | mm | 6,655 | |
| Max. vertical digging depth | mm | 5,695 | |
| Max. digging radius | mm | 9,925 | |
| Boom deflection angle: left/right | ° | ||
| Min. slew radius | mm | 3,530 | |
| Min. rear slew radius | mm | 2,750 | |
| Bucket digging force | kn | 138 | |
| Track type | Steel | ||
| Track width | mm | 600 | |
| Travel system | Track overall length | mm | 4,255 |
| Wheel base | mm | 3,462 | |
| Track gauge | mm | 2,390 | |
| Travel speed (Gear I/II) | km/h | 5.5/3.5 | |
| Gradeability | % | 70 | |
| Slew speed | rpm | 13.3 | |
| Bulldozing plate | Bulldozing plate (width) | mm | |
| Bulldozing plate (height) | mm | ||
| Lifting distance (GL up/down) | mm | ||
| Hydraulic pump type | Piston pump×2 | ||
| Fuel tank capacity | L | 360 | |
| Hydraulic oil tank capacity | L | 220 | |
1.Strong configuration, remarkable performance, strong power, high efficiency
2.Advanced hydraulic system
3.Good sturdiness and durability, high reliability, strengthening intensity of chassis and frame
4.Standard configuration with reinforced boom and arm
5.Increasing wear resistance of bucket
6.Strengthening upper slewing platform

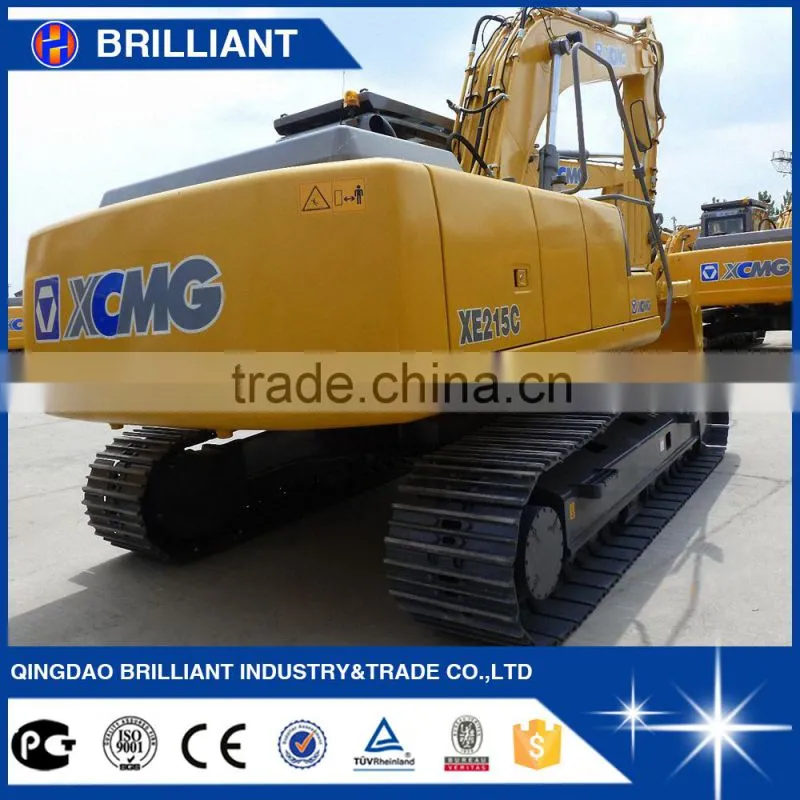

7.Heavy counterweight
Compared with the same class machine type, the quality of the counterweight improves obviously, the stability of the machine is better.
8.Bush
The hinge pin joints of the boom and arm adopts high wear resistant and intense steel bush, which is durable.
9.Operating environment
Comfortable and safe cab with wide view
Easy control of operating handles
Intelligent operation and display
Convenient and fast maintenance
