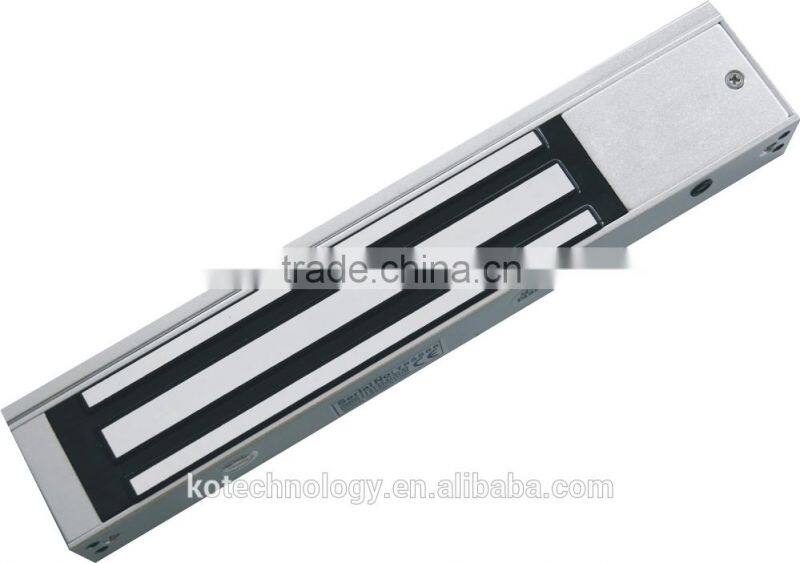

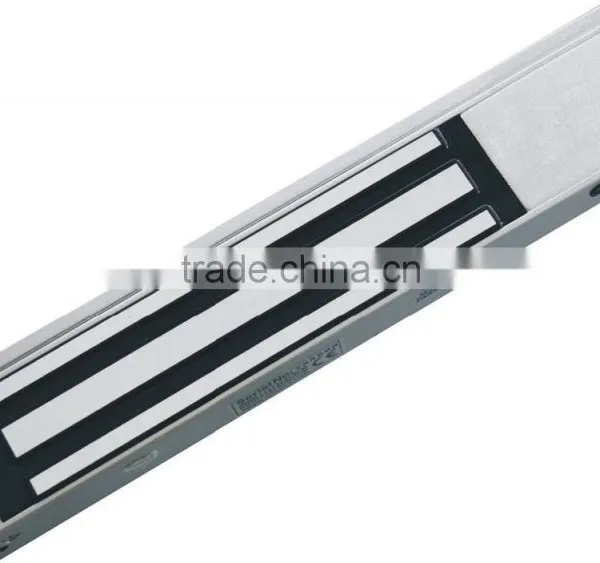

KO-280E Access Contril Magnetic Lock CE
Lock Dimension: 250Lx49.5Wx26.5H(mm)
Armature Plate: Dimension 180Lx38Wx11H(mm)
Holding Force: 280kg(600Lbs)
Input Voltage: 12/24VDC+10%
Working Current: 12V/500mA 24V/220mA Signal: Hang mounted with signal output. LED turns green when locked well, LED turns red when unlocking.
Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp: ≤+20℃
Operating Temp: -10~+55℃(14-131F)
Humidity: 0~90%(non-condensing)
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Weight: 1.8KG
Collinear Load Test 280kgx2,600poundsx2.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
