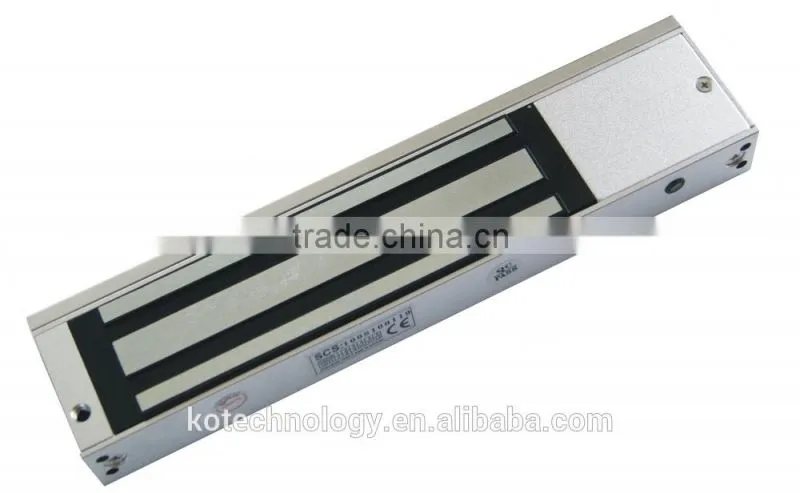

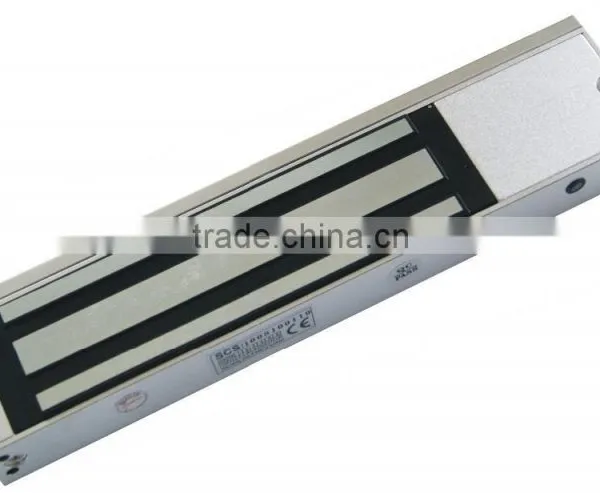

KO-350A MA Certification Magnetic Lock For Access Control
Lock Dimension: 250Lx56.5Wx28H(mm)
Armature plate dimension: 158Lx43Wx11H(mm)
Holding Force: 350kg(800Lbs)
Voltage: DC12V or DC24V+10%
Working Current: 12V/480mA 24V/240mA
Signal: Hang mounted with signal output. LED turns green when locked well, LED turns red when unlocking.
Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp: ≤+20℃
Operating Temp: -10~+55℃(14-131F)
Suitable Humidity: 0~95%(non-condensing)
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Weight
llinear Load Test 350kg,800pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door
LED Indicates the Door Status
Lock Status sensor(NO/NC/COM)
Anti-Residual Magnetism Designed
High Strength Material,Anodized Aluminum Housing
Design without Mechanical Failure
Increase the holding Force,Dual Insulative Hosuing
CE Certificate by European Union,MA Certificate by China Public Security Office
Send Inquiry to This Supplier
