Quanzhou Zhanpeng Machinery Equipment Co., Ltd.
Established in the early 1990s, Quanzhou Zhanpeng Machinery Equipment Co., Ltd. Is a professional manufacturer of engineering machinery equipment that integrates production, manufacturing, distribution and service.
By innovation and integration of market, management and resources, we have set up an ideal network system of product and market. Meanwhile, we make innovation and R&D based on the frequency conversion technology that introduced from German to form our own core technology. We keep improving the quality guarantee system and set up a perfect network system on interior information management so as to further improve the working efficiency and management skills to ensure the users to use our products easily and fulfill the utmost value.

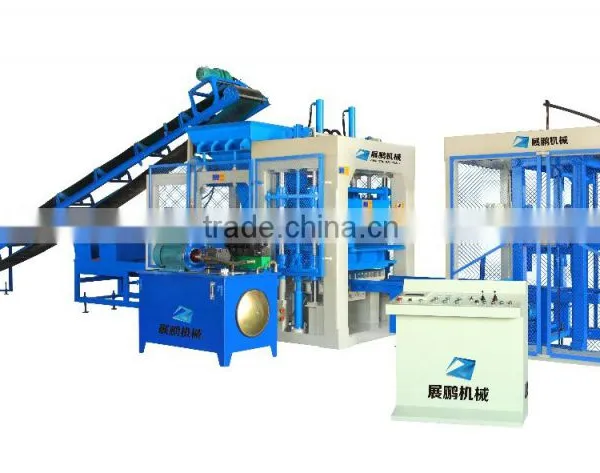

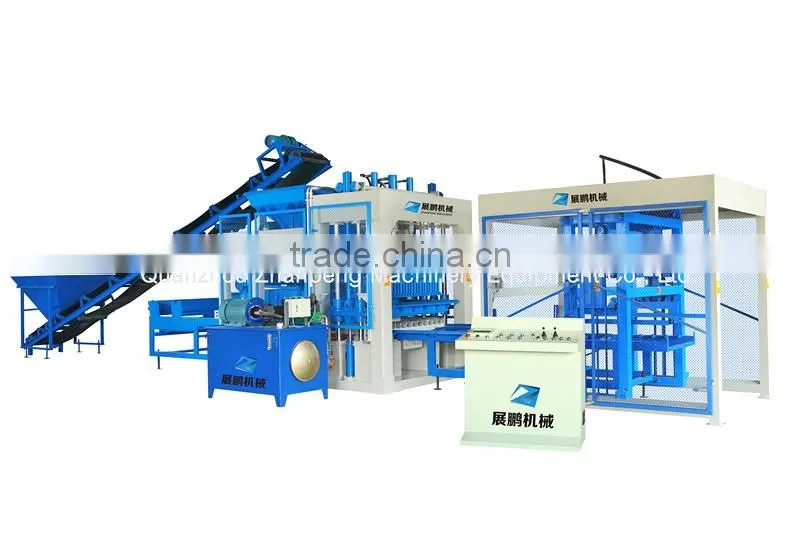

QT Series Multi-functional Fully Automatic Block Making Machine
As a “National Inspection-free Product”, Zhanpeng block making machine is well supported with complete functions, easy operation and stable quality. It has reached the leading level of its kind at home. It is applied in producing high-strength and fine-quality ordinary concrete blocks, fly ash blocks, waste residue blocks, etc. The blocks produced are featured with high consistency, good capabilities in frost-resistance, permeability-resistance, sound insulation, thermal insulation, heat-preservation property and reliable performance.
Production of video:
https://youtu.be/mAToMpAUh0A
Technical Features:

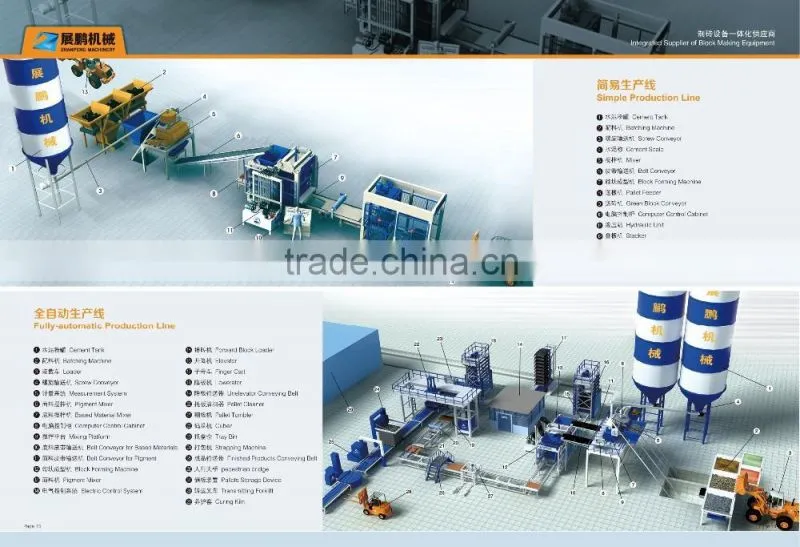

It adopts Germany frequency conversion technology and is controlled by variable frequency of the main machine. All the main electric and hydraulic components are world well-known brands. The block production line is realized fully automatic operation, which saves the operation intervals, improve production efficiency. It is versatile that can be made up as a simple production line with stacker. It is economic and practical for medium-sized enterprises to set up a simple production line with excellent production outputs.
A.It reduces the starting current of the motor with a function of soft starting.
B.It realizes the synchronized operation of vibration assembly.
C.Braking unit and braking resistor are used to consume the energy to solve the problem of inertia of the motor upon braking.
D.The energy saving effect is remarkable. It saves 20-30% of power.
E.High-effective parts of hydraulic proportion system are imported (more effective and more energy consecutive).

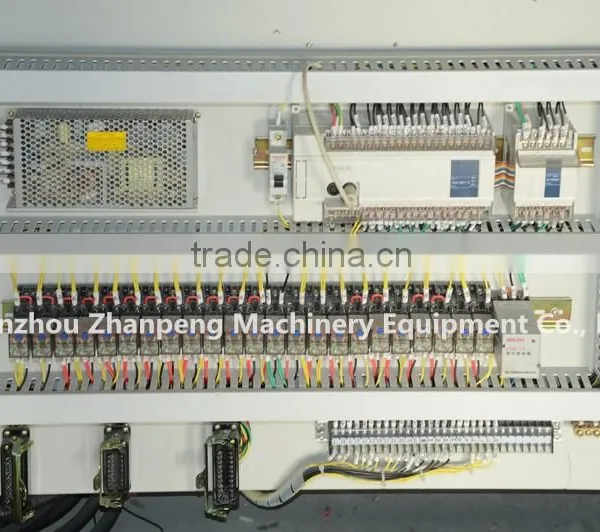

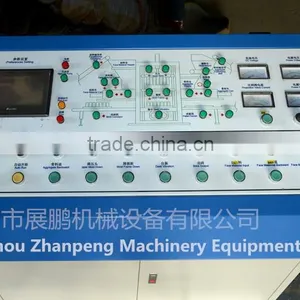

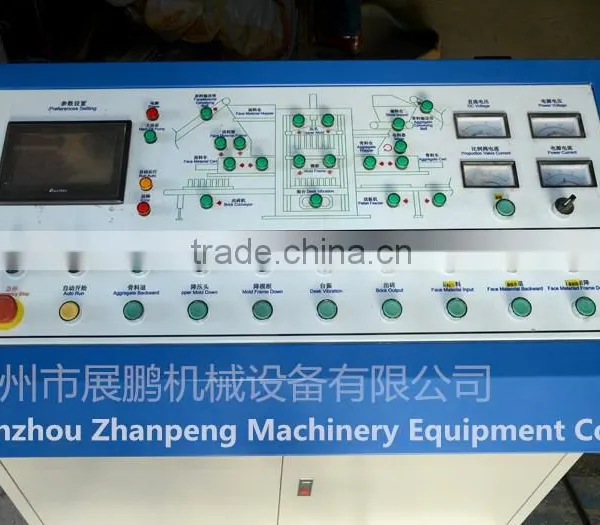

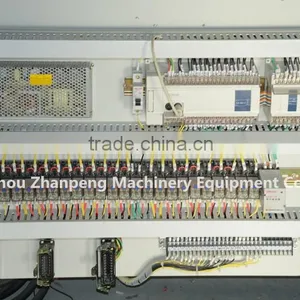

F.Imported intelligent PLC touch screen and authentic electric components (high automation level and easier operation).
G.Arch-breaking rapid-feeding device (has a great advantage for feeding for porous bricks. It makes feeding much evener.)
H.Variable-frequency motor and multi-source synchronous vibration system are used.
I.Vibration and forming
J.Special process of high-temperature thermal treatment (the moulds are more durable and rigid)
K.Guiding pole.It is made of ultra high strength steel and the surface is coated with hard chrome for a better torsional and abrasive performance.
QT6-15 Main Technical Specifications
|
Vibration Frequency
|
3800-4500r/min
|
|
Main machine weigh
|
6200KG
|
|
Dimension
|
9450*3300*2700mm
|
|
Capacity
|
26.7KW
|
|
Cycle Time
|
15-23(S)
|
|
Rated pressure
|
25mpa
|
|
Vibration force
|
68KN |
|
Pallet size
|
880*560mm
|
|
Name |
Hollow Block
|
Porous Block
|
Solid Brick |
Holland Brick
|
size |
390*190*190
|
240*115*90
|
240*115*51
|
200*100*60
|
PCS/MOULD |
4 |
14 |
26 |
14 |
|
PCS/8HOURS output
|
5760-7680
|
20160-26880
|
37440-49920
|
18200-23100
|
Note:The output listed above is based on theoretical calculation.The moulding cycle and output are subject to raw materials and products types.

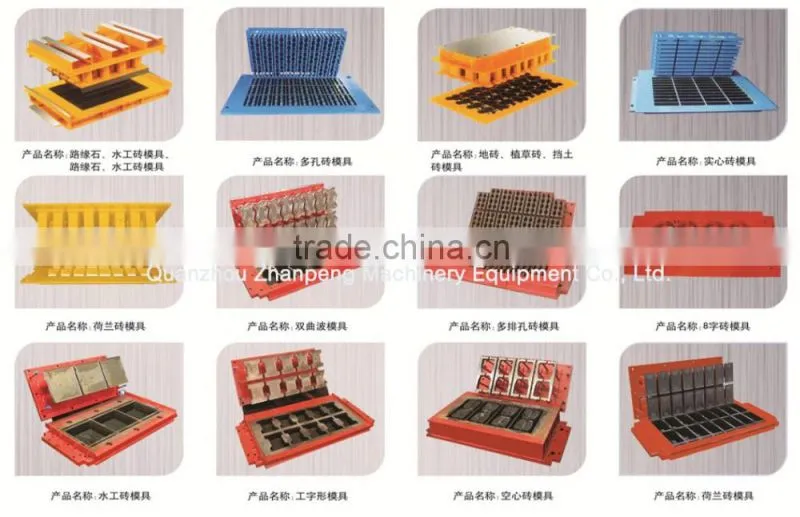

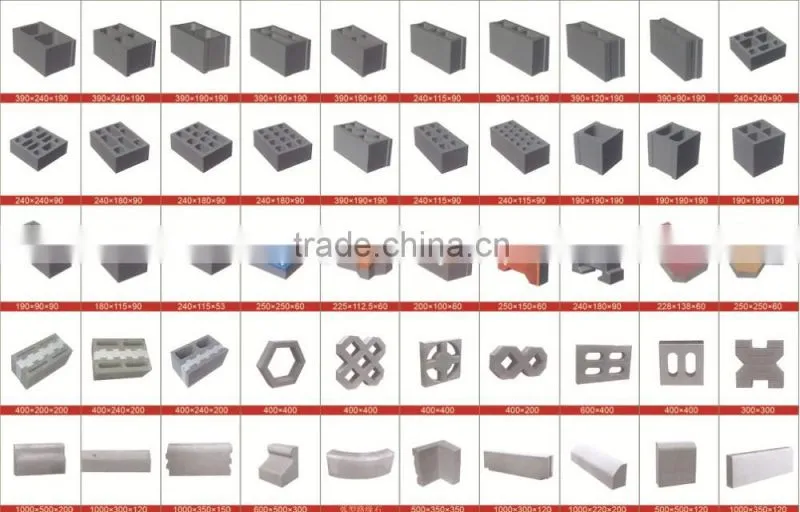

You can made a lot of brick/block by different mould
PVC Pallet for Unburned Bricks
Pre-sales Service:
- Introduce the company, products and technology;
- Provide, analyze and explain consultation on construction technology;
- Suggest the best products for customers according to their demands.
On-sales service:
- Follow up the contracts and organize the relevant departments to review the contracts;
- Solve the problems in case of any uncleanly prescribed terms or items that require mutual negotiation.
- Follow up the production and delivery and the production progress of outsourcing parts according to the contracts.
After-sales service:
- Provide one-year free warranty and life-long service;
- Assist users to formulate production formula;
- Set up completed users’ data and provide a better follow-up service;
- Supply spare parts and moulds;
- Provide online interaction platform with customers on the internet and remove troubles for customers at any time;
- Provide feedback system for customers on the internet;
- Update the latest industrial information and relevant data of the company.
After-sales Service Hot Line: 0595-22116668
Website:
E- mail:
Tel:+86- 18959877576
WhatsApp,Wechat :18060007703
Fax: 0595-22526668
Skype:Rita QQ:2635334726
