Specifications

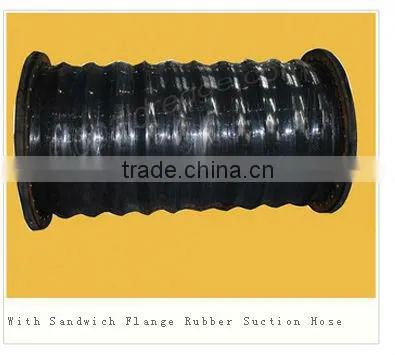

1.flange can be optional:sandwich or steel2.flexible, safe,wear-resistant
3.high strain stress
4.high elongation ratio
Suction Hose:
1.for use from the dredge to the pump station or the pump station to shore
2.used in place of steel pipe for flexibility and better abrassion resistance

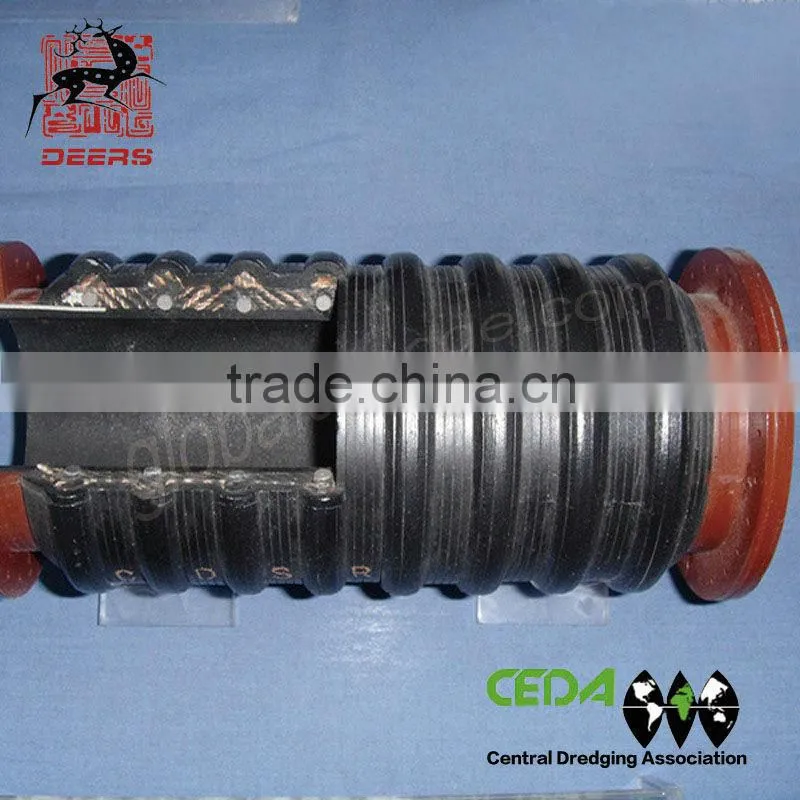

Structure:
Tube: Black abrasion resistant Natural Rubber
Reinforcement: Multiple plies of polyester fabric with a spring steel helix wire.
Cover: Neoprene
Hydraulic Properties:
The draining rubber hose has no abnormal change such as leakage or partial bulging when tested under stable pressure of 1.5 times higher than rated working pressure.
Features:
1. can achieve high bending capability even under severe conditions.
2. It is safe, abrasion-resistant and convenient to install,flexible to use.
3. manufactured in accordance with ISO9001-2000.
Internal diameters: 250mm -- 900mm
Thickness of the pipe wall: 31mm--58mm
Any length at customer's request
Working temperature: -20°C to +50°C
ID |
(Mpa) Working Pressure |
(m) Length |
(mm) Pipe Wall Thickness |
|
mm |
(mm) T |
|||
250 |
±2 |
60mm mercury column
Max vac 650mm high |
1-3 |
31-32 |
300 |
±2 |
1-3 |
34-37 |
|
414 |
±2 |
1-3 |
35-37 |
|
560 |
±3 |
2-3 |
40-45 |
|
600 |
±3 |
2-3 |
40-45 |
|
700 |
±3 |
2-3 |
40-45 |
|
800 |
±4 |
2-3 |
50-52 |
|
900 |
±4 |
2-3 |
55-58 |
|
