High Strength Suction Rubber Hose

Name: High Strength Suction Rubber Hose
Brand: Deers
SKU: 114283295

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

Deers

Model Number:

Suction hose

Nanjing Deers International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Deers

Model Number Suction hose

Specifications

Suction Rubber Hose
1.High quality, good service.
2.Working temperature: -20 to +50 degree
3.Easy to install and maintain.

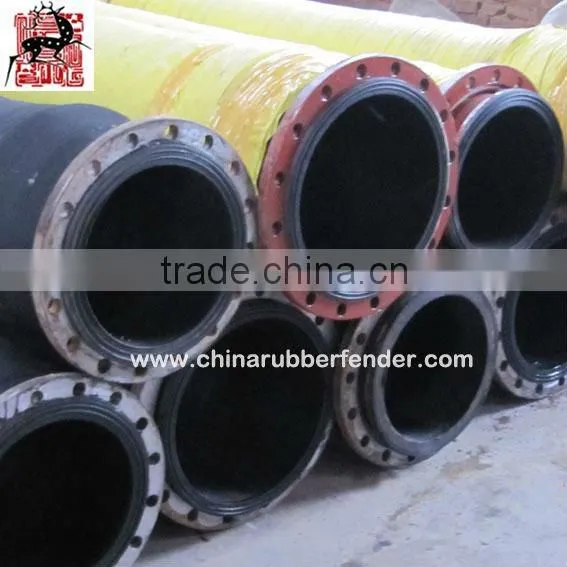

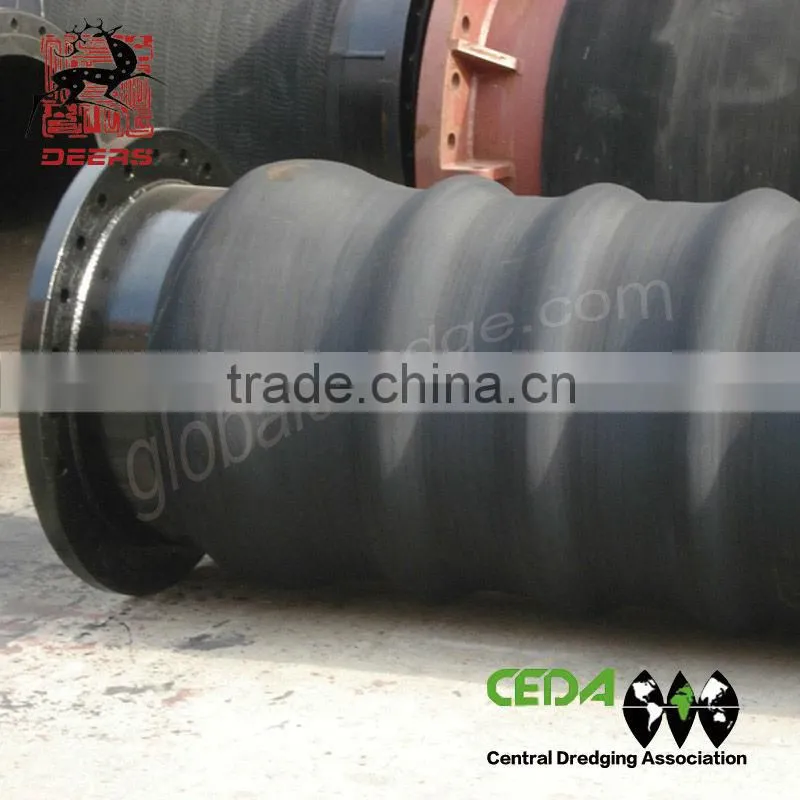

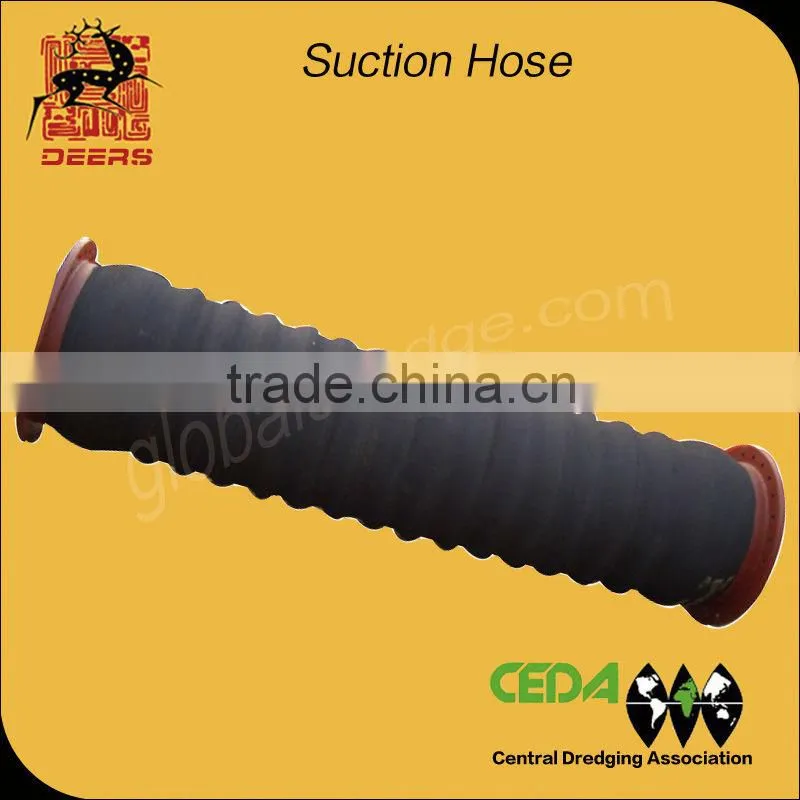

High Strength Suction Rubber Hose

Discription:

The steel flange suction hose are used with dredger for silt/gravels conveyance.

It sucks up the mixture of silt and water with negative pressure.

The suitable working temperature is from -20°C to +50°C.

Thickness : the pipe wall is from 20mm to 50mm.

With high strength lined steel pipe

Construction:

Wear tube: Mainly Nature rabber mixing SBR o NBR

Tire cord: High strength polyester cord fabril.

Wire: High tensile, spring steel wire

Cover: Weather resistant EPDM, SBN o NBR

Featuress:

♦ Convinient to use

♦ Flexible

♦ High strength and abrasion resistant

♦ Safe, can bear long time work

ID		(Mpa) Working Pressure	(m) Length	(mm) Pipe Wall Thickness
mm	(mm) T	(Mpa) Working Pressure	(m) Length	(mm) Pipe Wall Thickness
300	±3	60mm mercury column Max vac 650mm high	1-3	31-32
350	±3		1-3	34-37
400	±5		1-3	35-37
500	±5		2-3	40-45
550	±5		2-3	40-45
600	±5		2-3	40-45
650	±4		2-3	50-52
700	±4		2-3	55-58
