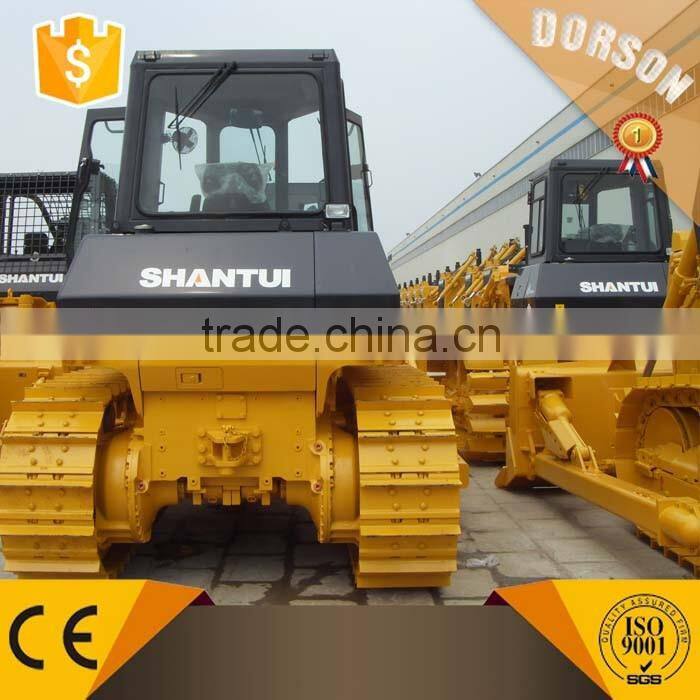

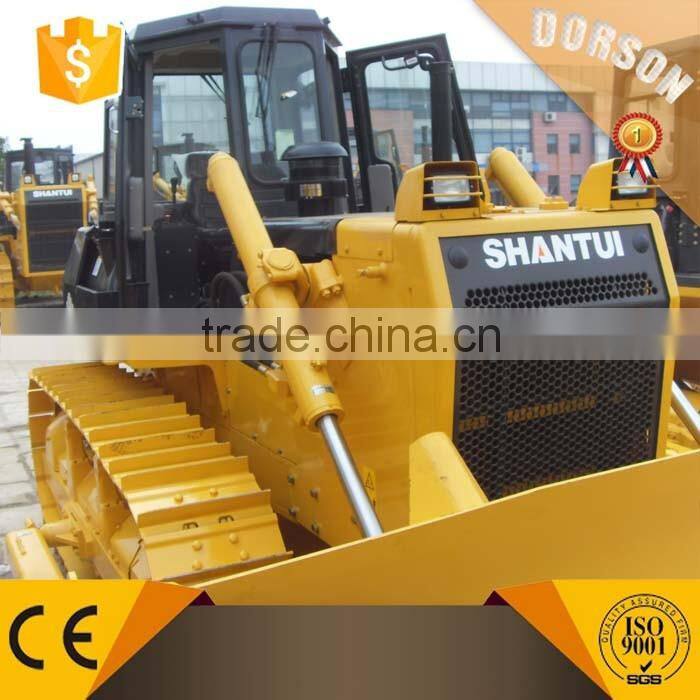

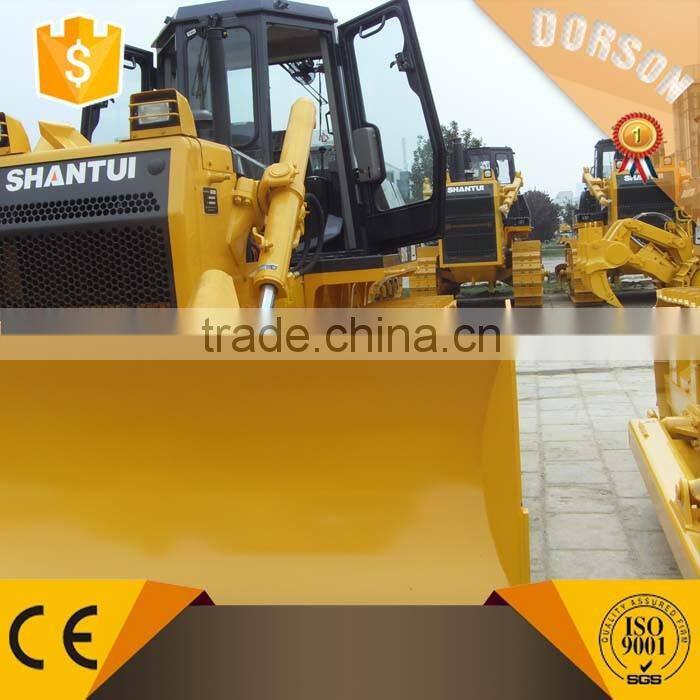

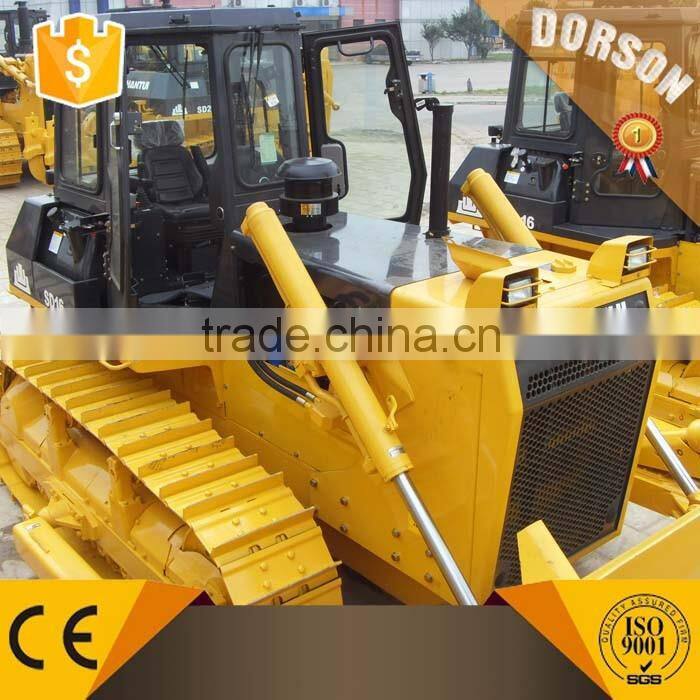

Shantui Sd16 Small Mini Crawler Bulldozer 160hp Dealer Price For Sale New Machine
1. Introduction:
SHANTUI Bulldozer SD16 Crawler Bulldozer is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine.
2. Technical specification:
| ITEM | UNIT | SD16 Bulldozer |
| L*W*H (Ripper not included) | mm | 5140*3388*3032 |
| Operating weight (Ripper not included) | t | 17 |
| Engine | - | Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
| Rated power | kW/rpm | 120/1850 |
| Gradeability | ° | 30 |

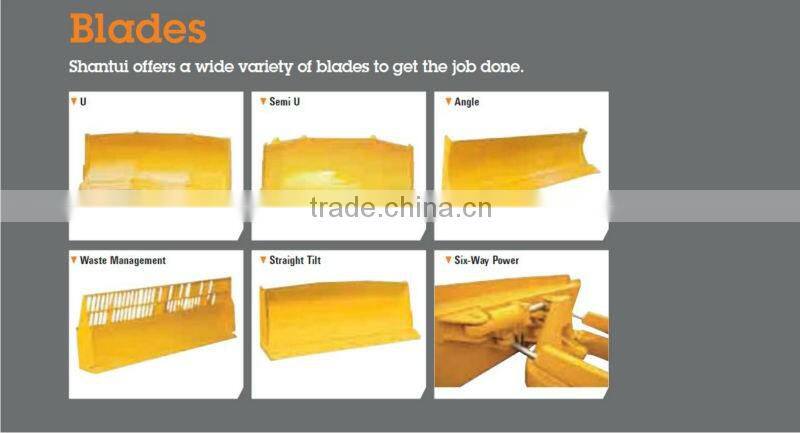

| Blade type | - | Straight tilt blade U blade Angle blade |
| Blade width | mm | Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 |
| Dozing capacity | m3 | Straight tilt blade 4.5 U blade 5 Angle blade 4.3 |
| Ma× drop below ground of blade | mm | 540 |
| Lift height of blade | mm | 1095 |
| Ripper type | - | Three-shank ripper |
| Ripping depth of ripper | mm | 572 |
| Lifting height of ripper | mm | 592 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 37 |
| Width of track shoe | mm | 510 |
| Track gauge | mm | 1880 |
| Ground length and ground pressure | mm/MPa | 2430-0.067 |
| Pitch | mm | 203.2 |
| Forward speed | km/h | 0–3.29 |
| 0–5.82 | ||
| 0–9.63 | ||
| Reverse speed | km/h | 0–4.28 |
| 0–7.59 | ||
| 0–12.53 |

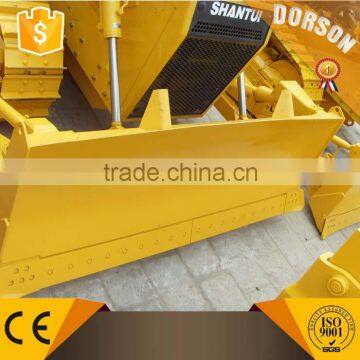

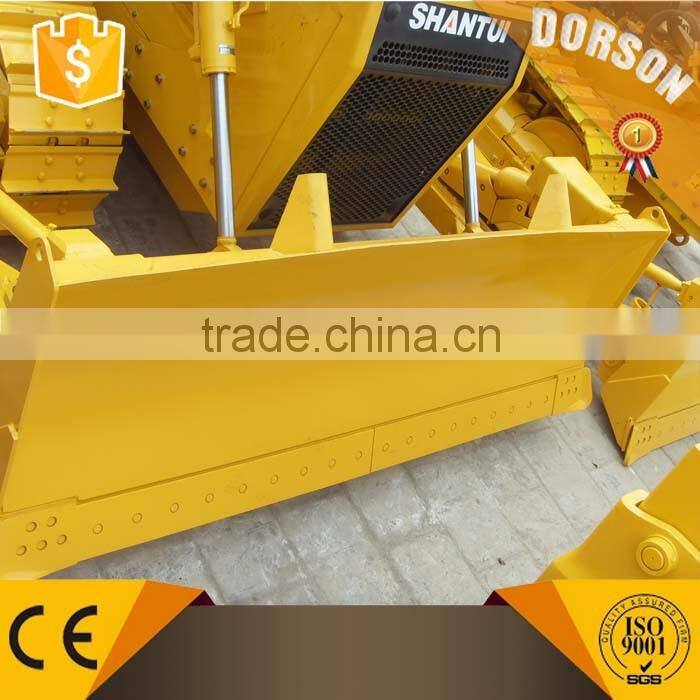

3. Detail SHANTUI Bulldozer Blade Photos:
4. Summary of SHANTUI SD16 Bulldozer
Shantui’s best-seller worldwide, this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g., desert, swamp, forest, high altitude, etc. Has Tier IIIb Cummins engine for European market and optional engines (Weichai and Shangchai) for other markets. The SD 16 provides high performance with strong reliability, with Shantui’s trademark value.
5 .Other model Bulldozer
Model: SD08 Bulldozer
Engine Brand: WEICHAI
Rated Power: 63KW/80HP
Total Weight: 7.65Ton
Dozing Capacity: 2.2CBM
Model: SD13 Bulldozer
Engine Brand: shangchai
Rated Power: 95.5KW/130HP
Total Weight: 14Ton
Dozing Capacity: 3.7CBM
Model: SD16 Bulldozer
Engine Brand: Weichai
Rated Power: 120KW/160HP
Total Weight: 17Ton
Dozing Capacity: 4.5CBM
Model: SD22 Bulldozer
Engine Brand: Weichai
Rated Power: 162KW/220HP
Total Weight: 23.4Ton
Dozing Capacity: 6.4CBM
Model: SD23 Bulldozer
Engine Brand: Kummins
Rated Power: 169KW/230HP
Total Weight: 24.6Ton
Dozing Capacity: 7.8CBM
Model: SD32 Bulldozer
Engine Brand: Kummins
Rated Power: 235KW/320HP
Total Weight: 37.2Ton
Dozing Capacity: 10CBM
| Packaging Details: | 40 high container for new mini hydraulic excavator for sale |
|---|---|
| Delivery Detail: | after 7 days when confirmed your oder |
Shandong Dorson Hydraulic Co.,ltd (former name Jining Automobile Spare Parts Co.,ltd, established in 1956) which developed into private joint-stock company that specialized in producing the excavator parts including idler cushion, front idler, sprocket, track roller, carrier roller, rotary joints, hydraulic redirector, cycloid motor, one-piece multi-way valve, central rotary joints since 1998...
