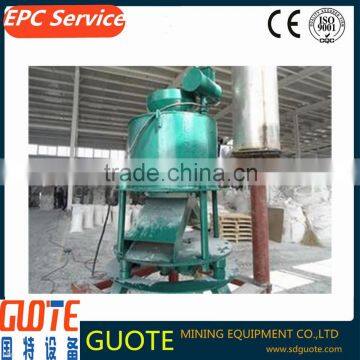

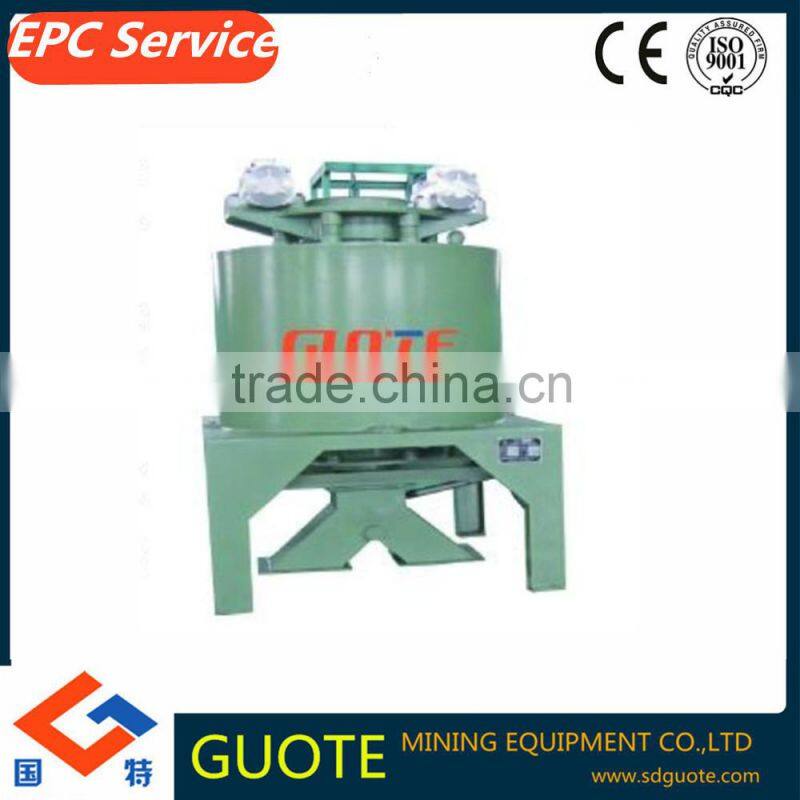

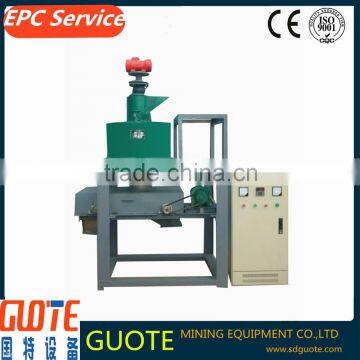

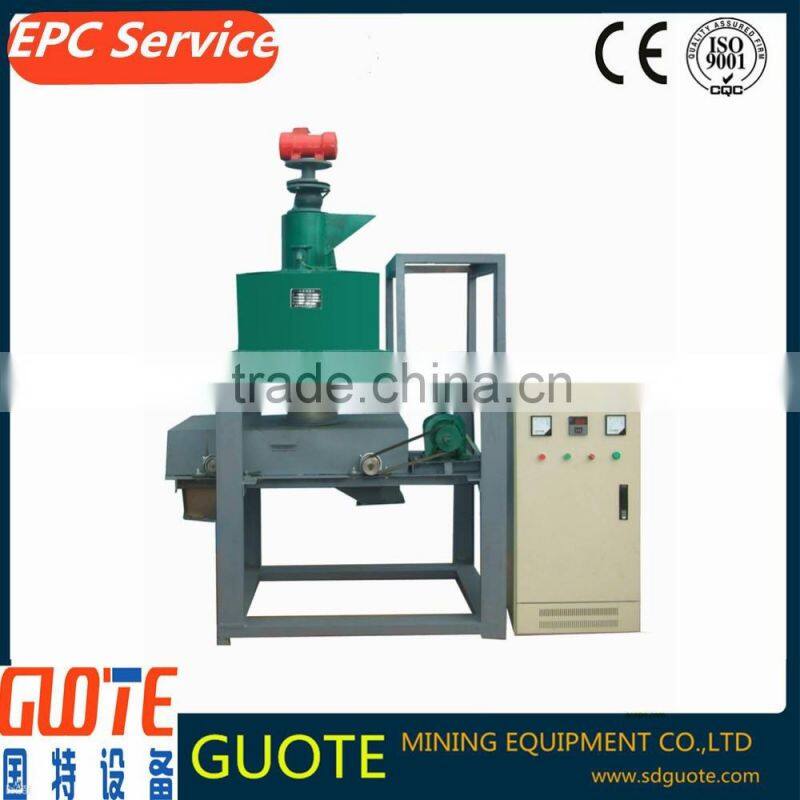

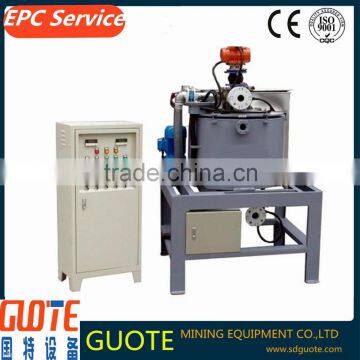

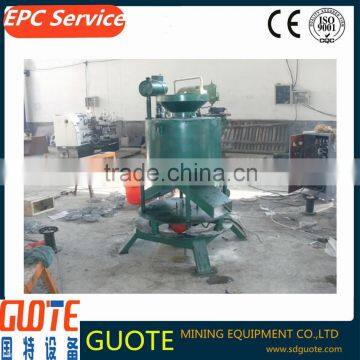

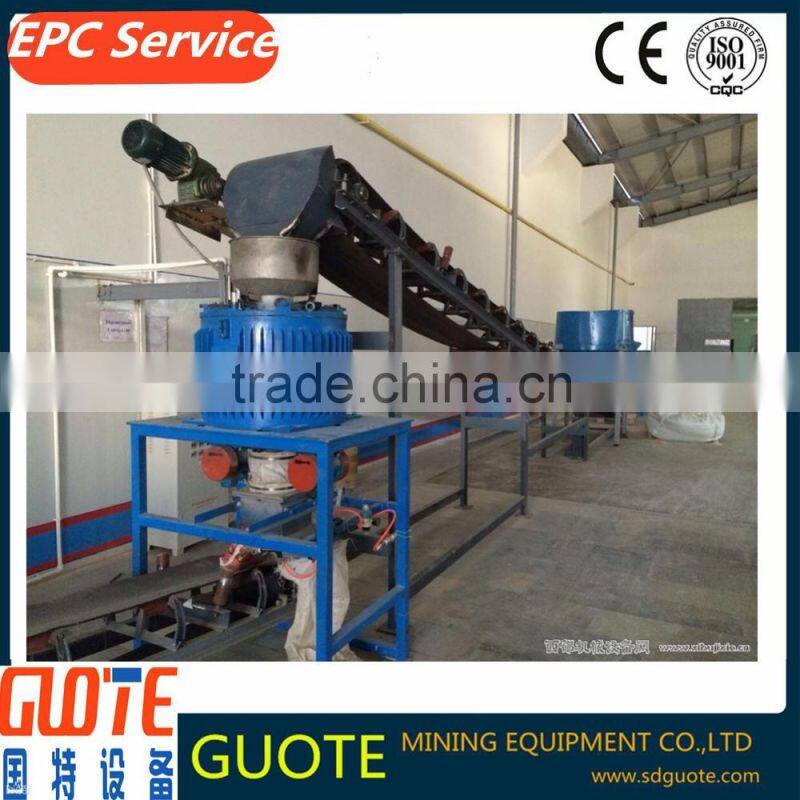

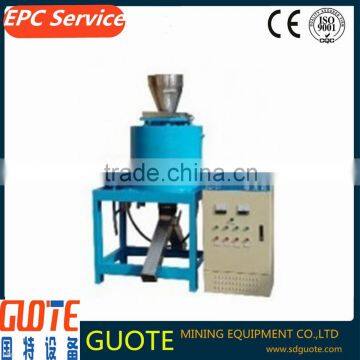

GDF series electromagnetic small magnetic separator for mineral separation
Scope of application
1 Removing weakly magnetic oxide or chip rust in the fine powder materials
2 For ceramics, glass, refractory materials and other non-metallic minerals
3 For medicine, chemicals, food etc.
Technical characteristics
l Easy connection: input or output of raw material by external pipe and canvas bag
l Removing fine materials hard to flow: the materials below 200µm or high humidity will go through under vibration motor
l Processing of high temperature materials: The standard model can handle the raw materials up to 70℃; Moreover, the special model can handle higher temperature materials.
l Simple installation: you can assemble the equipment with frame
l Magnetic filter screen cleaned conviniently : Tray can recovery separated materials, after shutting off the power, it will demagnetize the screen and cleaning it conviniently.
l Throughly separatored iron powder from the basic materials : basic materials can not be put in separator cabin.
Technical parameter
|
GDF-150 |
GDF-250 |
GDF-300 |
GDF-150H |
GDF-250H |
GDF-300H |
Capacity(t/h) |
5 |
15 |
20 |
5 |
15 |
20 |
Weight(kg) |
200 |
400 |
450 |
800 |
1200 |
1400 |
filter net outer diameter (MM) |
145 |
245 |
295 |
145 |
245 |
295 |
filter net sheet number (MAX) |
13 |
15 |
15 |
13 |
15 |
15 |
insulation oil amount (L) |
18 |
50 |
50 |
60 |
70 |
70 |
control panel size (mm) |
300*400*540 |
350*500*600 |
||||
PACKAGING & SHIPPING
1 Packaging: Specially made wooden boxes and containers
2 Shipping: twenty days after receiving initial payment
OUR SEVICES
1 We will provide non metallic ore EPC turnkey project services.
2 According to customer's requirement, you can customize your private model.
3 You can make the complete test
4 We will respect your reasonable requirements
COMPANY INFORMATION
Weifang GUOTE Mine Equipment . is professional and modern enterprise including research and development, engineering design, production and installation, debugging services , automatic control equipment, non-metallic mineral production line test, design, consultation and the complete line of delivery.The scope of services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles,food, cement ,etc.Our product sell well in more than thirty provinces, autonomous region.
Our product have electromagnetic, permanent magnetic separator, dry wet magnetic separator,electromagnetic vibration feeder, quartz sand making machine, air classifier, dust collector, water separator, washing machine, flotation machine,metal detector, screw conveyor, timing quantitative feeding,weigher and centralized control system, etc.
Facing the new opportunities and challenges, the company in line with the spirit of "honesty-oriented, mutual benefit, cooperation and innovation" , dedicated to providing “dependable,simple and efficient” products and services to customers, make enterprises become domestic advanced mining equipment manufacturer.
Our company is willing to work together with people from all walks of life for a better future.
