What is waste water rake bar screens?
JHZ series waste water rake bar screens are also called fine mechanical fine bar screen or mechanical rake bar screen, mainly used to eliminate impurities from liquid in wastewater pretreatment process. We have been over 8 years in manufacturing and designing of waste water rake bar screens since year 2006.
JHZ series waste water rake bar screens are composed of electric motor, gear box, steel frame, tooth rake chain, traction chain etc..
Electric motor and gearbox are mounted on the upper rack of steel frame, drive sprocket of tooth rake traction device is at the head of steel frame, rotated by gearbox output shaft, work together with another driven sprocket which is located at the end of steel frame.
Two sprockets are connected by traction chains, with the rotation of sprockets, tooth rake group run in the opposite direction of water flow. When impurities are carried to the steel frame upper limit position, because of the guiding of sheave and curve rails, most impurities will fall into a junk car and be carried away.
At the same time, tooth rake will self-clean up with each other. Wastewater after treated flow away through the gap of tooth rake. JHZ series waste water rake bar screens are your ideal choice to remove colloidal particles, solids and impurities.
Features of high efficiency waste water rake bar screens JHZ series:
High automation degree with remarkable separation efficiency, low power consumption, little noise, excellent corrosion resistance.
Include overload protection device, machine will shut down automatically when malfunction happens to avoid damage.
Equipment operation intervals are adjustable according to user's working condition, automatic periodic operation is achieved.
Simple structure with compact size, easy to install and move. Equipment can self-clean up while working, easy to maintain.
JHZ series waste water rake bar screens are greatly suitable for solid-liquid separation as pretreatment process.
Rotatory waste water rake bar screens are mainly used in pretreatment process to remove large size suspended solids and impurities from wastewater.
As an advanced essential solid-liquid separation equipment, waste water rake bar screens are widely used in textile industry, food industry, paper-making industries etc. for wastewater treatment. Strong technical team and strict final inspections ensure excellent quality and long service life of our waste water rake bar screens.
Specification of waste water treatment equipment - waste water rake bar screens:
| Model | Motor Power(kw) | Flow Rate(m3/h) | Machine Width | Well Width | ||||
| JHZ-300 | 0.37 | 150 | 300 | 450 | 460 | 460 | 300 | 350 |
| JHZ-400 | 0.37 | 170 | 340 | 420 | 510 | 540 | 400 | 450 |
| JHZ-500 | 0.55 | 240 | 480 | 590 | 730 | 750 | 500 | 550 |
| JHZ-600 | 0.55 | 308 | 620 | 764 | 920 | 960 | 600 | 680 |
| JHZ-700 | 0.55 | 360 | 720 | 930 | 1124 | 1160 | 700 | 780 |
| JHZ-800 | 0.75 | 440 | 880 | 1080 | 1330 | 1420 | 800 | 880 |
| JHZ-900 | 0.75 | 550 | 1024 | 1250 | 1450 | 1580 | 900 | 980 |
| JHZ-1000 | 0.75 | 580 | 1160 | 1450 | 1760 | 1830 | 1000 | 1080 |
| JHZ-1100 | 1.1 | 650 | 1310 | 1670 | 2000 | 2080 | 1100 | 1180 |
| JHZ-1200 | 1.1 | 710 | 1470 | 1750 | 2080 | 2250 | 1200 | 1280 |
| JHZ-1500 | 1.5 | 920 | 1840 | 2000 | 2250 | 2400 | 1500 | 1580 |

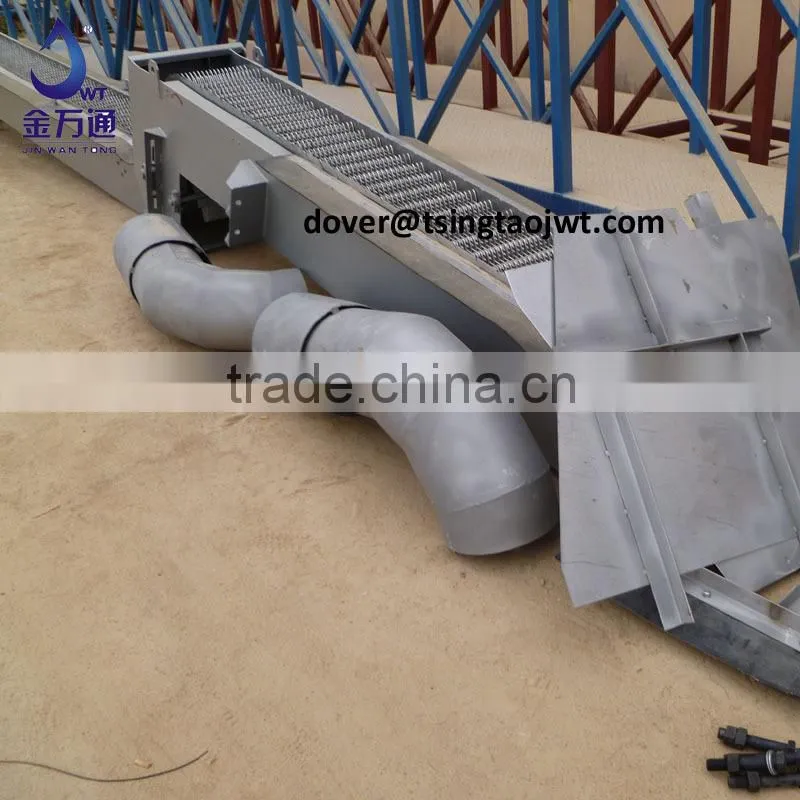

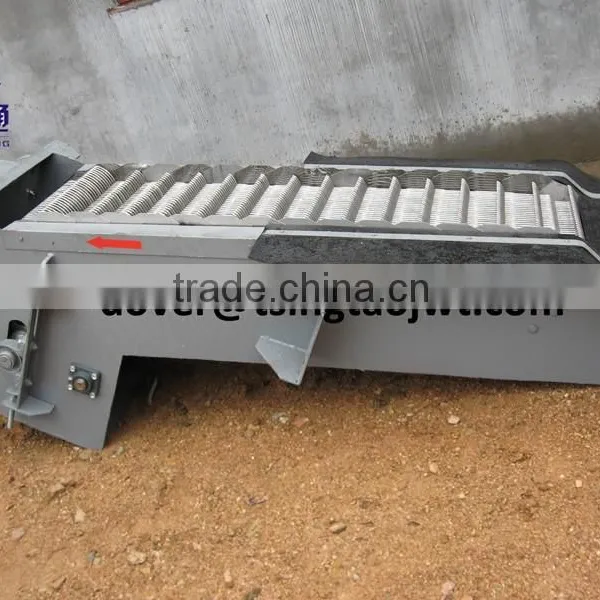

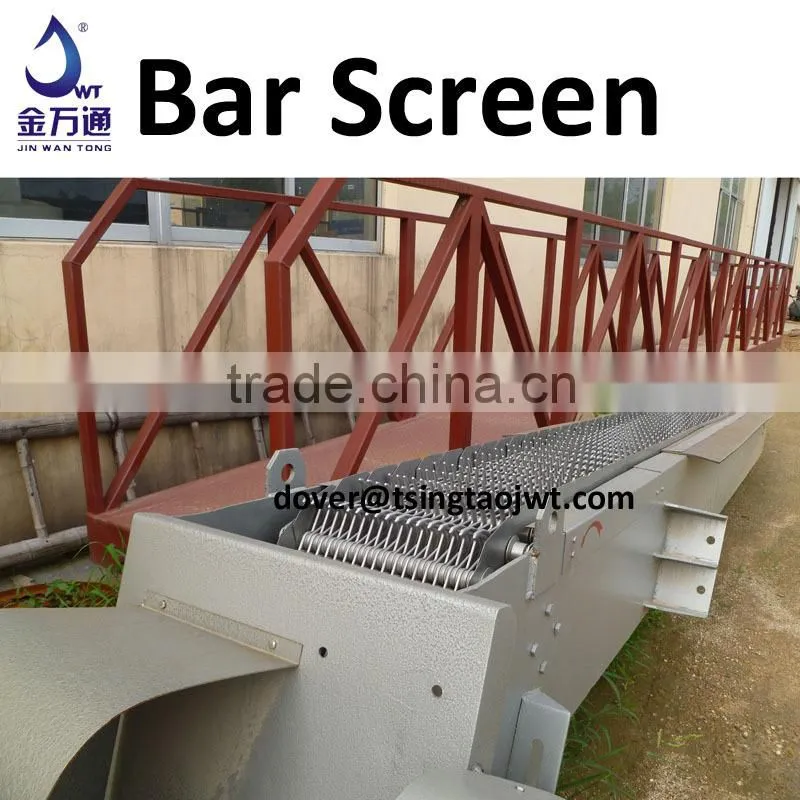

Detail images of waste water treatment equipment - waste water rake bar screens :
