Specifications
ISO 9001-2008Over 8 years experience in manufacturing of solid liquid separator since year 2006
Direct factory price
What is a solid liquid separator?
Solid liquid separator is also called belt press or belt mud dehydrator, is widely used in both domestic and abroad market for its excellent performance and low investment & costs.
Our solid liquid separator embodies all the recognized principles of good solid liquid separator design. It is simple, reliable and easy to operate. The design has sufficient flexibility to accommodate nearly all types of sludges which are likely to be generated in a treatment facility.
All components are rugged, heavy-duty industrial quality suited for continuous 24 hr./day, 7 day/wk. service. We are professional manufacturer in manufacturing and designing of solid liquid separator since year 2006.
Working principle of solid liquid separator WDY Series:
Free water and sludge is fully separated at gravity dewatering zone and then enter into 3-stage pressure dewatering zone---pre-pressure rollers, low pressure rollers and high pressure rollers.
Sludge is gradually dewatered under pressure and is discharged as sludge cake. Solid liquid separator is your ideal choice for sludge dewatering.
Uses of solid liquid separator:
Solid liquid separator is mainly used for sludge dewatering in municipal sewage treatment plants, pharmaceutical industry, electroplating industry, paper industry, leather industry, printing and dyeing industry, metallurgy industry, chemical industry, slaughter industry, food industry, wine manufacturing factory and environmental engineering plants.
Also solid liquid separator can be used for solid-liquid separation and resource recovery in industrial production, like:
- In steel plants: Dewater and recycle iron powder.
- In wineries: solid-liquid separation from vinasse.
- In stone factories: Dewater and recycle stone powder.
Solid liquid separator is simple and easy to maintain, sludge cake moisture content rate is very low.
Product features of solid liquid separator:
- Fully automatic, save labor.
- Small vibration and low noise.
- Excellent performance with very small footprint.
- Adaptable for nearly all types of sludges, high efficiency with large treatment capacity.
- Dewatering happens in several zone one by one with high dewatering efficiency, sludge cake moisture content is much low.
- Solid liquid separator can run continuously around the clock, and can automatically backwash, easy to maintain.
- Low energy consumption and low running costs.
- Filter belt deviation can be automatically calibrated, more safe.
- Strong technical team and strict final inspections ensure excellent quality and long service life of our solid liquid separator.

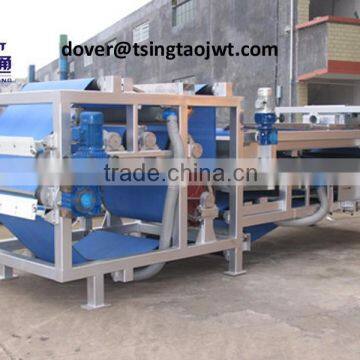

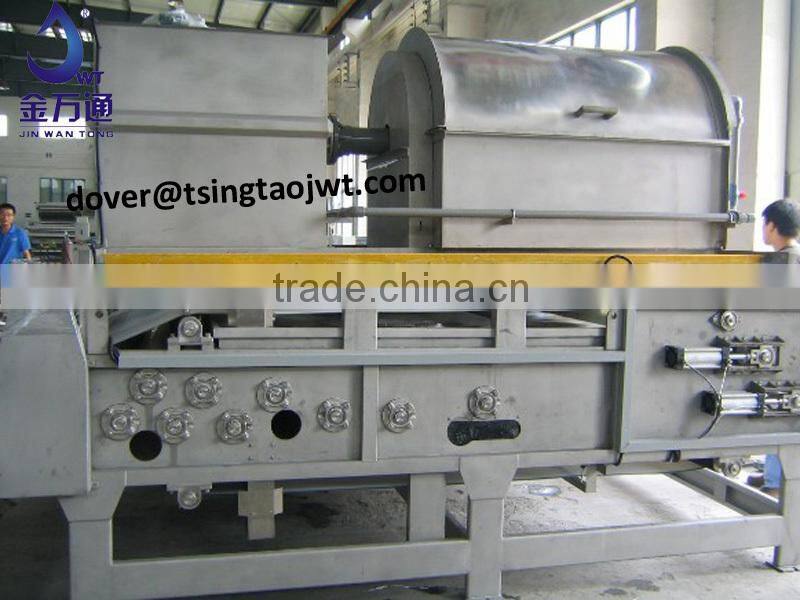

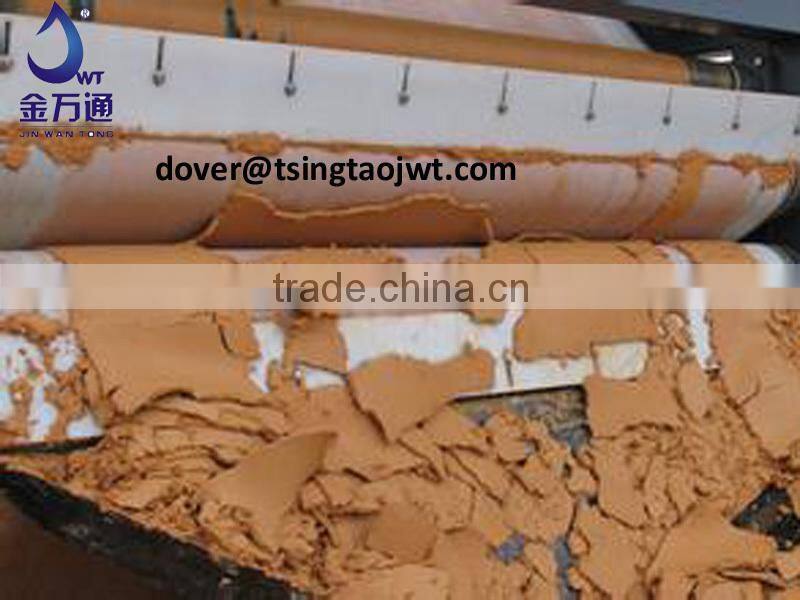

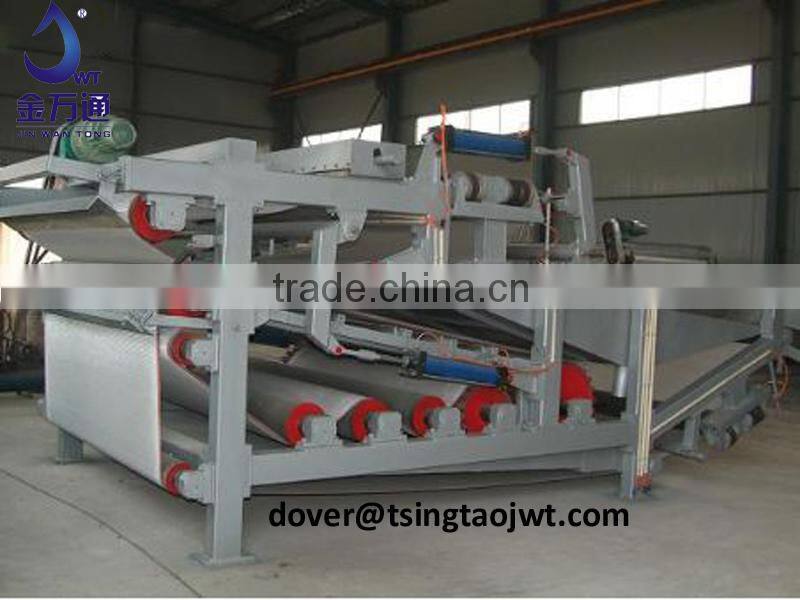

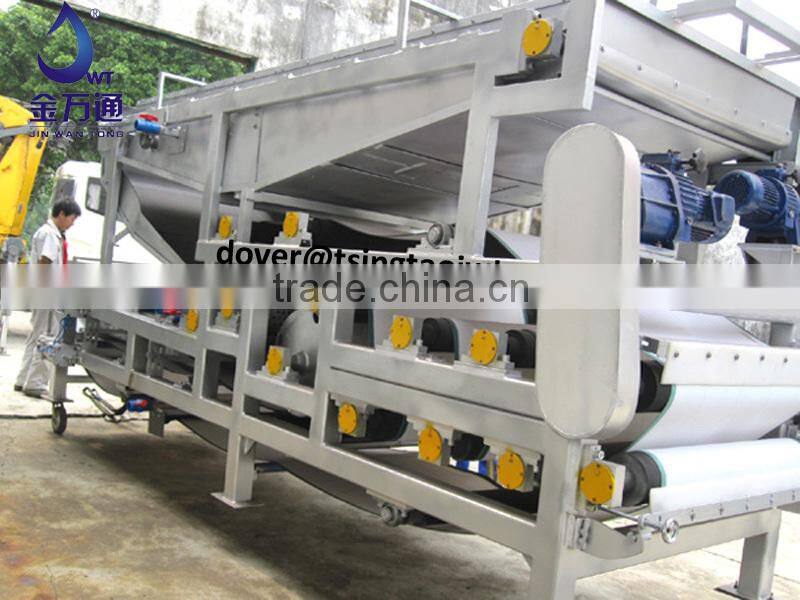

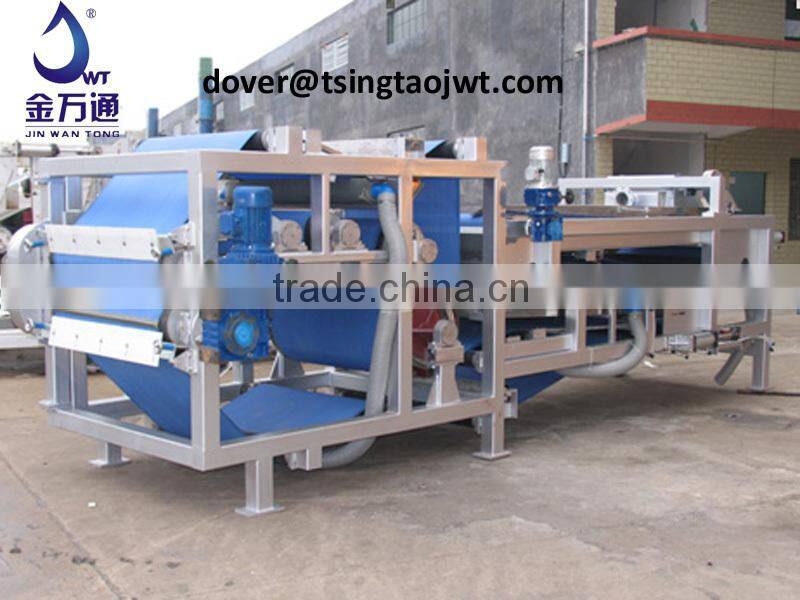

Detail images of solid liquid separator:
Detail specification of solid liquid separator WDY:
| Model | WDY10 | WDY15 | WDY20 | WDY25 | WDY30 |
| Belt Width(mm) | 1000 | 1500 | 2000 | 2500 | 3000 |
| Treatment Capacity(m3/h) | 4/15 | 6/25 | 8/30 | 10-40 | 15-50 |
| Power(kw) | 2.2 | 2.2 | 3 | 3 | 5.5 |
| Washing Water Consumption(m3/h) | ≥6 | ≥8 | ≥12 | ≥16 | ≥18 |
| Washing Water Pressure(Mpa) | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.6 |
| Air Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.5-0.8 |
| Mud Cake Moisture Content(%) | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 |
