What is a sand filter?
Sand filter is a great water purification equipment which use sand as filter media to remove suspended solids for irrigation water, cooling water, swimming pool water etc.
JG series sand filters use this simple but very effective method to give you the filtration you need to clean your water. Water enters sand filter and is channeled to the top of the filter and falls on a bed of sand. Filtered water then exits through laterals at the bottom of the filter and the trapped dirt in the sand is removed via periodic backwashing and infrequent sand replacement. This sand filter is easy to install and very simple to maintain.
We have been over 9 years in manufacturing and designing of sand filter since year 2006, excellent quality with direct factory price for you.
JG series sand filter is typically used for:
- Irrigation water
- Storm water
- Cooling water
- Swimming pool water
- Water in fountains and other water features
- JG series sand filter is your ideal choice for water filtration and purification.

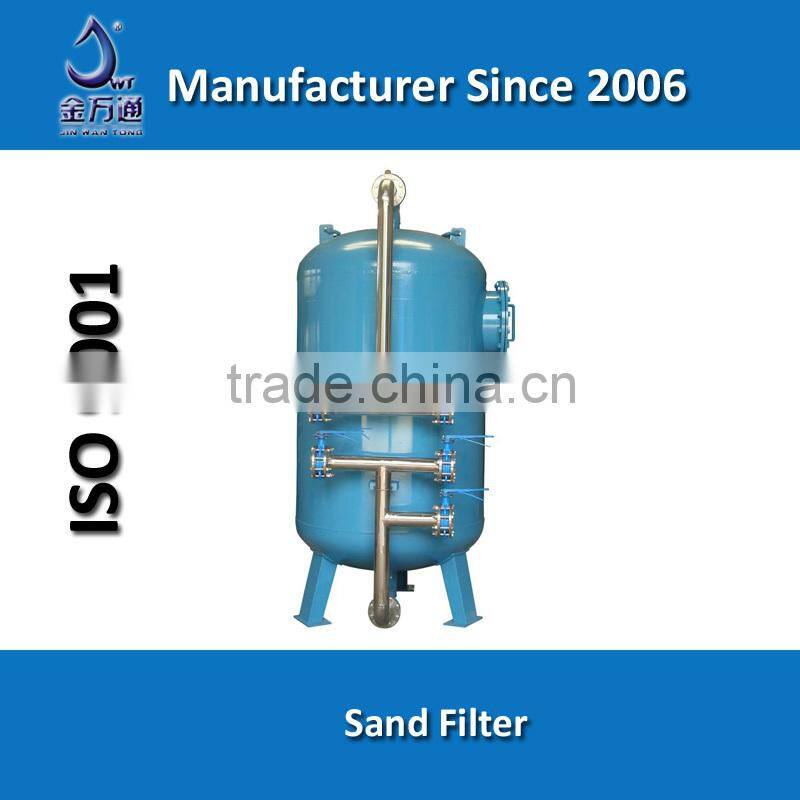

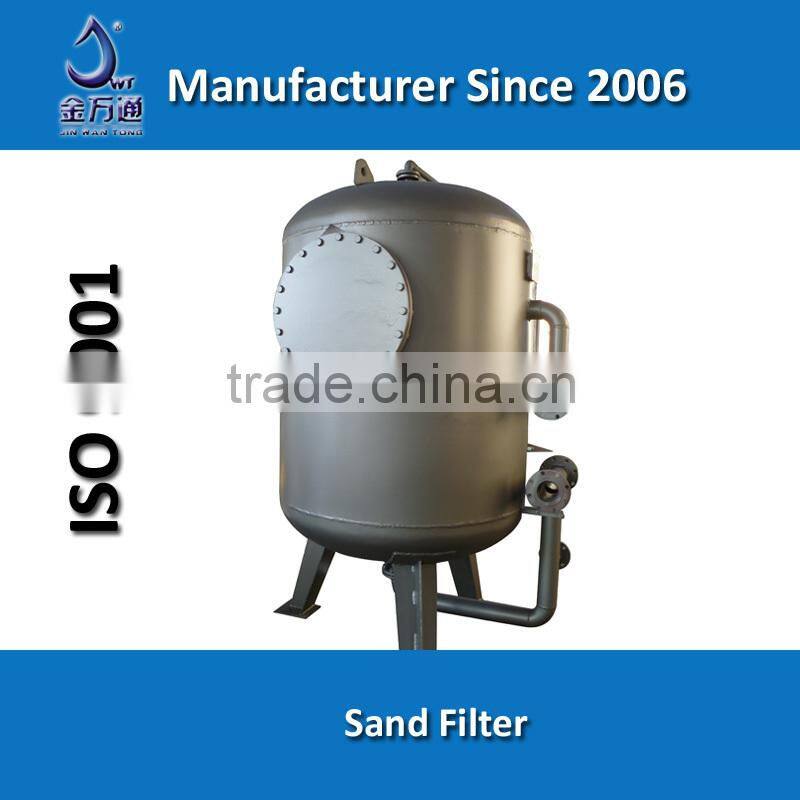

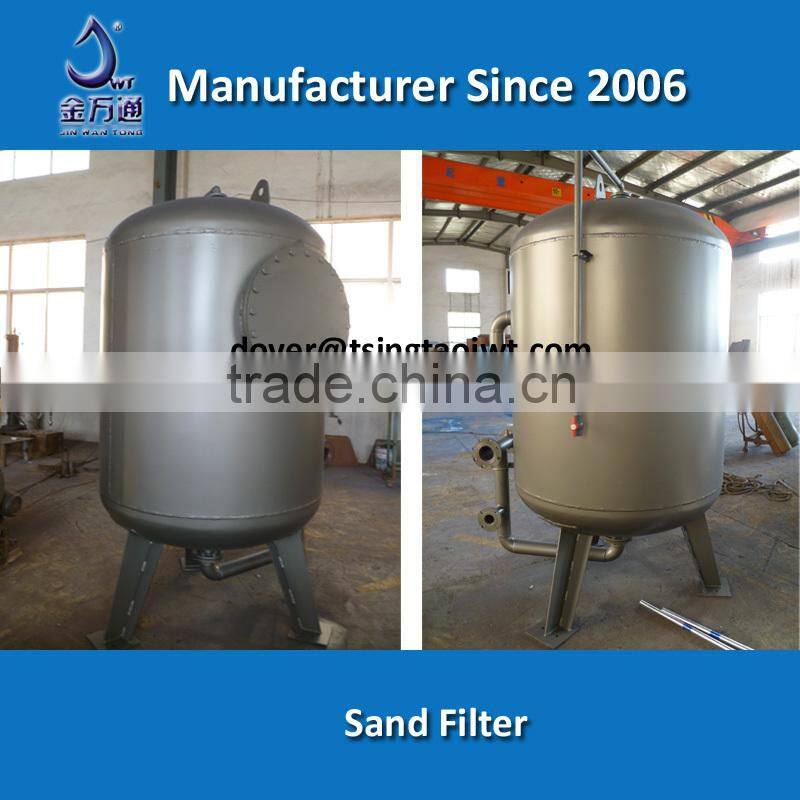

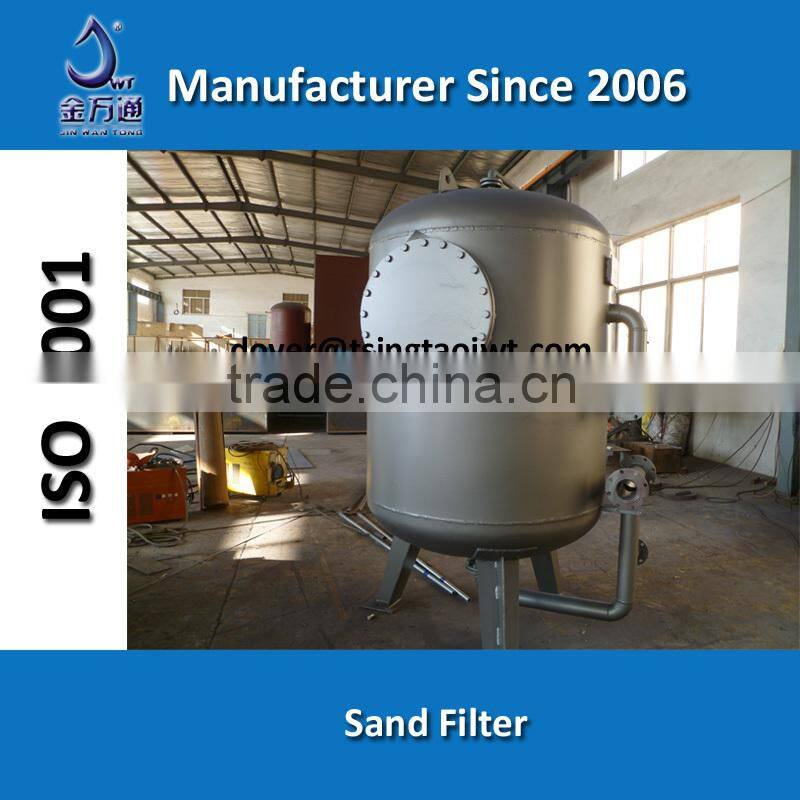

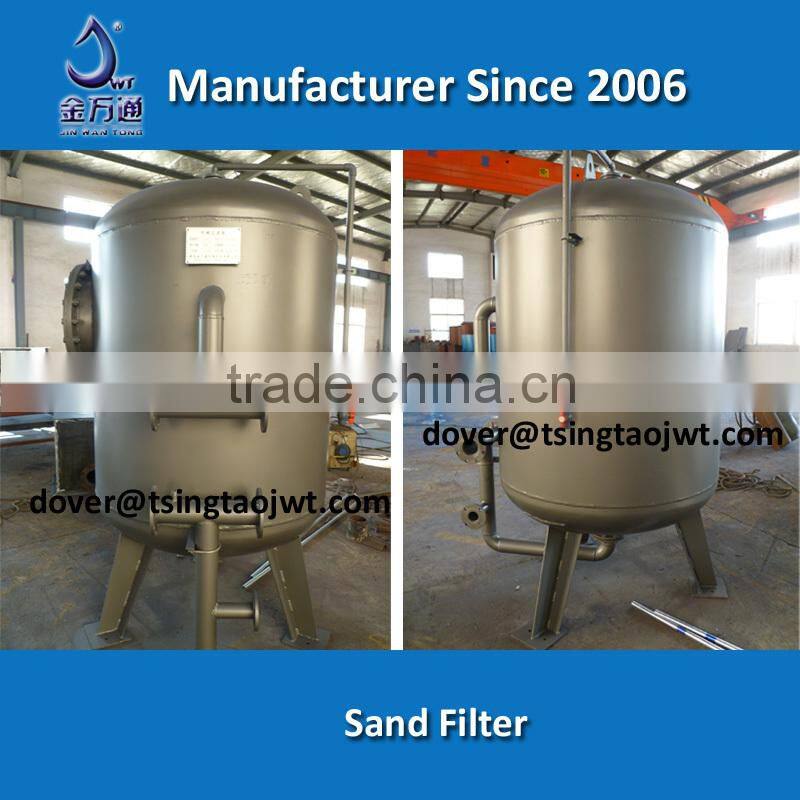

Detail images of JG series sand filter:
For more details of JG Series sand filter, please feel free to contact us.
Detail specification of JG Series sand filter:
| Model | JG-80 | JG-100 | JG-150 | JG-200 | JG-250 | JG-300 |
| Specification(mm) | Φ800 | Φ1000 | Φ1500 | Φ2000 | Φ2500 | Φ3000 |
| Max. Outflow(m3/h) | 5 | 7.8 | 17.6 | 31.4 | 49 | 70.6 |
| Working Temperature(℃) | 4-50 | 4-50 | 4-50 | 4-50 | 4-50 | 4-50 |
| Filtering Area(m2) | 0.5 | 0.75 | 1.76 | 3.14 | 4.9 | 7.1 |
| Filtering Speed(m/h) | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 |
| Filter Material Height(mm) | 1000 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Diameter*Height(mm) | Φ800*2860 | Φ1012*2897 | Φ1516*3469 | Φ2020*3610 | Φ2524*4020 | Φ3028*4480 |
| Net Weight | 790 | 980 | 1506 | 2455 | 4179 | 6355 |
