What is an activity carbon filter?
Activity carbon filter is a great water purification equipment which is widely used in drinking water, food industry, beverage industry and pharmaceutical industry to remove residual chlorine, color, smell, odor and turbidity.
Activity carbon filter is mainly composed of two parts:
01. Carbon bed: Water get filtered from up to down while traveling across activated carbon bed.
02. Supporting layer: Consisting of pebbles, gravels or something else. It is located under activated carbon layer to avoid activated carbon loss, and also it is much helpful in improving treated water quality.
Activated carbon(AC), also called activated charcoal, activated coal, or carbo activatus, is a form of carbon processed to have small, low-volume pores that increase the surface area available for adsorption or chemical reactions. It is a natural material derived from bituminous coal, lignite, wood, coconut shell and is activated by steam or chemical ways.
With different adsorption properties (e.g. bituminous carbon for high chlorine reduction capacity), we hold expertise in utilizing various blends of carbon to achieve specific water quality & contaminants reduction (e.g. coconut shell carbon for "sweet taste"). JG series activity carbon filter is specially designed for these applications. We have been over 8 years in manufacturing and designing of activity carbon filter since year 2006.
Product features of activity carbon filter:
- High efficiency, high porosity media for consistent, reliable performance at a low pressure loss.
- Durable, long-lasting and affordable.
- Compact, low-profile design, easy handling and installation.
- Activity carbon filter is your ideal choice to achieve specific water quality & contaminants reduction.
Application of activity carbon filter is as below:
- Ground water purification
- The de-chlorination of process water
- Water purification for swimming pools
- Polishing of treated effluent
- Tertiary Treatment for Sewage Treatment Plant and wastewater treatment plant.
- removal of chlorine, chloramines, organic contamination, odors, etc.
- Hot Water sanitization of pharmaceutical industries.
- Strong technical team and strict final inspections ensure excellent quality and long service life of our activity carbon filter.

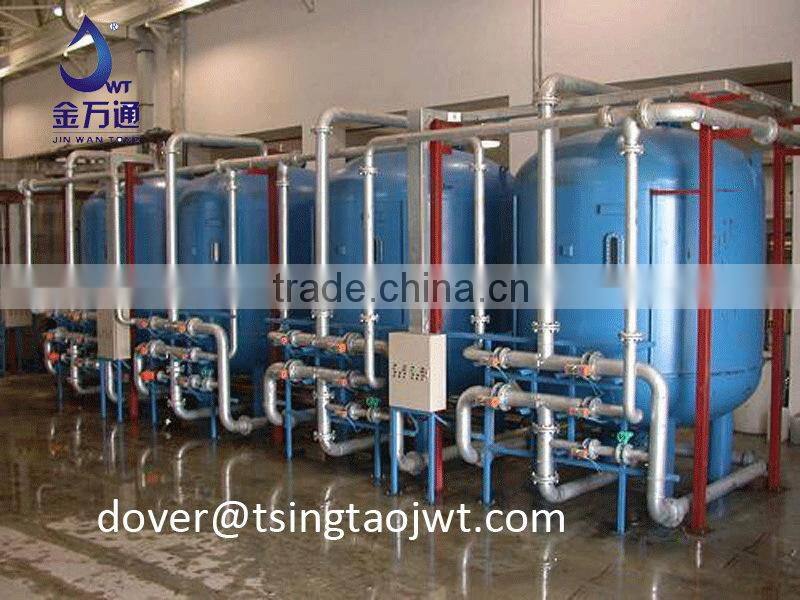

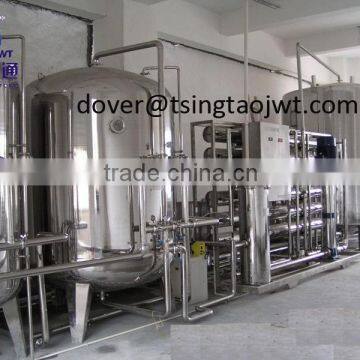

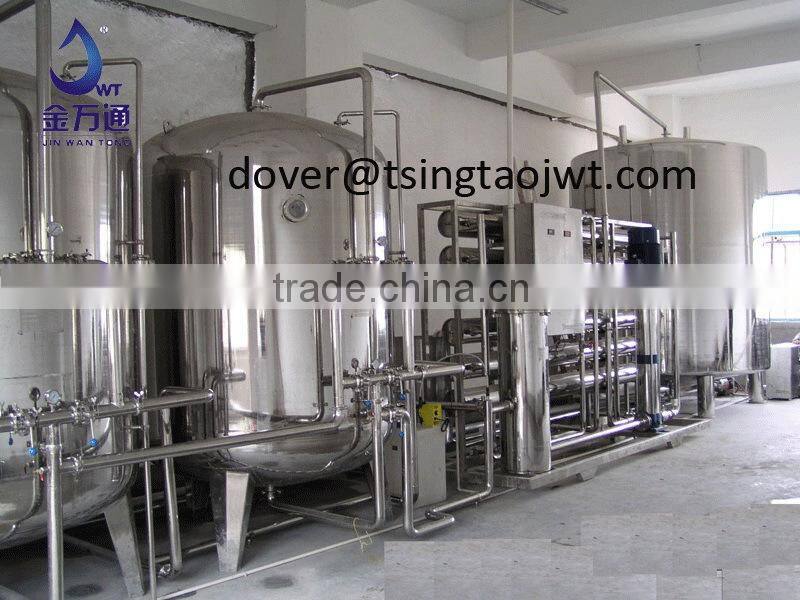

Detail images of activity carbon filter is as below:
Detail Specification of activity carbon filter JG Series:
| Model | JG-80 | JG-100 | JG-150 | JG-200 | JG-250 | JG-300 |
| Specification(mm) | Φ800 | Φ1000 | Φ1500 | Φ2000 | Φ2500 | Φ3000 |
| Max. Outflow(m3/h) | 5 | 7.8 | 17.6 | 31.4 | 49 | 70.6 |
| Working Temperature(℃) | 4-50 | 4-50 | 4-50 | 4-50 | 4-50 | 4-50 |
| Filtering Area(m2) | 0.5 | 0.75 | 1.76 | 3.14 | 4.9 | 7.1 |
| Filtering Speed(m/h) | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 |
| Filter Material Height(mm) | 1000 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Diameter*Height(mm) | Φ800*2860 | Φ1012*2897 | Φ1516*3469 | Φ2020*3610 | Φ2524*4020 | Φ3028*4480 |
| Net Weight | 790 | 980 | 1506 | 2455 | 4179 | 6355 |
