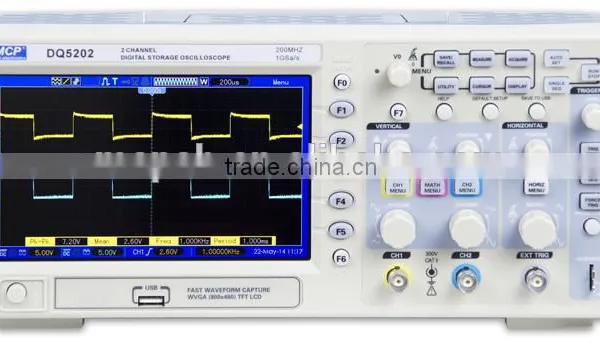

DQ5072 - two channel DIGITAL STORAGE OSCILLOSCOPE 70MHz



Features
. 1GSa/s sampling rate
. 7 inch wide rectangle colour LCD
. 32 kinds of automatic measurement function
. FFT function
. Auto-setting for quick setup and waveform acquisition
. Advanced cursor modes: manual, auto and track
. 40k memory length



TechnicalData DQ5072 DQ5102 DQ5202
Display
Type 7" rectangle color LCD
Display resolution 800 horizontal×480 vertical pixels
Display contrast Adjustable
VERTICAL SYSTEM
Sensitivity and accuracy 2mV / div~10V / div
Vertical resolution 8 bit
Width of band (-3dB) 70MHz 100MHz 200MHz
Rise time ≤5ns ≤3.5ns ≤1.7ns
Sing-shot band width 70MHz 100MHz 200MHz
Input coupling DC , GND , AC
DC gain accuracy ±3% (10mV/div~5V/div), ±4% (2mV/div~5mV/div)
HORIZONTAL SYSTEM
SEC/DIV range 4ns/div~80s/div 4ns/div~80s/div 2ns/div~80s/div
Sampling rate range 1G Sa/s
Wave forn interplation (Sinx)/x
Record length 40k
Memory length 25k (12.5k per channel)
Sampling rate and delay Time accuracy ±50ppm over any ≥1ms time interval
Delta time Measurement accuracy Single ± (1 sampling interval time+ 100ppm x rdg +0.6ns)
Average ± (1 sampling interval time+ 100ppm x rdg +0.4ns)
TRIGGER SYSTEM

Acquisition Mode

 AUTO, Normal, Single
Type Edge, Pulse Width, Video, Slope, Overtime, Alternate trigger
Hold Off Range 100ns~10s
MATH +, -, ×, ÷
FFT
ACQUIRE INPUT
Input couping DC,AC or GND
Input impedance 1MΩ±2% 20pF±3pF
Probe attenuation 1x,10x,100x,1000x
Max.input voltage 300V (DC+AC peak, 1MΩ) Voltage difference ( Δ V) between cursors
MEASUREMENT
Cursor Time difference ( Δ T) between cursors
Reciprocal of Δ T in Hz (1/ Δ T)
AUTO-Mesure Frequency,Period,Mean,Pk-Pk,Cycil RMS,Min.,Max.,Rise time,Fall time,+Pluse width, -Pulse width,Delay1-2Rise,Delay1-2Fall,+Duty,-Duty,Vbase,Vtop,Vmid,Vamp, Overshoot,Preshoot,Preiod Mean,Preiod RMS,FOVShoot,RPREShoot,BWIDTH, FRF,FFR,LRR,LRF,LFR,LFF
I/O
Standard USB(H)
CALIBRATOR SIGNAL
Output Voltage 5V (≥1MΩ load)
Output Frequency 1 kHz
POWER SOURCE 100~120V, 45Hz~440Hz; 121~ 240V, 45Hz~66Hz; 30VA Max; CAT Ⅱ
ACCESSORIES Operation manual, power cord, USB cable, probe×2, software CD-ROM
DIMENSIONS & WEIGHT 313(W) × 108(H) × 142(D)mm, 2kg
