CQ5640F - ANALOG OSCILLOSCOPE 40MHz WITH FREQUENCY COUNTER

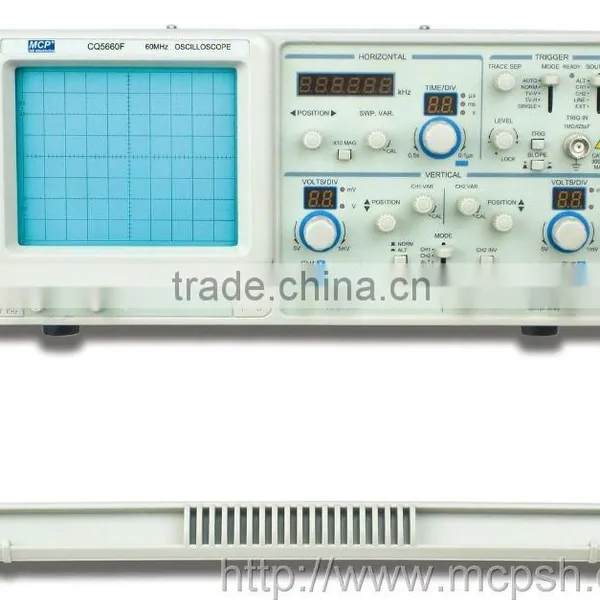

CQ5640F - ANALOG OSCILLOSCOPE 40MHz WITH FREQUENCY COUNTER thumbnail-1
CQ5640F - ANALOG OSCILLOSCOPE 40MHz WITH FREQUENCY COUNTER photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
MCP
Model Number:
CQ5640F
Contact Supplier Request Quote Chat Now
Shanghai MCP Corp.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name MCP
Model Number CQ5640F

Specifications

. Digital sweep and vert. selection
. TV synchronization
. Build-in 6 digits frequency counter
. oscilloscope

CQ5640F - DUAL CHANNEL OSCILLOSCOPE



Features
. Surface mounting technology
. Digital sweep and vert. selection
. Build-in 6 digits frequency counter
  (CQ5620F/CQ5640F/CQ5660F)
. TV synchronization
. CH1 output
. Triggering level lock
. ALT triggering function
. Z axis input





Technical Data CQ5620/5640/5660/5620F/5640F/5660F
CRT
Type 6" rectangle, internalgraticule, 0%, 10%, 90% and 100% marks
Display area 8 x 10DIV (DIV=10mm)
Accelerating voltage 2kV(CQ5620/CQ5620F) 12kV(CQ5640/CQ5640F/CQ5660/CQ5660F)
Intensity and focusing Continuously adjustable at front panel
Trace rotation Adjusted at the front panel
VERTICAL SYSTEM
Sensitivity and accuracy 1mV / DIV~5V / DIV ±3% 12 calibration steps in 1-2-5 sequence
Trimming ratio ≥2.5:1
Width of band (-3dB) DC(AC 10Hz) ~20MHz (CQ5620/CQ5620F)
DC(AC 10Hz) ~40MHz (CQ5640/CQ5640F)
DC(AC 10Hz) ~60MHz (CQ5660/CQ5660F)
Rise Time     ≤17.5ns (CQ5620/CQ5620F)
≤9.5ns(CQ5640/CQ5640F)
≤5.83ns(CQ5660/CQ5660F)
Max. Input Voltage 400V (DC + ACpeak)
Input Coupling AC, DC, GND
Input Impedance 1MΩ±3% 25pF±5pF
Vertical Mode CH1, CH2, DUAL (CHOP, ALT) ADD, CH2 inverse
HORIZONTAL SYSTEM
Sweep time 0.2us~0.5s / DIV (CQ5620/CQ5620F)
0.1us~0.1s / DIV (CQ5640/CQ5640F/CQ5660/CQ5660F)
Sweep accuracy ±3%, ±5% at x10MAG (20nS~50nS/DIV uncalibrated)
Trimming ratio ≥2.5:1
Sweep magnificaton x10MAG
Max sweep time 10nS/DIV(CQ5640/CQ5640F/CQ5660/CQ5660F)
TRIGGER SYSTEM
Trigger Modes AUTO,NORM,TV-V,TV-H
Trigger Source ALT, CH1, CH2, EXT, LINE
Trigger Polarity "+" or "-"
Trigger sensitivity 1 20Hz~2MHz 2MHz~20MHz 20MHz~60MHz
CH1 , CH2 0.5DIV 1.5DIV   2DIV
ALT    2DIV    3DIV   3DIV
EXT 0.2DIV 0.8DIV 0.8DIV
TV sync pulse 1DIV or 1V (EXT)
External trigger input Input impedance: 1MΩ±3% 25pF±5pF
Max. input voltage: 300V (DC+ACpeak) at 1KHz
FREQUENCY COUNTER
Display 6 digits LED
Accuracy 1Hz(0~1MHz),10Hz (1MHz~10MHz),100Hz (10MHz~60MHz)
Sensitivity Same as trigger system
X-Y OPERATION
Sensitivity and accuracy 5mV~5V/DIV, ±5% 10 calibration steps 1-2-5 sequence
Width of band (-3dB) DC (AC 10Hz) ~500kHz
Phase difference ≤3°or less from DC to 50kHz
Axis Z
Sensitivity 5Vp-p
Polarity Negative going input increase intensity
Input impedance 47KΩ
Usable frequency range DC~2MHz
Max. input voltage 30V (DC+AC peak) at 1kHz
CALIBRATION Voltage: 2Vp-p±2%, Frequency: 1KHz±2%, Square wave
POWER SOURCE 110~127 VAC±10%, 220~240VAC±10%, 50Hz±2Hz / 60Hz±2Hz
ACCESSORIES Instruction manual x 1, Power cable x 1 ,Fuse x 1, Probe x 2
DIMENSIONS & WEIGHT 316mm x 132mm x 410mm Approx 7.8kg
