Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > High Brigtness 3014 Smd 300*300mm LED Panel Light With CE, RoHS, PSE, FCC, C-TICK

High Brigtness 3014 Smd 300*300mm LED Panel Light With CE, RoHS, PSE, FCC, C-TICK

High Brigtness 3014 Smd 300*300mm LED Panel Light With CE, RoHS, PSE, FCC, C-TICK thumbnail-1
High Brigtness 3014 Smd 300*300mm LED Panel Light With CE, RoHS, PSE, FCC, C-TICK photo-1
US$ 90 - 100 MOQ: 2 Units
Key Specifications
Get Latest Price
LED Light Source:
Edison
Warranty(Years):
3
Input Voltage(V):
220
Contact Supplier Request Quote Chat Now
Shenzhen Cina LED Lighting Tech Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Edison
Warranty(Years) 3
Input Voltage(V) 220
Lamp Power(W) 38
Lamp Luminous Flux(lm) 2700
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Cool White
Working Temperature(℃) -30, +40
Working Lifetime(Hour) 50000
Lamp Body Material Other, Aluminum frame/ light guide plate
Certification CE, C-tick, EMC, ETL, FCC, SAA, UL
Place of Origin Guangdong, China
Brand Name CINA
Model Number CA-PL3014WF1-18W

Specifications

1.LED panel ligh,UL CE certified driver
2.Energy saving, Long life
3.Instant ON/OFF operation
4 Soft light

Special feature:

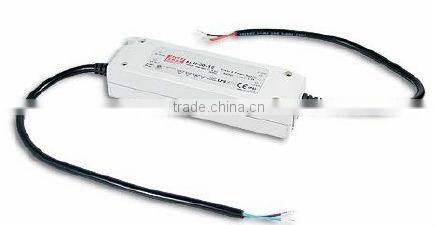

1. Quality Driver with 3-year warranty(Taiwan Meanwell driver)





High brigtness 3014 smd 300*300mm LED Panel Light with CE, RoHS, PSE, FCC, C-TICK

High brigtness 3014 smd 300*300mm LED Panel Light with CE, RoHS, PSE, FCC, C-TICK
A, High EMC, no interfere
B, Power factor>0.95
C, Power Efficiency>90%

 D, UL, TUV, PSE compliance

 E, Full protection:  short circuit, over voltage, over current and over temprature



2. High-performance Original EDISON LED (Made in TaiWan) and perfect wiring design



                High brigtness 3014 smd 300*300mm LED Panel Light with CE, RoHS, PSE, FCC, C-TICK

It has High CRI and High lumens and high reliability. Even if one led failed, the remaining LEDs will still work.



3, Safety

A, CE, RoHS, PSE, FCC, C-TICK

B, 4000V Hi-pot test pass



4,Warranty Policy

3 years warranty with free collection and free delivery. For any defects, we will solve it by either repairing any defective parts or

replace a new LED grille light.  (For more details, please ask for Warranty Statement)



5.Low Light Attenuation

The light source is the low light attenuation and high-bright LED, which the attenuation is less than 30% in 50,000 hours.The aluminum back-side housing performs an excellent heat dissipation,which guarantees a lower PN junction temperature of the LED,thus avoid light decay.



6.Environment-Friendly
While working, no ultraviolet light and infrared light radiation. And never contain any hazardous substance, such as Mercury.



7. Eyes Protection

Diffused PC-cover, homogeneous light emitting(just the same as the traditional fluorescent performs,but not like the clear PC-cover ones that might give tens of thousands of shadows), good for eyes; adopting constant current power supply, no Strobing, no harm the eyes.



8. Anti-vibration

Solid-state,anti-vibration, not easy to be broken. Can be recessed mounted or work as a pendant.

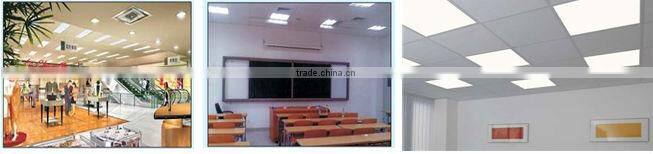

Application:

High brigtness 3014 smd 300*300mm LED Panel Light with CE, RoHS, PSE, FCC, C-TICK

1.Office lighting

2.Hotel lighting

3.Super market lighting

4.Warehouse lighting

5. Airport lighting

6.Factory lighting

7.Classroom lighting







Technical Specification:



Part No.

Main Spec.

CA-PL3014WF1-18W

(300*300mm)

Working power

18W±10%

Input voltage

AC85V-265V

Rated frequency

50-60Hz

Luminous flux

1200-1300Lm

LED quantity

96pcs

power factor

>0.95

CRI

>80

Color Temperature (CCT)

Cool white : 5700K±500K

Nature white: 4000K±400K

Warm white : 3000K±300K

Material

Aluminum frame/ light guide plate

Size

300mm*300mm

Working temperature

-40~+40°C

Storage temperature

-40~+80°C

Lighting efficiency

80Lm/W





Caution & Warning

1.Use indoor or some place where no water.

2.Work under the fixed voltage.

3.Pls operate in the right way when you install the LED Bulb in case to avoid the power harm and body harm.

4.  Non-dimmable

5,  If any doubt about the installation or use of this product, consult a competent electrician or technician .
