led suspension panel light 1200x600mm with CE, ROHS,FSE,FCC,3 YEARS WARRANTY
- 5000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
- MDL Sky LED Panel Light Model: MDL-PL-SKY
- A led panel light 12w 220v led lights for home round backlit square frameless plastic recessed foco led panel lights
- A Factory Wholesale Low Price 8W 12W 18W 24W 30W Surface Indoor Lighting Ceiling Led Panel Lights
- MDL Ultra-thin LED Panel Light Model: MDL-PLRB
- Keysight/Agilent T34450A OLED Green
- led panel light 12w 220v round backlit square frameless plastic recessed led panel light
Product Details
LED Light Source: | Efison led chip | Warranty(Years): | 3 | Input Voltage(V): | 85-265 |
Lamp Power(W): | 58 | Lamp Luminous Flux(lm): | 4000-4100 | Lamp Luminous Efficiency(lm/w): | 75 |
Color Temperature(CCT): | Warm White | Working Temperature(℃): | -20, 50 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Stainless Steel | IP Rating: | IP65 | Certification: | CE, C-tick, EMC, ETL, FCC, PSE |
Place of Origin: | Guangdong, China | Brand Name: | CINA LED | Model Number: | CA-PL3014WF42-58W |
Product Description
Specifications
led ceiling panel light 1200x6002500-2700 lumens
5050 LED chips
194 pcs of LED
3-year warranty
Special Features:
1. Quality Driver with 3-year warranty(Taiwan Meanwell driver)
A, High EMC, no interfere
B, Power factor>0.95
C, Power Efficiency>90%
D, UL, TUV, PSE compliance
E, Full protection: short circuit, over voltage, over current and over temprature

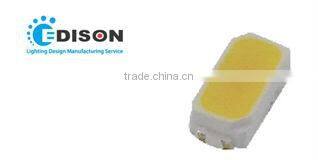

2. High-performance Original EDISON LED (Made in TaiWan) and perfect wiring design
It has High CRI and High lumens and high reliability. Even if one led failed, the remaining LEDs will still work.
3, Safety
A, CE, RoHS, PSE, FCC, C-TICK
B, 4000V Hi-pot test pass
4,Warranty Policy
3 years warranty with free collection and free delivery. For any defects, we will solve it by either repairing any defective parts or replace a new LED grille light. (For more details, please ask for Warranty Statement)
5. Low Light Loss
The light source is the low light loss and high-bright LED, which the loss is less than 5% in 10,000 hours. The aluminum back-side housing performs an excellent heat dissipation, which guarantees a lower junction temperature of the LED, thus slow down light loss.
6. Environment-Friendly
While working, no ultraviolet light and infrared light radiation. And never contain any hazardous substance, such as Mercury.
7. Anti-vibration
Solid-state,anti-vibration, not easy to be broken. Can be recessed mounted or work as a pendant.

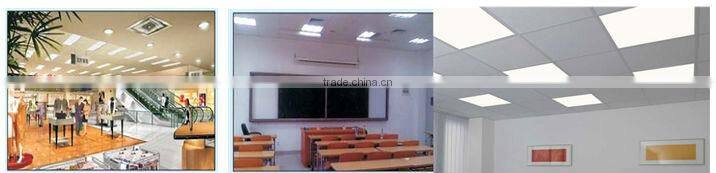

Application:
1.Office lighting
2.Hotel lighting
3.Super market lighting
4.Warehouse lighting
5. Airport lighting
6.Factory lighting
7.Classroom lighting

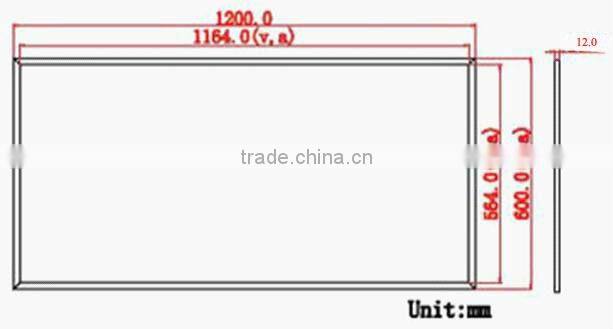

Drawing :
Technical Specification:
Part No. | Main Spec. | |
CA-PL3014WF42-58W (1200*600mm) | Working power | 58W±10% |
Input voltage | AC85V-265V | |
Rated frequency | 50-60Hz | |
Luminous flux | 4000-4100Lm | |
power factor | >0.95 | |
CRI | >80 | |
Color Temperature (CCT) | Cool white : 5700K±500K Nature white: 4000K±400K Warm white : 3000K±300K | |
Material | Alu frame/guide plate | |
Size | 1200mm*600mm | |
Working temperature | -20~+50°C | |
Storage temperature | -20~+80°C | |
Lighting efficiency | 75Lm/W | |

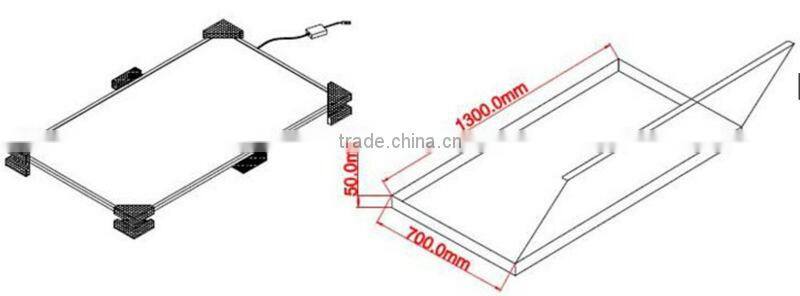

Packing details :
Part No. | Item Size | Packing Qty | Gross Weight | Carton Size(L*W*H) |
CA-PL3014WF42-58W | 1200*600mm | 1Pcs | 13kg | 1300*700*50mm |
Caution & Warning
1.Use indoor or some place where no water.
2.Work under the fixed voltage.
3.Pls operate in the right way when you install the LED panel light in case to avoid the power harm and body harm.When installing,please not the short-circuit protect such as the socket with the fuse.
4.Non-dimmable
5.If any doubt about the installation or use of this product, consult a competent electrician or technician .
