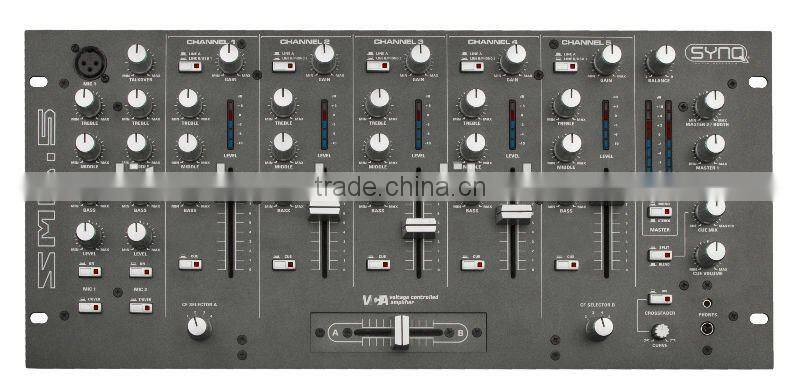

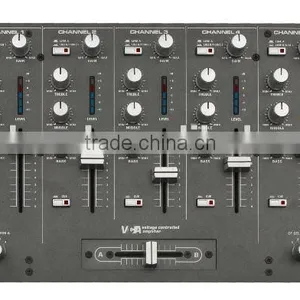

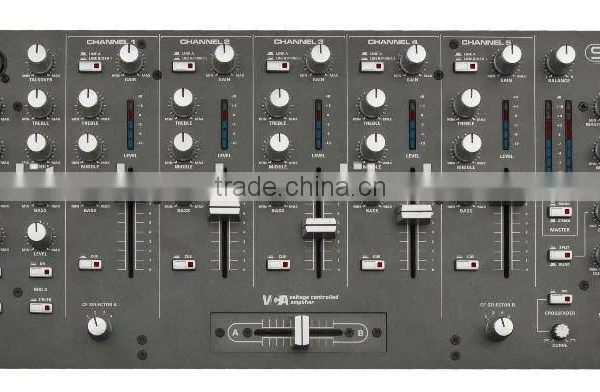

Help CenterSYNQ Pro DJ Mixer SMD-5
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SYNQ
Model Number:
SMD-5
Payment & Shipping
Payment Methods:
Port of Shipment:
Shengzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
SYNQ
Model Number
SMD-5
Specifications
5 input channels equipped with smooth dual-rail 60mm DJ-faders:Description
- A compact and robust 19"-mixer for the all-round DJs and hiring companies that don't need all those hi-tech effects but focus on reliability and perfect sound quality!
- 5 input channels equipped with smooth dual-rail 60mm DJ-faders:
- 2 channels with switchable USB(line)/line inputs, gain, 3-band EQ (+12/-26dB), PFL and input level meters
- 3 channels with switchable phono(line)/line inputs, gain, 3-band EQ (+12/-26dB), PFL and input level meters
- 2 extra DJ microphone inputs with gain, 3-band EQ and On-Air switch
- DJ microphones can be individually assigned to automatic talkover with adjustable damping
- 2 USB-soundcards on channels 1+5, 1 can also be used for direct recording of your mix on PC.
- Assignable, detachable, smooth 45mm dual-rail VCA crossfader with adjustable curve and on/off switch
- Master1 section with balance control, stereo level meter and stereo/mono switch
- Additional master2 (booth) output
- PFL section with split/blend option and PFL/main mix control
- Powerful headphones output with both 6.3mm and 3.5mm stereo jacks
- Balanced subwoofer XLR-output with active crossover and adjustable crossover frequency/level
- Master1 has both balanced XLR and unbalanced RCA/cinch outputs
- Master2 and record output, both using unbalanced RCA/cinch connectors
- Special cabinet design with recessed connector plane for space-saving rack mounting
Technical Information
Power Supply: AC 230 V, 50Hz
Power consumption: 28W
Fuse: 20mm glass fuse 250V 1A slow
Frequency response: 20-22.000Hz (+/-3dB)
THD + noise: S/N Ratio (IHF-A): >80dB @ 1kHz.
Micro inputs: 1.5mV @ 10kΩ
Line/CD inputs: 150mV @ 22kΩ
Phono inputs: 3mV @ 47kΩ
Record output: 775mV @ 600Ω
Master output: 1.5V @ 4k7Ω unbal.
Master output: 850mV @ 600Ω bal.
Tone controls CH1 to CH5: +12dB / -26dB @ 10kHz / 1,3kHz / 50Hz
Tone controls DJ MIC: +/-12dB @ 10kHz / 2,5kHz / 70Hz
Headphone: 180mW@75Ω
Dimensions: 483(W) x 220(H) x 104(D)mm (19" / 5U)
Mounting depth = 85mm
Weight: 5,2kg
