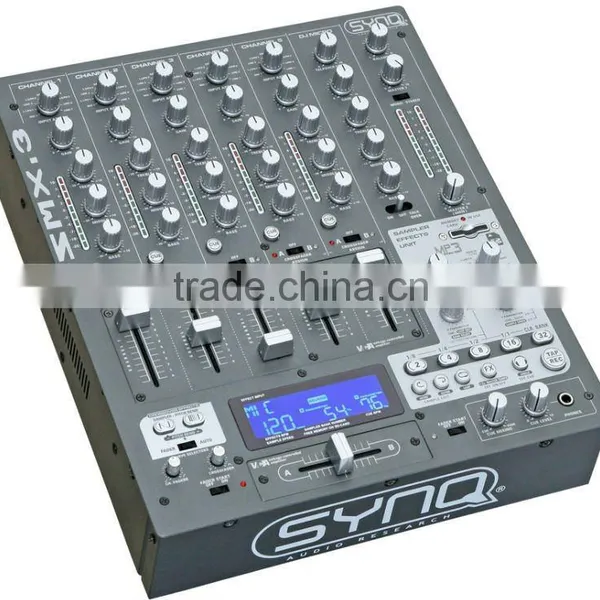

Help CenterProfessional dj Audio Mixer SMX-3
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SYNQ
Model Number:
SMX-3
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
SYNQ
Model Number
SMX-3
Specifications
12 inputs (2 mic + 7 line + 3 phono) on 6 channels (5 faders + 1 DJ mic)Description
- 12 inputs (2 mic + 7 line + 3 phono) on 6 channels (5 faders + 1 DJ mic)
- Special matrix input selector for maximum flexibility: exchange all inputs in a second!
- 2 Master outputs:
- Master1 with signal trimming adjustment(XLR + cinchCA)
- Master2 (cinchCA)
- Gain and 3-band tone controls with kill function -30dB on all channels
- LED level meters with peak memory on all channels + Master
- User replaceable, VCA controlled, high quality faders with curve control on all channels
- User replaceable, VCA controlled, cross fader with curve control (soft sharp cutoff)
- Easy A/B channel selection for cross fader
- Versatile MP3-sampler:
- Based on SDHC™-memory cards (several hours audio recording!)
- Max. 99 memory banks with each 5 samples on every SDHC™ Card!
- Stereo samples can be recorded in MP3-format (192kbps)
- Individual speed control for all samples!
- General speed control with master tempo! (pitch lock)
- Polyphony: 2 samples can be played together
- Seamless loops with editable begin and endpoints
- Sampler in/outputs assignable to any channel
- Full automatic beat counters
- Cross fader start control for compatible CD-players
- 2 Beat synchronized Cross fader mixing effects
- 8 Beat synchronized digital effects with user programmable effect presets: Echo, Autopan, Flanger, Manual filter, Auto filter, Reverb, Trans, Pitch Shifter
- Stereo effect sendeturn to connect external effect processors.
- Adjustable DJ microphone talk-over function
- High power Phones output with “cue/pgm mixing" possibility
- Firmware upgradeable with SD™/SDHC™-cards.
Technical Information
- Input/output impedance & sensitivity (EQ flat, max. gain, level meter = 0dB)
- Line 2, 4, 6, 7 input: 340mV @ 20kΩ (max = +4dBV)
- Line 1, 3, 5 input: 340mV @ 47kΩ (max = +4dBV)
- Phono input: 3,4mV @ 47kΩ (max = -36dBV)
- Mic inputs: 3,4mV @ 10kΩ (max = -36dBV)
- Return: 525mV @ 10kΩ
- Send: 525mV @ 2kΩ
- Record output: 775mV @ 1kΩ
- Masters unbalanced: 1,55V @ 100Ω
- Masters balanced: 2,55V @ 200Ω
- Headphones: 3,00V @ 33Ω
- Maximum output (EQ flat, max. gain, FX off, THD=1%, load is 100kΩ )
- Master1: More than +18dBV (8,0V)
- Master2: More than +18dBV (8,0V)
- Phones: More than + 9,5dBV (3V) @ 32Ω
- Frequency response (EQ flat, max. gain, level meter = 0dB, load is 100kΩ )
- Line: 25 - 20.000Hz +/-1dB
- Phono: 25 - 20.000Hz +1/-1,5dB (RIAA)
- Mic : 25 - 20.000Hz +1/-1,5dB
- THD + Noise (EQ flat, max. gain, level meter = 0dB, load is 100kΩ )
- Line: less than 0,05% (25 – 20.000Hz)
- Phono: less than 0,05% (1kHz A-weighted)
- Mic: less than 0,1% (1kHz A-weighted)
- Channel Crosstalk (EQ flat, max. gain, Master = 0dBV)
- Crosstalk: More than 70dB @ 1kHz (between L,R & Channels)
- Tone controls:
- Mic: -12dB / +12dB @ 70Hz – 1kHz – 13kHz.
- Input channels: -30dB / +10dB @ 70Hz – 1kHz – 13kHz.
- MP3 Sampler unit:
- Sample recording: MPEG1 layer3 44,1kHz sampled @ 192kbps stereo
- Sample playback: different bitrates, editing parameters not possible
- Polyphony: 2 voices
- Memory cards: SD™ and SDHC™ cards.
- Max. card capacity: 32GB
- File format: FAT (FAT16) or FAT32 (depends on capacity)
- General specs:
- Power supply: 230V~ 50Hz. (Europe)
- Power consumption: 40Watts
- Dimensions: 320 x 370 x 109mm (WxDxH)
- Weight : 6.8kg
