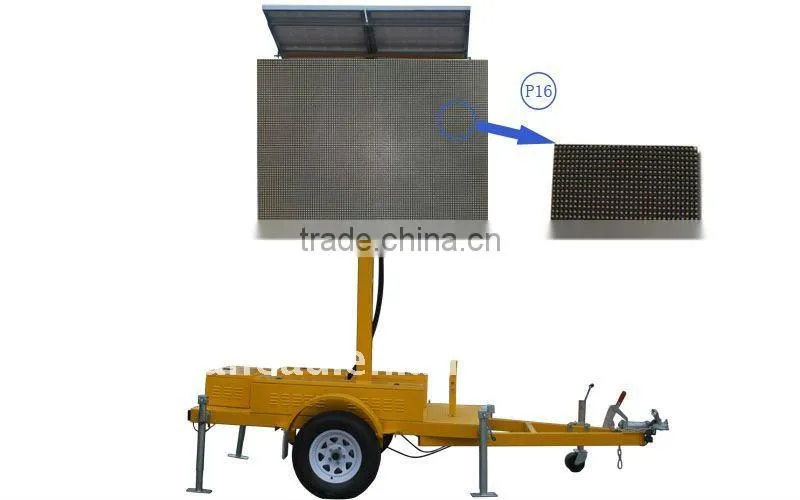

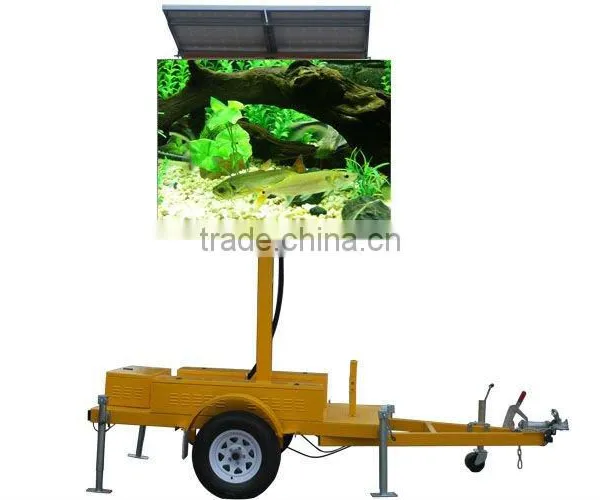

P16 LED Sign Screen Trailer

Specifications

Durable outdoor application
Multi function movable show
32hours long continous work time
Full color display effect

Item Name: Summitlite VMS P16 Single Sides Video Screen:
Item Code: SVMS1601

Keyword:  Mobile screen, custom mobile screen, P37.5 screen trailer,  P20 trailer screen, P16 mobile screen,  P12 outdoor multi use trailer screen.
VMS screen system, VMS display system!

Introduce:

After near 10 months hard reach and development in VMS Screen System, summitlite team is proud announce that a new workshop  can offer our client  the world top trailer screen and customized capability  for our client!

With our structure engineer in Traiers design and advantace in our LED display system,we can offer our cleint more service and support to achieve our client request,  Meanwhile , we can make the costdown and staywith our cleint to help him compete with some guys in this market!

It is totoally homedesign and special design for our Australian and Europe clients!  Now we can successfully combine the solar system , solar controll systems, Battery rechargeable system, online display system,  offline display ssytem, mobile trailer or ttruck all tchnology in our product, and we hope the potential  client  forsee this market will contact us and work together!  We will become a strong backup for your developing your market with your own logo!

Description:

* Multi-use portable trailer screen , P16 Double side screen solution
* Any roadway or ceremony, activities  as message display, video and advertising,   It save your time to build the screen by yourself!
* Lift system  our stardard is 1.3M
* Solar Panel system can be up to  600Watt
* Solar control system is 20A output
* Battery system 800AH  per trailer ,
* Can be widely used in advanced warning  traffic conditions, School, Pedestrian or Roadwork Zones, Used with Radar to display traffic speed, ( only one picture) , Promotion of Events, e.g Sporting, Festival, Product Advertising, e.g Car Yard, Property Development
* The Screen P16  is 1 X 1024*768 MM  can run alone long time with solar panel at least 32 hrs continous in full light!


The LED screen parameters:

These versatile LED video panels can be used to build full color video walls.  Perfect for hiring companies, fixed installations in clubs, stage background, etc:

* The strong 102.4x76.8cm ALU panels
* Easy “fast lock” design for rapid mounting and stacking
* Solid metal connectors for both power and video signals
* Pixel pitch 16mm: 3906dots/m2
* Each pixel contains 4LEDs (2R+1G+1B) for excellent brightness >6000cd/m2 (nits)
* Refresh rate >360Hz to avoid interferences with TV-camera’s
* Indoor and outdoor use: IP65 waterproof
* Viewing angle: 120° horizontal ~ 120° vertical
* Viewing distance: 10-150m (5m while used as effect wall)
* Any Windows desktop or laptop computer (with DVI output) can be used to play video, flash animations, etc. (wide file type support: AVI, MPG, MPEG, ASF, WMV, DAT, VOB, SWF, JPG, BPM, GIF, …)
* Software for setup and calibration included with the PC-interface controller (
* Support offline systems optional , make is power on and lit !
* Each Scan box (receiving card) drives 8 horizontal lines with each up to 10 panels (total = 80)
* For more we have design with power distribution in scan box as well!  Metal work design for special demands available!
* Control distance between PC and screen: up to 120m CAT-5e cabling, without repeaters.

Technical Infomation:

Pixel pitch: 16mm
Pixel configuration: 2RED + 1 GREEN + 1 BLUE
Display brightness: >6000 nits (cd/m2)
View angle (horizontal): 120 degrees
View angle (vertical): 120 degrees
Refresh Rate: >360 Hz
Video input (PC-interface): DVI
Control input (PC-interface): USB
Operating voltage: 230Vac / 50Hz
Power consumption (average): 250W/SET (Peak: 560W/SET)
working temperature: -20°C to +60°C
IP-rating: IP65
Operating system (LED Studio V10 or same level): Windows XP / Vista / Seven
One Cabinet size (pixels): 64 x 48 pixels =3072 pixels dots
One Cabinet size (cm): 1024 x 768 x 150 mm
One Cabinet weight: 48KG( including frame)

For trailers Features:

L X W X H: 3800 X 2050 X 3670MM ( macx hight include solar support)
L X W X H: 3800X2050X 2470 (Loest Hight with solar panel)
Operating height:: 4070mm
Pan rotation:  360 °
Draw bar length: A frame type 1200mm
Screens can stop in the middle hight, up and down via remote control
For corner jack stands: 15 inch, 3000LBS
Draw bar jack stand (with 6inch jockey wheel): 2000LBS
Coupler: 5000LBS; 50mm ball
Wheel type: 14 inch
Disc brake system for the wheel(no asbestos)
Hydraulic function for video panel lift
Manual Hydraulic Backup
Extension legs: 400mm extendable
3mm steal check plate
Solar tilting system: rotating 360°  ;  40° Vertically

Controll systems:

1.  Manual control for lift up and down smoothly.  (800W Rated power)
2.  Manual Control on electrical lift for solar panel

They are totally built-in  one Control box !!!

Power Supply:

Voltage: 24V input
Solar Panels: 2X 190W Solar Panels ( can be less for pretty)
Batteries: 6x 250AH deep cycle (top brand, long lifespan )
Solar Controller: 20AMP
Operation on batteries/solar Indefinite under normal conditions
Optional Extras: On board computer for on site programming
