Summit Outdoor LED Shopping Mall Screen

Summit Outdoor LED Shopping Mall Screen thumbnail-1
Summit Outdoor LED Shopping Mall Screen photo-1
US$ 1 - 1,199 MOQ: 6 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SUMMIT
Model Number:
SLVS5220
Contact Supplier Request Quote Chat Now
Summitlite International Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SUMMIT
Model Number SLVS5220
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 20

Specifications

LED Shopping Mall Screen P20
Perfect for shop promotion
quality guaranteed

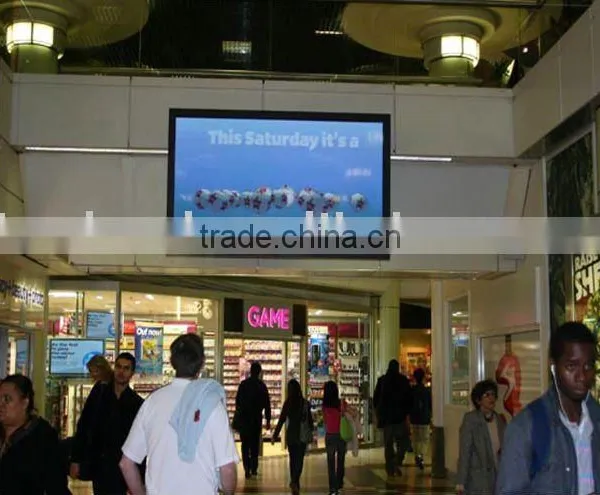

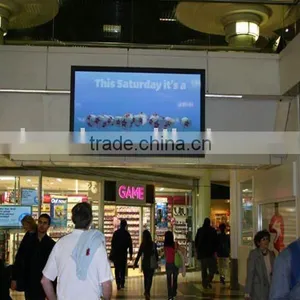

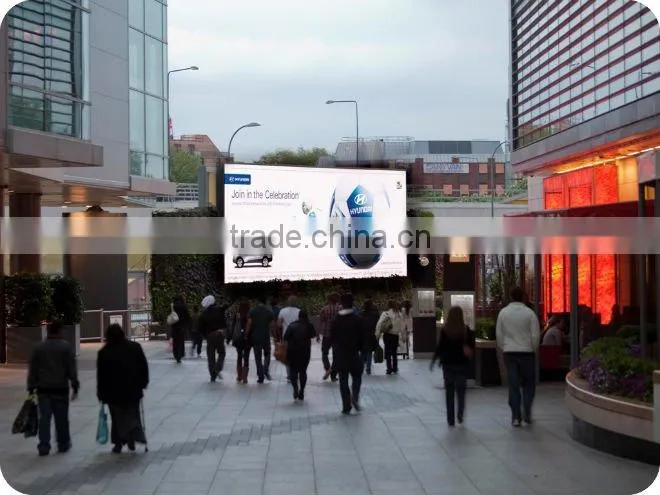

Outdoor LED Shopping Mall Screen



World needs more visual information for the receivers. There are demands for LED screens in shopping mall and supermarket.



IP64 Waterproof, easy installation, light weight, able to play video, screen of big size available



Tri-Color (RGB) LED Screen Series  adopts Φ3 oval LED as light source. The LED offers high, consistence, balanced luminance with even light distribution. Tri-Color LED Screens offer a large viewing angle even with elevations as high as 140° from the source without any significant color

shifts.



In this series, there are P10, P12, P16, P18,P20,P25 outdoor type for customers choices to meet different applications.



Product Description:

  • These versatile LED video panels can be used to build full color video walls.
  • Perfect for hiring companies, fixed installations in clubs, stage background, video screens, etc.:
  • Easy fast lock design for rapid mounting and stacking
  • Indoor and outdoor use: IP64 waterproof
  • - Viewing angle: 110° horizontal ~ 55° vertical
  • - Viewing distance: 20-250m
  • Software for setup and calibration included with the PC-interface controller (send card)
  • Each Scan box (receiving card) drives 4 horizontal lines with each up to 4 panels (total = 16)
  • Control distance between PC and screen: up to 120m CAT-5e cabling, without repeaters.



Specification:



Pixel pitch  20mm
Pixel configuration  1 RED + 1 GREEN + 1 BLUE
 Display brightness  >4500 nits (cd/m²)
 View angle (horizontal):  110 degrees
 View angle (vertical)  55 degrees
 Refresh Rate  >360 Hz
 Control distance (screen to PC-interface)  up to 120m (UTP cat5 / cat6)
 Video input (PC-interface)  DVI
 Control input (PC-interface)  USB
 Operating voltage  230Vac / 50Hz
 Power consumption (average)  100W/m² (peak: 300W/m²)
 working temperature  -20°C to +60°C
 IP-rating  IP64
 Operating system (LED Studio V10)  Windows XP / Vista / Seven
 Panel size (pixels)  32 x 32 pixels = 1024 pixels
 Panel size (cm)  64 x 64 x 8cm
 Panel weight  11kg (or 27kg/m²)
