LED Video Panel VP-P20 SCANBOX

LED Video Panel VP-P20 SCANBOX photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
BriteQ
Model Number:
VP-P20 SCANBOX
Payment & Shipping
Payment Methods:
Port of Shipment:
China local port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name BriteQ
Model Number VP-P20 SCANBOX

Specifications

VP-P20 SCANBOX, distributes digital video signals to the different video panels



LED video panel VP-P20 SCANBOXLED video panel VP-P20 SCANBOXLED video panel VP-P20 SCANBOX

VP-P20 SCANBOX
brand: BriteQ



Description:



This scan box is the link between the VP-PC Interface and the VP-P20 video panels.
The unit is a “black box” which distributes the digital video signals to the different video panels.
The following connections and controls are available:
- Via the special RJ45 input and up to 120m CAT5 cable the VP-PC Interface will be connected.
- Via the RJ45 output you can link several other scan boxes to obtain bigger video walls.

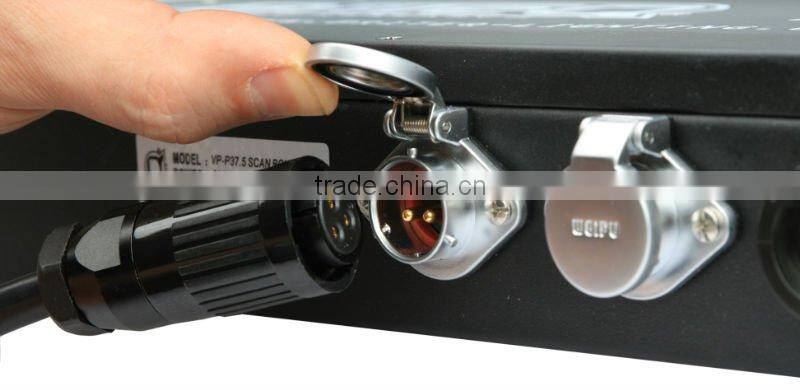

- 2 special high grade metal in/out connectors with protective cover for mains voltage

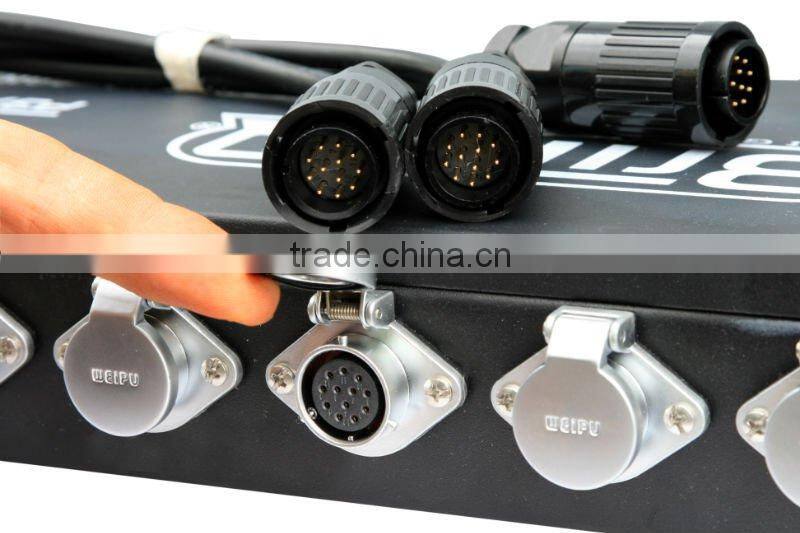

- 8 special high grade metal output connectors with protective cover to connect the video panels.

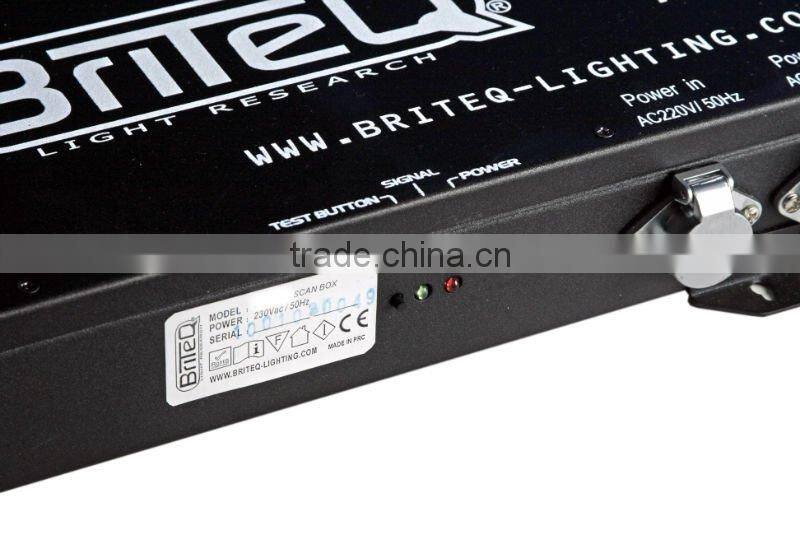

- Power LED to indicate that the unit received mains power
- Signal LED to indicate that the unit is connected to the VP-PC Interface
- Test button: used to generate different test patterns, no need to connect and configure a PC to test your video wall!
The scan box can drive a matrix of maximum 20panels (horizontal: 5 panels + vertical: 4 panels) but for increased performance maximum 16panels

(horizontal: 4 panels + vertical: 4 panels) is adviced.


Techinical information:


Mains input: 230V / 50Hz (metal housing with cover)
Signal input: RJ45 (from VP-PC Interface or other scan box)
Signal output: RJ45 (to next scan box)
Video output: 8pcs (metal housing with cover)

Pixel resolution per output:
- Max. Horizontal: 160px (10 panels, each with 16pixels)
- Preferred Horizontal: 128px (8 panels, each with 16pixels)
- Fixed vertical: 128px (8 panels, each with 16pixels)

Dimensions: 425x183x57mm
Weight: 2,6kg
