RGB LED Display VP-P20 OUTDOOR Screen SET

Specifications

 VP-P20 OUTDOOR SET
Brand: Briteq

:: Product Description

     * These versatile LED video panels can be used to build full color video walls.
     *  Perfect for hiring companies, fixed installations in clubs, stage background, video screens, etc.:
     * - The strong 64x64cm ALU panels weigh only 11kg each

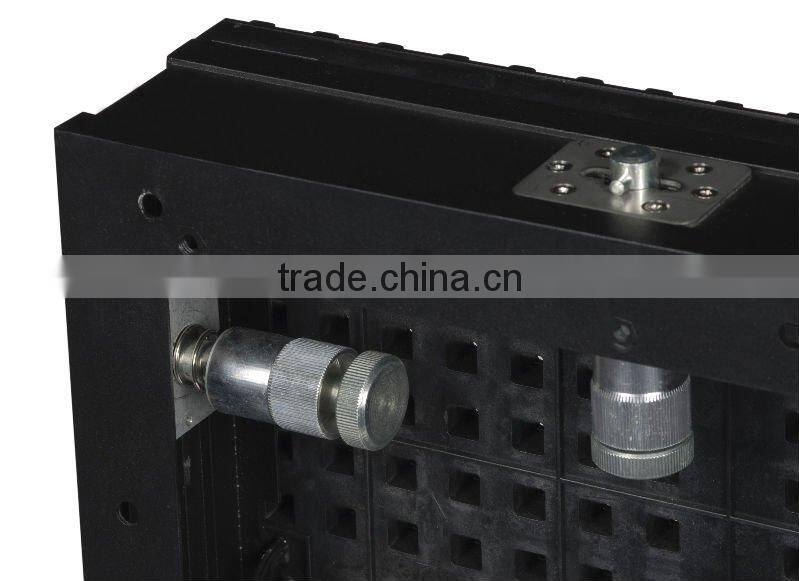

     * - Easy "fast lock" design for rapid mounting and stacking

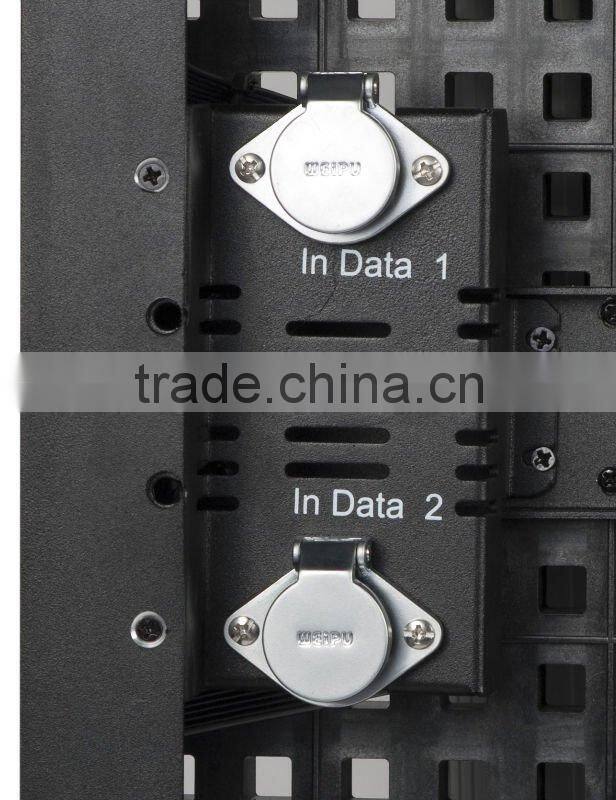

     * - Solid metal connectors for both power and video signals
     * - Pixel pitch 20mm: 2500dots/m2
     * - Each pixel contains 3pcs 5mm LEDs (1R+1G+1B) for excellent brightness >4500cd/m2 (nits)
     * - Refresh rate >360Hz to avoid interferences with TV-camera's
     * - Indoor and outdoor use: IP64 waterproof
     * - Viewing angle: 110° horizontal ~ 55° vertical
     * - Viewing distance: 20-250m (5m while used as effect wall)
     * Any Windows desktop or laptop computer (with DVI output) can be used to play video, flash animations, etc. (wide file type

support: AVI, MPG, MPEG, ASF, WMV, DAT, VOB, SWF, JPG, BPM, GIF, …)
     * Software for setup and calibration included with the PC-interface controller (send card)
     *  Each Scan box (receiving card) drives 4 horizontal lines with each up to 4 panels (total = 16)
     * Control distance between PC and screen: up to 120m CAT-5e cabling, without repeaters.
     * Sold by 6 panels, including professional flight case
     *  LED displays are hi-tech products: ask your specialized dealer for specific, technical information!

:: Technical Information

  * Pixel pitch: 20mm
     * Pixel configuration: 1 RED + 1 GREEN + 1 BLUE
     * Display brightness: >4500 nits (cd/m2)
     * View angle (horizontal): 110 degrees
     * View angle (vertical): 55 degrees
     * Refresh Rate: >360 Hz
     * Control distance (screen to PC-interface): up to 120m (UTP cat5 / cat6)
     * Video input (PC-interface): DVI
     * Control input (PC-interface): USB
     * Operating voltage: 230Vac / 50Hz
     * Power consumption (average): 100W/m2 (peak: 300W/m2)
     * working temperature: -20°C to +60°C
     * IP-rating: IP64
     * Operating system (LED Studio V10): Windows XP / Vista / Seven
     * Panel size (pixels): 32 x 32 pixels = 1024 pixels
     * Panel size (cm): 64 x 64 x 8cm
     * Panel weight: 11kg (or 27kg/m2)
