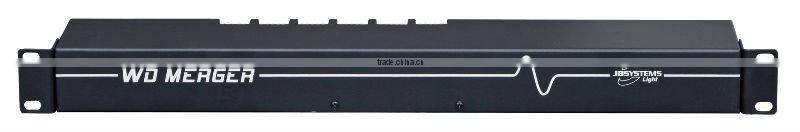

JBSYSTEMS Wall Dimmer Merger- Led wd Merger

Specifications

Item Name: Wall dimmer merger

Item code:  LED WD MERGER

Brand:  JBSYSTEMS

:: Product Description

     * The WD MERGER makes it possible to combine up to 6 LED Wall dimmers.
     * The DMX-signals from up to 6 Wall Dimmers are merged (combined) in one 24ch. DMX-signal
     * Perfect for bigger installations with several Wall dimmers in star configuration
     * Extra DMX-input with automatic priority over the connected wall dimmers
     * All 6 inputs provide 12Vdc power to the connected Wall Dimmers.

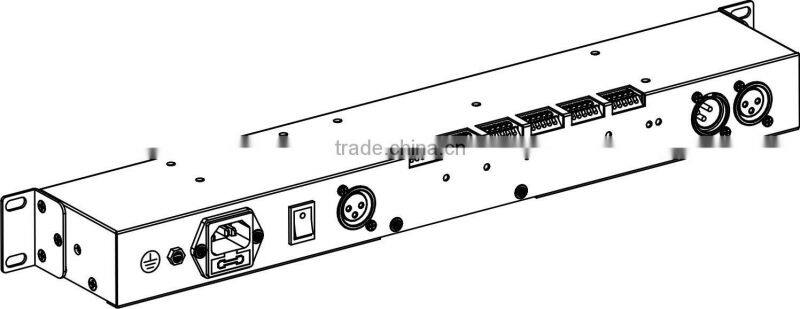

     * 19"/1U enclosure for easy rack installation
     * Extremely user-friendly and easy

:: Technical Information

     * Power Input: 100V~ to 240V~ 50/60Hz
     * DMX input: standard DMX-512
     * DMX Through: standard DMX-512 (1:1 copy of DMX input)
     * DMX output: only DMX-channels 001 to 024
     * Wall dimmer inputs:
     * Wall Dimmer1 = DMX channels 001 to 004
     * Wall Dimmer2 = DMX channels 005 to 008
     * Wall Dimmer3 = DMX channels 009 to 012
     * Wall Dimmer4 = DMX channels 013 to 016
     * Wall Dimmer5 = DMX channels 017 to 020
     * Wall Dimmer6 = DMX channels 021 to 024
     * Size: 19'' 1unit (78mm deep)
     * Weight: 1.2kg
