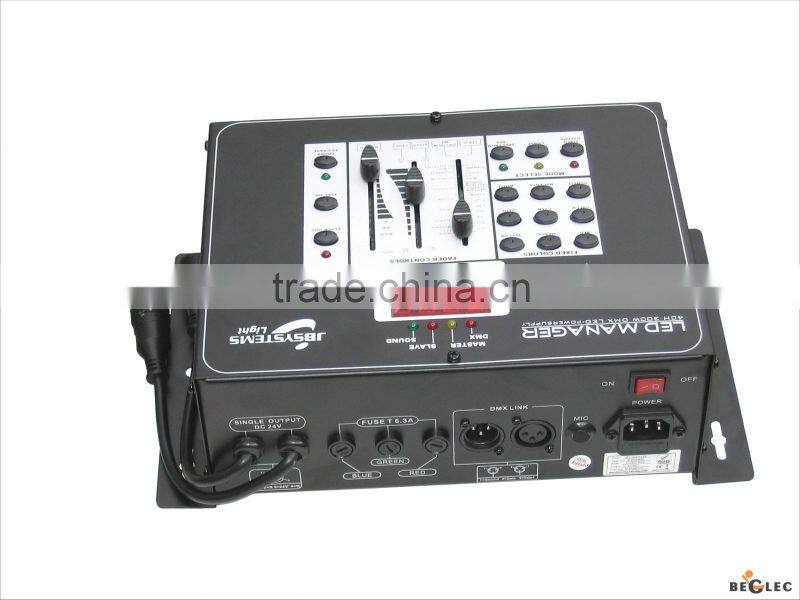

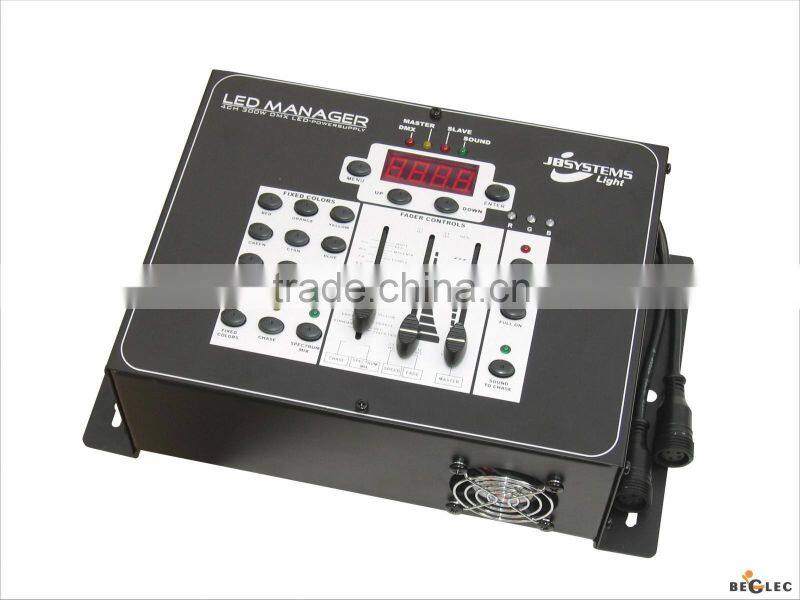

JBSYSTEMS Versatile Power Supply- Led Manager

Specifications

led manager. power supply
hold, static chase, sound chase, spectrum mix,
adjustable speed, dimmer, fader,
backup battery

Item Name: Power supply

Item code: LED MANAGER
Brand:  JB System





:: Product Description



     *  Extremely versatile power supply for all kinds of passive RGB LED-projectors.
     *  Different standalone working modes:
     *  Hold mode: Instant access to 9 pre-programmed colors
     *  Static chase mode: 12 different color chases with manual speed control
     *  Sound chase mode: 12 different color chases with audio triggering
     *  Spectrum mix: 32 different spectrum mix colors, including nice color fades
     *
     *  Adjustable speed and dimming with faders
     *  Slow color fades with adjustable fade time
     *  Blackout and 'Full on' function
     *  All functions can be controlled directly on the LED-Manager or by the optional LEDCON-01 remote.
     *  Several LED-Managers can be used in Master/slave mode to create high power, fully synchronized setups.
     *  300Watt power: 2x 150W 24Vdc outputs. (R+G+B) with short-circuit protections
     *  Built-in Clock with battery backup and NiMH battery charger (batteries not included)
     *  3 independent programmable on/off timers. (start/stop 3 different color chases at 3 different times!)
     *  Can be controlled by any standard DMX controller!
     *  4 DMX channels needed: Ch1=red, Ch2=green, Ch3=Blue, Ch4=Dimmer/strobe.
     *  Enclosure prepared for easy installing against the wall.
     *  Fan cooling for extra reliability.



:: Technical Information



 Power Input: AC 230V~ 50Hz
 Fuse: 6.3A slow blow (20mm glass)
 Backup batteries: 3x 1.2V AA-type NiMH rechargeable batteries

(optional)  Output voltage to LEDs: DC 24V common anode  Output power to LEDs: 2x 150W max. (Total = 300W max.)
     *  Red: 2x 50W max. (Total = 100W max.)
     *  Green: 2x 50W max. (Total = 100W max.)
     *  Blue: 2x 50W max. (Total = 100W max.)
DMX connections: 3pin XLR (DMX-512 standard)
DMX channels: 4 (CH1: red, CH2: green, CH3:blue, CH4:dimmer/strobe)
Audio input: None, internal microphone
Size: 330 x 202 x 106cm (see drawing below)
Weight: 6.6kg
