Specifications

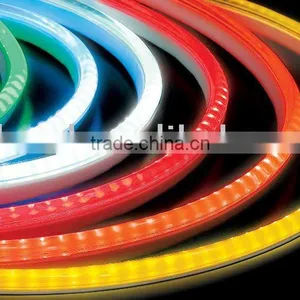

Crystal color cover version LED Neon Flexible Strip, ,R,G,B,Y,O, all color, High brightness LED Chip inside
Type2 Crystal Color cover Version LED Neon Flexible Stripe
1. Crystal cover/ Crystal color cover
3. SLED General Crystal version (SLN20XX) is powered by General grade application for such as signs and background !
5. Voltage range 24V 120V, 240V.
6. LED Spacing: 0.5" or 1.27cm.
7. Package: By rolls. But the real length depends on the integer multiple unit length.
8. Color, R, G, B, O, Y, W.
9. Cross section: 27.5*14.5mm
10. Color Temperature:
W: 5000K ~6000K
Item name rule:
You have an easy way to get our item code.
For example, the general crystal version neon flex strip SLN2050, the last two number means length per roll.
Suffix -color and - voltage like SLN2050-W-110V or SLN2010-G-24V
. We use Crystal color cover as our default version
Technical Spec:
SLN2010/SLN2050
Length in roll
240V
10m R, Y, O: 6 units B, G, W, WW (warm white): 10 units
50m R, Y, O: 32 units B, G, W, WW (warm white): 54units
120V
10m R, Y, O: 12units B, G, W, WW (warm white): 20 units
50m R, Y, O: 64 units B, G, W, WW (warm white): 108units
24V
10m R, Y, O: 90units B, G, W, WW (warm white): 130 units
50m R, Y, O: 450 units B, G, W, WW (warm white): 650units
LED Qty /unit
240V R, Y, O: 120PCS B, G, W, WW (warm white): 72PCS
120V R, Y, O: 60PCS B, G, W, WW (warm white): 36PCS
24V R, Y, O: 8PCS B, G, W, WW (warm white): 6PCS
Cut unit length:
240V R, Y, O: 1.52m B, G, W, WW (warm white): 0.91m
120V R, Y, O: 0.762m B, G, W, WW (warm white): 0.457m
24V R, Y, O: 0.102m B, G, W, WW (warm white): 0.076m
Power Consumption:
240V R, Y, O: 3.15W/m B, G, W, WW (warm white): 3.94W/m
120V R, Y, O: 3.15W/m B, G, W, WW (warm white): 3.94W/m
24V R, Y, O: 3.15W/m B, G, W, WW (warm white): 3.94W/m
Max loading by 1.6A convertor
240V R, Y, O: 122m B, G, W, WW (warm white): 97 m
120V R, Y, O: 60m B, G, W, WW (warm white): 48m
24V R, Y, O: 7.92m B, G, W, WW (warm white): 6.4m
Light output
Color Red Yellow Orange Green Blue White
Crystal Cover (Lm/Ft) 9.2 9.2 16.2 22 7.67 18.2
Crystal color cover 7 12 15.4 14.33 2.33
Accessories::
Plastic clip,
Channels: PC channel 2 m or mini Channel 5cm, Aluminum channel,
Front connector: Plug + power code + Transformer+ AC/DC convertor +front connector + male pin+shrink tube
Splice connector: male pin + shrink tube
Middle connector 2 female connector + 2 male pin + costumed cable
End connector: end cap
Glue
