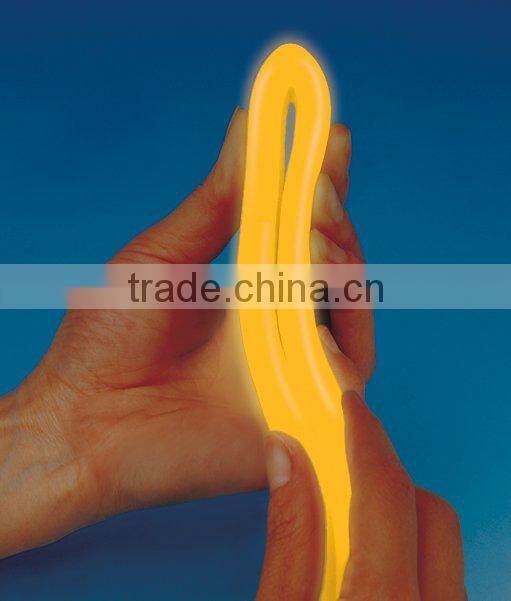

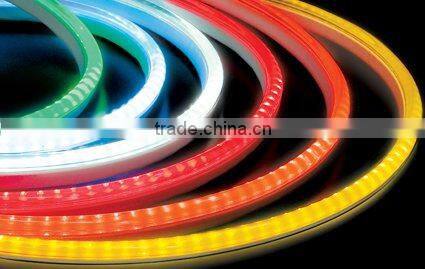

LED Neon Flex Rope Light SLN0050-I

Specifications

Type1 Economical Version LED Neon Flexible Stripe

1. Milky cover
2. SLED Professional version (SLN00XX-III) is with the highest brightness so far you can see in LED Chip market! And it keeps improving by development LED technology.
3. SLED General version (SLN00XX-II) is powered by General grade application for such as signs and background but in not high request on illuminations!
4. SLED economical version (SLN00XX-I) is special design for those limited budget on signs and designs but with similar effect up to glass neon flex.
5. Voltage range 24V 120V, 240V.
6. LED Spacing: 0.5" or 1.27cm.
7. Package: By rolls.  But the real length depends on the integer multiple unit length.
8. Color, R, G, B, O, Y, W.
9. Cross section: 27.5*14.5mm
10. Color Temperature:
   W: 5000K ~6000K
   WW (warm white): 2200K~3000K

Item name rule:

We have an easy way to get our item code.

For example, the general Version neon flex strip SLN0050-II, the last two number means length per roll.
Suffix -color and - voltage like SLN0050-I-W-110V or SLN0010--I-G-24V
Rome number (-I, -II,-III) is for LED grade the bigger number the more brightness.  We use Economical and General and Professional as our classification

Technical Spec:

SLN0010-I/SLN0050-I

Length in roll  10M, 50M

LED Qty /unit
 240V     R, Y, O:  120PCS    B, G, W, WW (warm white):  72PCS
 120V     R, Y, O:  60PCS      B, G, W, WW (warm white): 36PCS
  24V     R, Y, O:  8PCS        B, G, W, WW (warm white):  6PCS
Cut unit length:
 240V     R, Y, O:  1.52m      B, G, W, WW (warm white):  0.91m
 120V     R, Y, O:  0.762m      B, G, W, WW (warm white): 0.457m
   24V     R, Y, O:  0.102m      B, G, W, WW (warm white): 0.076m
Power Consumption:
 240V    R, Y, O:  3.15W/m     B, G, W, WW (warm white):  3.94W/m
 120V     R, Y, O:  3.15W/m    B, G, W, WW (warm white):  3.94W/m
  24V     R, Y, O:  3.15W/m     B, G, W, WW (warm white):  3.94W/m
Max loading by 1.6A convertor
 240V     R, Y, O: 122m      B, G, W, WW (warm white):   97 m
 120V     R, Y, O:  60m      B, G, W, WW (warm white):    48m
  24V     R, Y, O:  7.92m      B, G, W, WW (warm white): 6.4m
