3000kg tube ice factory with R22 refrigerant to make tube ice
- 20 Set / Sets per Month
- Guangzhou
- T/T Credit Card PayPal
-
New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
-
New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
-
200kg Dry ice pellets making machine for dry ice production
-
New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
-
New slide valve potentiometer coupling 111Q0451313
-
New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Condition: | New | Capacity: | 3000kg | Place of Origin: | Guangdong, China |
Brand Name: | CBFI | Model Number: | TV | Ice Shape: | Other, TUBE ICE |
Voltage: | 380V/50Hz/3Phase or 220V/60Hz/3Phase or different | Power(W): | 12.33w | Dimension(L*W*H): | 1980mm*1630mm*1840mm |
Weight: | 1300kg | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
ice tube machine1.Daily Capacity:1 to 20tons
2.R22/R404A
3.Ice size:16mm,22mm, 28mm,35mm
4.hot sell machine 5. Clean ice

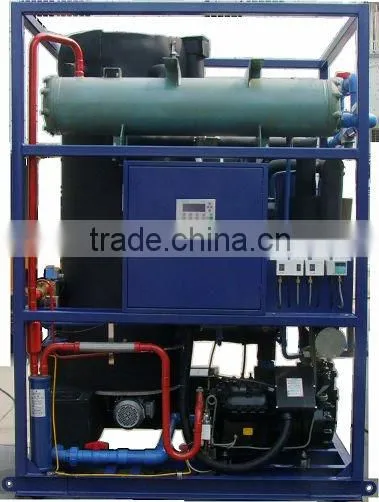

TV Series Ice Tube Machine:
Tube ice is a regular cylinder ice that has hollow in the central section of the ice.
The outer diameter is 28mm, 32mm, 35mm, the height can be 30mm to 50mm.
The inner diameter can be adjusted to the time by which the forming of the ice is required.
The tube ice has the advantages of big thickness, good-looking, long-time storage, not easy melting and good permeation.
Mainly used in daily diet, keep fresh for vegetable, fruit and aquatic products.
Tube Ice Maker Machine Models for Reference:
Item No. | Production | Compressor Rated Power | Circulating Water Pump Power | Cooling Water Pump Power | Cooling Fan Power | Ice Cutter Motor Power |
Machine Dimension |
Weight of Machine |
| Ton/24H | KW | KW | KW | KW | KW | L*W*H | KG |
TV10 | 1.0 | 3.69 | 0.37 | 1.1 | 0.18 | 0.75 | 1320*950*1800 | 900 |
TV20 | 2.0 | 7.11 | 0.55 | 1.1 | 0.18 | 0.75 | 1400*1100*1800 | 1200 |
TV30 | 3.0 | 9.68 | 0.55 | 1.1 | 0.37 | 0.75 | 1500*1100*1950 | 1500 |
TV50 | 5.0 | 17.47 | 0.55 | 1.5 | 0.75 | 0.75 | 1600*1250*2200 | 1800 |
TV100 | 10.0 | 30.89 | 0.75 | 2.2 | 1.5 | 1.5 | 1700*1300*2200 | 3500 |
TV150 | 15.0 | 42.6 | 1.5 | 2.2 | 2.2 | 1.5 | 3000*1500*2200 | 4250 |
TV200 | 20.0 | 53.2 | 1.5 | 2.2 | 2.2 | 1.5 | 3500*1500*2200 | 6500 |
Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature and ambient temperature.
1. Installation of ice tube machine is easy, only need connect water, power for the machine. All testing work wIill be finished in our factory.

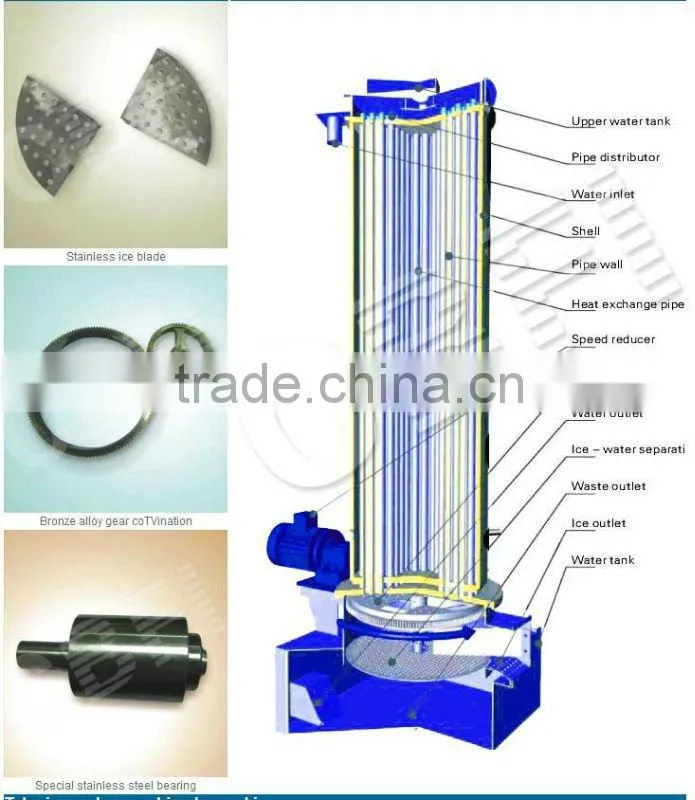

2. Ice making water formed ice in the stainless steel round plate, then, automatically enter into ice falling off procedure, the whole process control by PLC program control, no need people monitor.
3. Evaporator of tube ice machine is round plate type, so, the machine is space save.
4. Ice outgoing automatically, can connect with automatically ice packing machine or converyor belt.
5. All surface that contact with water or ice are stainless steel or other rust-resistant material insured the sanitation of tube ice
