5 tons tube ice machine price
- 20 Set / Sets per Month
- Guangzhou
- T/T Credit Card
- New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
- New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Condition: | New | Capacity: | 3000kg | Place of Origin: | Guangdong, China |
Brand Name: | CBFI | Model Number: | TV | Ice Shape: | Other, Tube Ice |
Voltage: | 380v/50hz/3phase 220v/60hz/3phase | Power(W): | 12.33kw | Dimension(L*W*H): | 1300mm*1100mm*1950mm |
Weight: | 1500kg | Certification: | CE | Warranty: | 1year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
5 tons tube ice machine price
TV Series Tube Ice Making machine

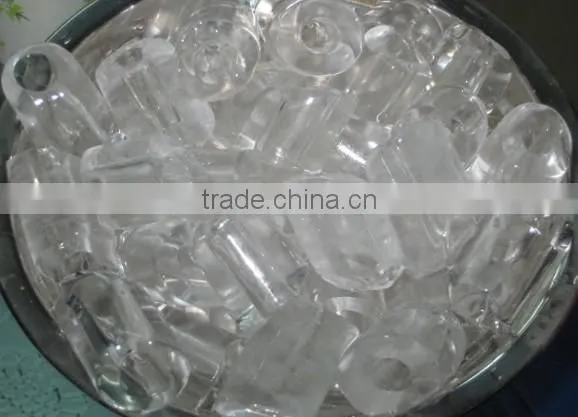

- Tube ice is a regular cylinder ice that has hollow in the central section of the ice.
- The outer diameter is 22mm, 28mm, 35mm, the height can be 30mm to 45mm.
- The inner diameter can be adjusted to the time by which the forming of the ice is required.
- The tube ice has the advantages of big thickness, good-looking, long-time storage, not easy melting and good permeation.
- Mainly used in daily diet, keep fresh for vegetable, fruit and aquatic products.
TV Series Tube Ice Maker Machine Models for Reference
Item No. | Production | Compressor Rated Power | Circulating Water Pump Power | Cooling Water Pump Power | Cooling Fan Power | Ice Cutter Motor Power |
Machine Dimension |
Weight of Machine |
| Ton/24H | KW | KW | KW | KW | KW | L*W*H | KG |
TV10 | 1.0 | 3.69 | 0.37 | 1.1 | 0.18 | 0.75 | 1320*950*1800 | 900 |
TV20 | 2.0 | 7.11 | 0.55 | 1.1 | 0.18 | 0.75 | 1400*1100*1800 | 1200 |
TV30 | 3.0 | 9.68 | 0.55 | 1.1 | 0.37 | 0.75 | 1500*1100*1950 | 1500 |
TV50 | 5.0 | 17.47 | 0.55 | 1.5 | 0.75 | 0.75 | 1600*1250*2200 | 1800 |
TV100 | 10.0 | 30.89 | 0.75 | 2.2 | 1.5 | 1.5 | 1700*1300*2200 | 3500 |
TV150 | 15.0 | 42.6 | 1.5 | 2.2 | 2.2 | 1.5 | 3000*1500*2200 | 4250 |
TV200 | 20.0 | 53.2 | 1.5 | 2.2 | 2.2 | 1.5 | 3500*1500*2200 | 6500 |
Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature and ambient temperature. |
TV Series Tube Ice Maker Machine Features
1. Installation of ice tube machine is easy, only need connect water, power for the machine. All testing work will be finished in our factory.
2. Ice making water formed ice in the stainless steel round plate, then, automatically enter into ice falling off procedure, the whole process control by PLC program control, no need people monitor.
3. Evaporator of tube ice machine is round plate type, so, the machine is space save.

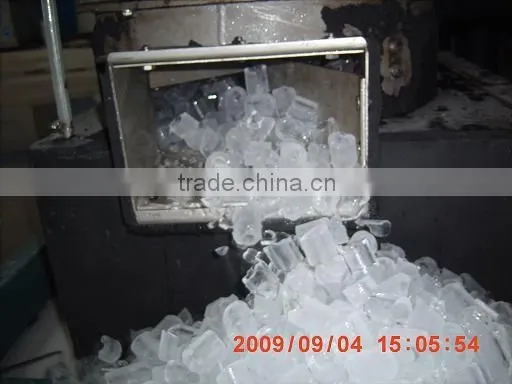

4. Ice outgoing automatically, can connect with automatically ice packing machine or converyor belt.
5. All surface that contact with water or ice are stainless steel or other rust-resistant material insured the sanitation of tube ice.

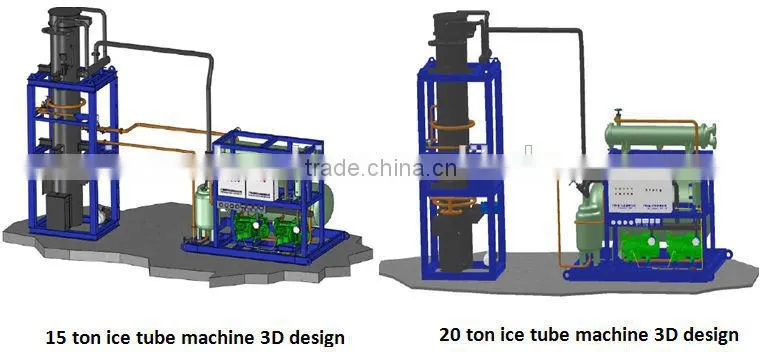

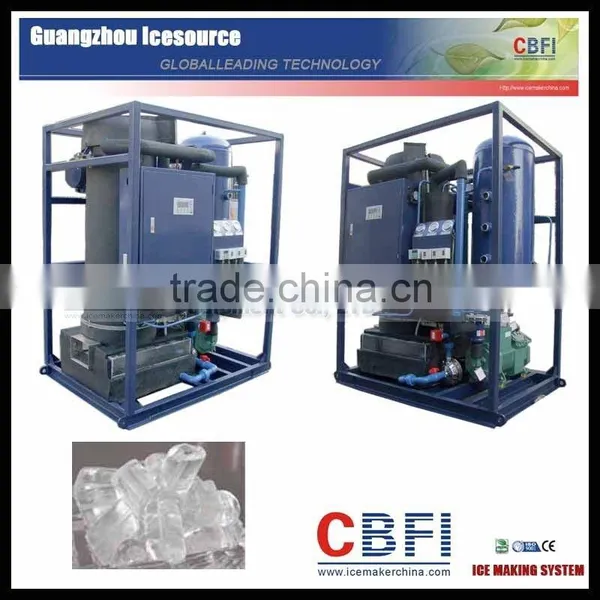

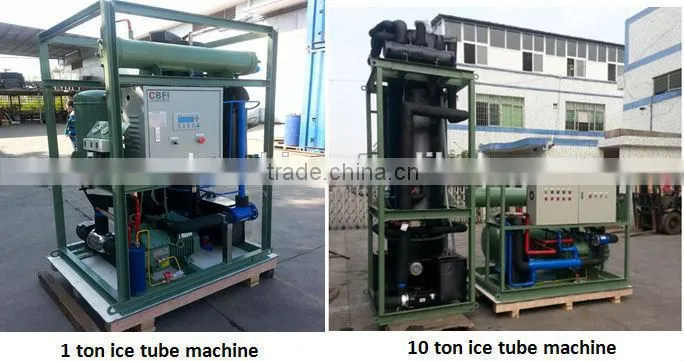

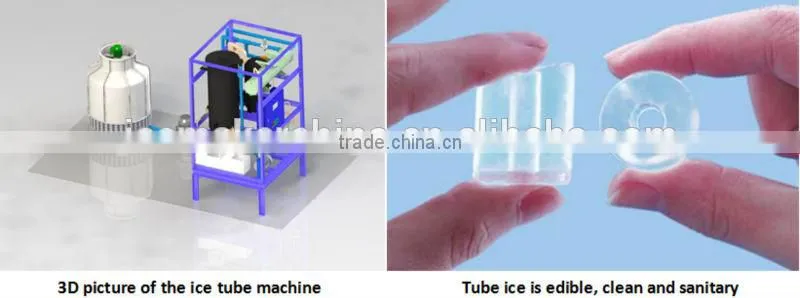

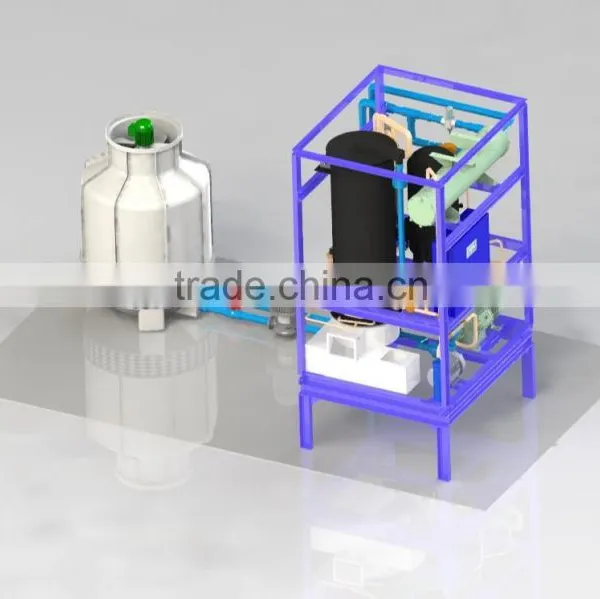

TV Series Tube Ice Maker Machine Pictures

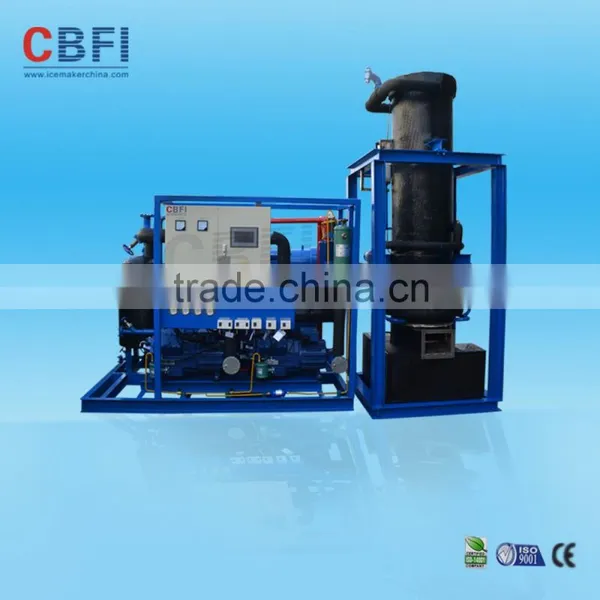

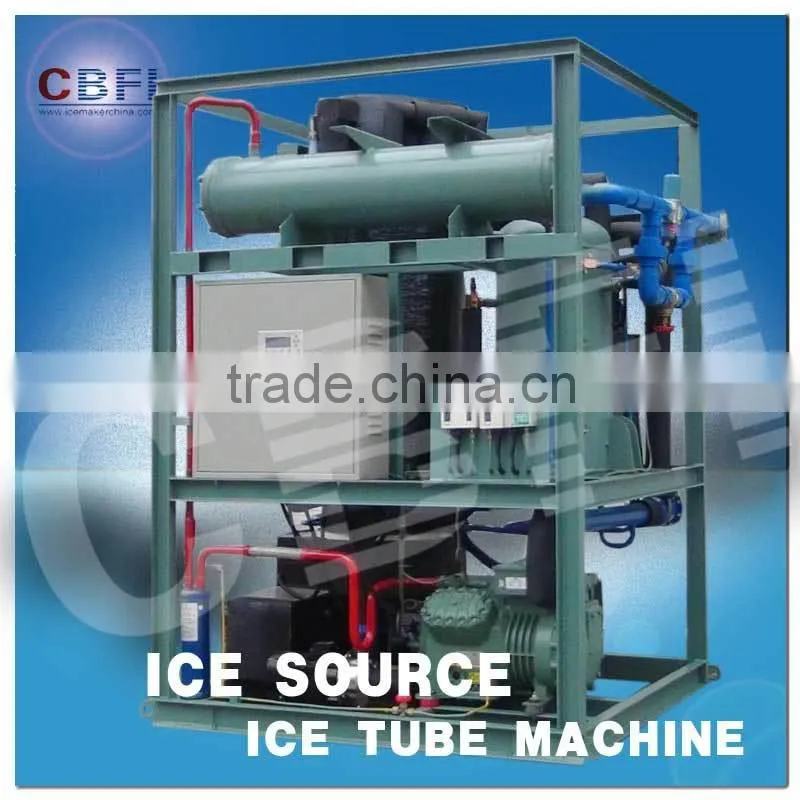

5tons ice tube machine

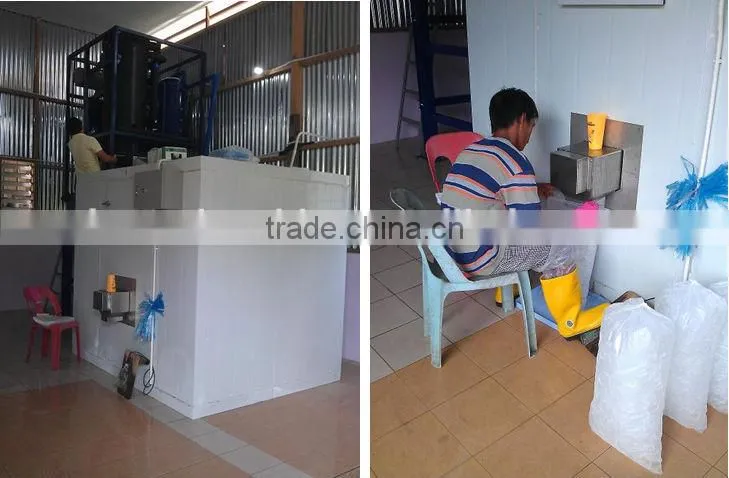

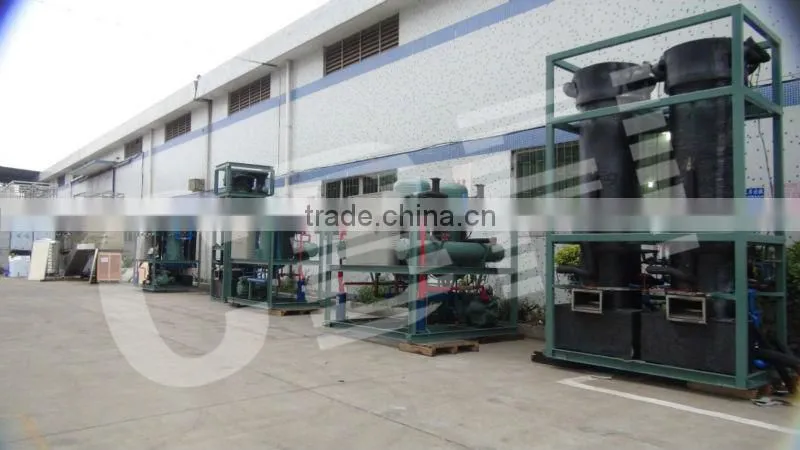

Our ice tube machine with ice storage room Clients packing ice tube in bags
Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
Guarantee Period: During 12 months after selling, maintenance and parts free of charge
