CE Approved Edible Tube Ice Machine Price Hot

CE Approved Edible Tube Ice Machine Price Hot photo-1
CE Approved Edible Tube Ice Machine Price Hot photo-2
CE Approved Edible Tube Ice Machine Price Hot photo-3
CE Approved Edible Tube Ice Machine Price Hot photo-4
CE Approved Edible Tube Ice Machine Price Hot photo-5
CE Approved Edible Tube Ice Machine Price Hot photo-6
US$ 1 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Capacity:
1000kg to 20000kg
Place of Origin:
Guangdong, China
Brand Name:
CBFI
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Capacity 1000kg to 20000kg
Place of Origin Guangdong, China
Brand Name CBFI
Model Number TV
Ice Shape Other, tube
Voltage 380v/50hz/3phase 220v/60hz/3ph
Power(W) 12.33kw
Dimension(L*W*H) 1300mm*1100mm*1950mm
Weight 1500kg
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas



CE Approved Edible Tube Ice Machine Price Hot



 CE Approved Edible Tube Ice Machine Price Hot

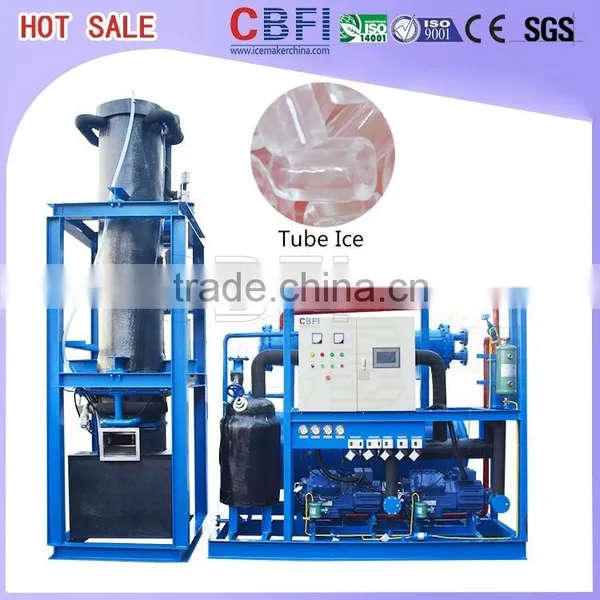

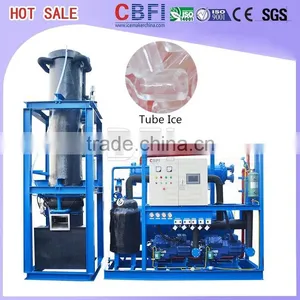

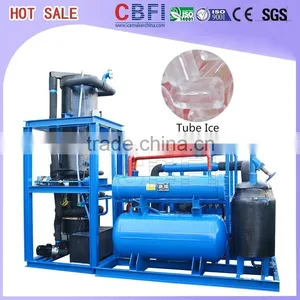

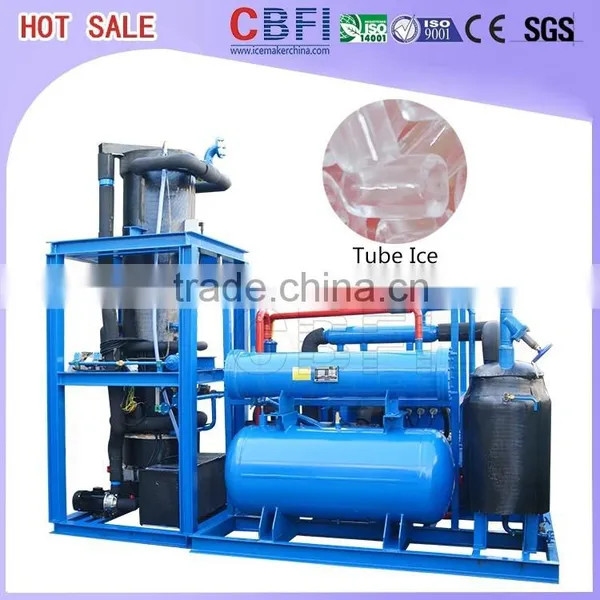

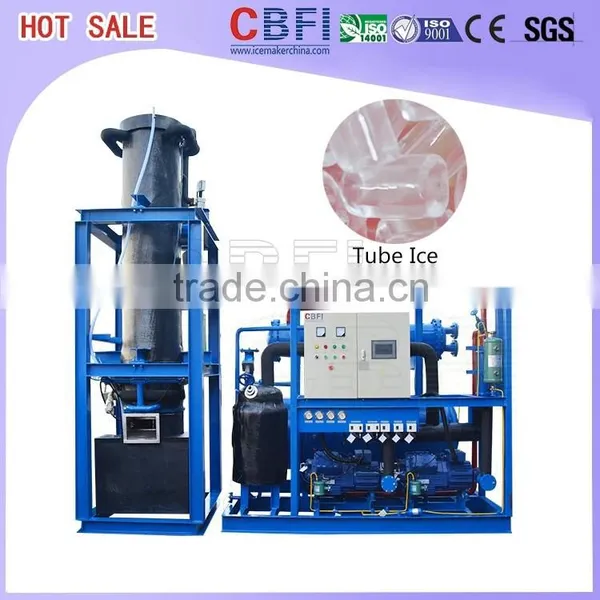

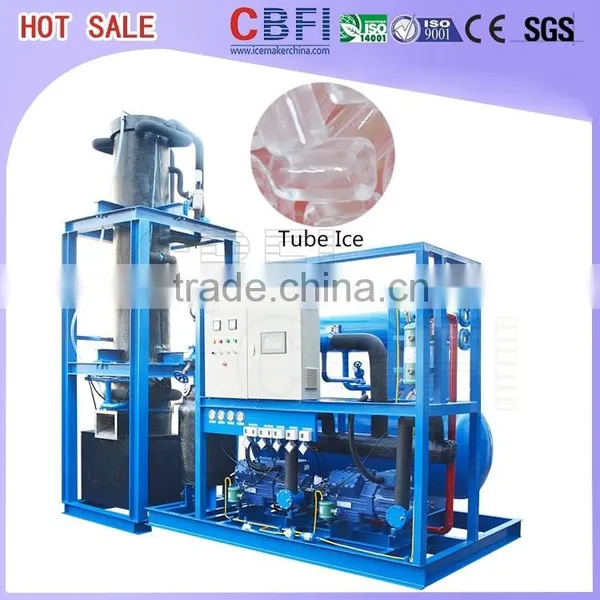

TV Series Tube Ice Machine:



Tube ice is a regular cylinder ice that has hollow in the central section of the ice.

The outer diameter is 28mm, 32mm, 35mm, the height can be 30mm to 50mm.

The inner diameter can be adjusted to the time by which the forming of the ice is required.

The tube ice has the advantages of big thickness, good-looking, long-time storage, not easy melting and good permeation.



Mainly used in daily diet, keep fresh for vegetable, fruit and aquatic products.



Tube Ice  Machine Models for Reference:



Item No.

Production

Compressor Rated Power

Circulating Water Pump Power

Cooling Water Pump Power

Cooling Fan Power

Ice Cutter Motor Power



Machine

Dimension



Weight of Machine



Ton/24H

KW

KW

KW

KW

KW

L*W*H

KG

TV10

1.0

3.69

0.37

1.1

0.18

0.75

1320*950*1800

900

TV20

2.0

7.11

0.55

1.1

0.18

0.75

1400*1100*1800

1200

TV30

3.0

9.68

0.55

1.1

0.37

0.75

1500*1100*1950

1500

TV50

5.0

17.47

0.55

1.5

0.75

0.75

1600*1250*2200

1800

TV100

10.0

30.89

0.75

2.2

1.5

1.5

1700*1300*2200

3500

TV150

15.0

42.6

1.5

2.2

2.2

1.5

3000*1500*2200

4250

TV200

20.0

53.2

1.5

2.2

2.2

1.5

3500*1500*2200

6500

























Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature and ambient temperature.



1. Installation of ice tube machine is easy, only need connect water, power for the machine. All testing       work wIill be finished in our factory.



2. Ice making water formed ice in the stainless steel round plate, then, automatically enter into ice falling off procedure, the whole process control by PLC program control, no need people monitor.



3. Evaporator of tube ice machine is round plate type, so, the machine is space save.



4. Ice outgoing automatically, can connect with automatically ice packing machine or converyor belt.



5. All surface that contact with water or ice are stainless steel or other rust-resistant material insured the sanitation of tube ice.
