New Flake Ice Plant for Fishery
- 45 Set / Sets per Month
- Guangzhou
- T/T Credit Card
- New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
- New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Condition: | New | Capacity: | 3000KGS | Place of Origin: | Guangdong, China |
Brand Name: | CBFI | Model Number: | BF3000 | Ice Shape: | Flake Ice |
Voltage: | 380v/50hz/3ph or 220v/60hz/3ph | Power(W): | 24.15kw | Dimension(L*W*H): | 1800mmx1250mmx1500mm |
Weight: | 1000kgs | Certification: | CE | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.high refrigeration efficiency and lower loss2.flake ice machine evaporator with simple structure and small land area
Large Flake Ice Machine
Ⅰ.About Flake Ice Machine
1.The temperature of ice is lower and it can reach -6°c.
2.Ice is dry and transparent, good looking shape, non-caked, good mobility and sanitary.
3.Flake shape has no sharp edges, cannot destroy refrigerating products, and it is beneficial for storage and transportation.
4.The thickness of flake ice is 1mm-2mm.No need to crush and can use at any time.
5. Daily capacity of ice flake machine can be from 0.5ton to 60tons.
Ⅱ.Ice Flake Machine Different Model:
Model | Ice making | Capacity of | Machine | Weight | |
No. | Ton/24h | kw | L*W*H | KG | |
BF500 | 0.5 | 3.75 | 1220*900*1000 | 160 | |
BF1000 | 1 | 8.85 | 1300*960*1200 | 210 | |
BF2000 | 2 | 17.84 | 1500*1200*1350 | 360 | |
BF3000 | 3 | 24.15 | 1800*1250*1400 | 1000 | |
BF5000 | 5 | 35.1 | 2100*1250*1500 | 1100 | |
BF6000 | 6 | 45.85 | 2500*2040*2200 | 1100 | |
BF8000 | 8 | 52.7 | 2100*1250*1500 | 1300 | |
BF10000 | 10 | 76.1 | 2300*1750*1740 | 1500 | |
BF15000 | 15 | 110.9 | 3200*2100*2000 | 3200 | |
BF20000 | 20 | 151 | 3400*2200*2560 | 4200 | |
BF30000 | 30 | 180 | 3800*2300*2560 | 5000 | |
BF35000 | 35 | 214.2 | 4500*2300*2800 | 6000 | |
BF40000 | 40 | 226.1 | 7800*2100*2480 | 7500 | |
BF50000 | 50 | 268.1 | 5000*2300*30000 | 10000 | |
BF60000 | 60 | 278.4 | 5500*2300*3200 | 12000 |
Note:
The above information is according to adopt water cooled condenser.
Size of machine is before installation.
It didn't mention size of cooling tower, cooling tower usually install in the outside.
Machine running condition: water temperature: 23Centi degrees, evaporate temperature: -23Centi degrees, condensing temperature 40Centi degrees, reference valve under 50Hz power supply.
Ⅲ.Customers:
We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
Welcome more and more customers come to us, visit our factory and give us suggestion, let us make progress, thanks!
IV.Packing:
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provided.
V.Ice Flake Machine Pictures:
The flake ice machine had been tested in our factory.

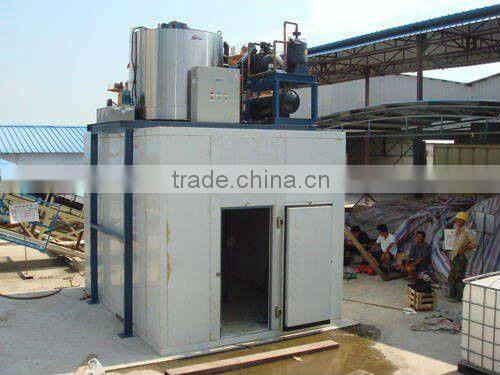

The flake ice machine is in our customers. The cold room is the storage of the machine.
The ice flake machine are in our factory. They are about to be packed and then shipped.
