Specifications
Block Ice Machine:- Daily capacity: 1- 100 tons;
- Ice size can be customized;
- Power consumption 75kw.h per

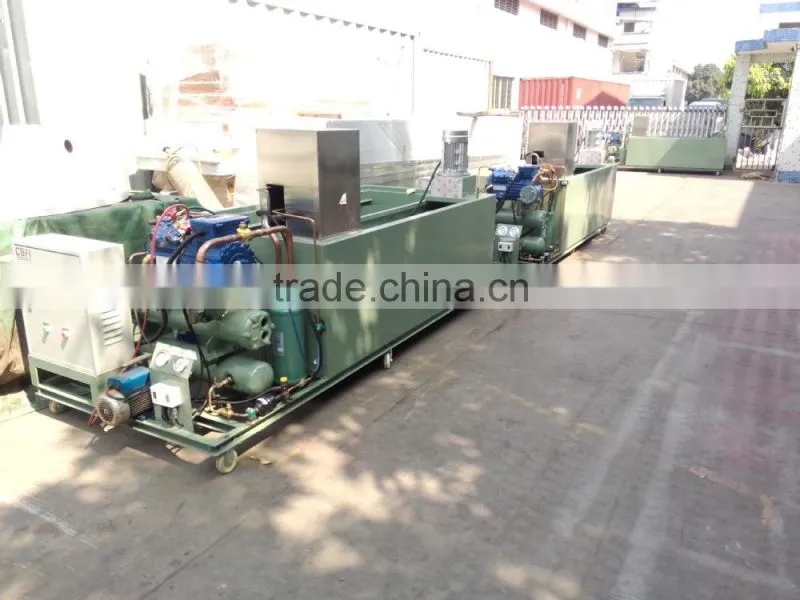

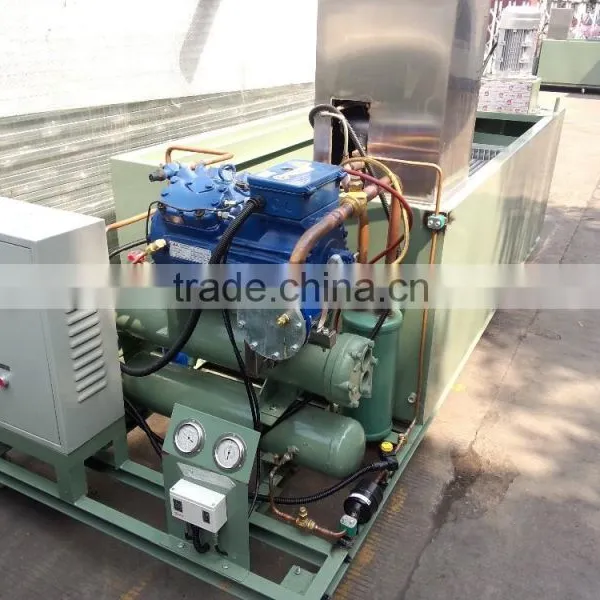

Large Capacity Block Ice Machine for seafood/fishery processing with crane system
Ice Block Making machine -
Ice block machine is a new type machine with high efficient units, which mainly focus on Africa, Middle East and Oceania. Commercial ice block machine adopts the integrated design, easy to install, customer only need to connect the power and water pipes to make it work smoothly.
Ice block machine application -
Ice source ice block machines are widely used in ports,docks, ice plants;
To fresh-keeping, cooling and food preservation in the long distance transportation for aquatic products and other food;
Cooling for spcial field;
Ice sculpture and block ice for eat.
Ice Block Maker Machine Models for Reference -
Item No. |
Production |
Compressor Rated Power |
Circulating Water Pump Power |
Cooling Water Pump Power |
Cooling Fan Power |
Machine Dimension |
Weight of Machine |
|
Ton/24H |
KW |
KW |
KW |
KW |
L*W*H(MM) |
KG |
MB10 |
1.0 |
3.92 |
2.2 |
1.5 |
0.37 |
2820*1410*965 |
900 |
MB20 |
2.0 |
7.11 | 2.2 | 1.5 | 0.55 |
1700*750*1500 2220*1440*1065 |
1100 |
MB30 |
3.0 | 9.68 | 2.2 | 2.2 | 0.75 |
1800*750*1500 3000*1380*1065 |
1300 |
MB40 |
4.0 |
12.56 | 4 | 2.2 | 0.75 |
2000*800*1600 3110*1470*1075 |
1500 |
MB50 |
5.0 | 14.6 | 4 | 2.2 | 1.5 |
2000*800*1600 4560*1380*1150 |
1700 |
MB60 |
6.0 | 18.84 | 4 | 2.2 | 1.5 |
2000*800*1600 5340*1380*1150 |
1900 |
MB80 |
8.0 | 21.30 | 4 | 4 | 1.5 |
2000*1000*1800 7720*1950*1150 |
2300 |
| MB100 | 10.0 | 26.60 | 5.5 | 4 | 1.5 |
2500*1200*2000 6360*3710*1565 |
2700 |
MB150 |
15.0 | 48.30 | 7.5 | 5.5 | 2.2 |
3100*1200*2000 9280*2260*1560 |
3700 |
| MB200 | 20.0 | 63.0 | 7.5 | 7.5 | 3.75 |
3500*1500*2200 11560*4200*1565 |
4700 |
| MB250 | 25.0 | 68.7 | 7.5 | 7.5 | 3.75 |
3500*1500*2200 12080*2260*1560 |
5700 |
| MB300 | 30.0 | 76.4 | 7.5 | 15 | 5.5 |
3500*1500*2200 11560*7080*1600 |
6700 |
| MB400 | 40.0 | 126 | 15 | 15 | 7.5 |
2*3500*1300*2200 11560*7080*1600 |
8700 |
| MB500 | 50.0 | 137.4 | 15 | 15 | 7.5 |
2*3500*1300*2000 14170*7080*1600 |
10700 |
| MB1000 | 100.0 | 274.8 | 30 | 30 | 15 |
4*3500*1300*2200 12000*13500*1450 |
21400 |
|
Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature and ambient temperature. |
Note:
1.Dimension of machine for reference only, its real size according to after final confirm size of each ice block and quantity of ice block cans.
2.It didn’t mention size of cooling tower, cooling tower is usually installed in the outside.

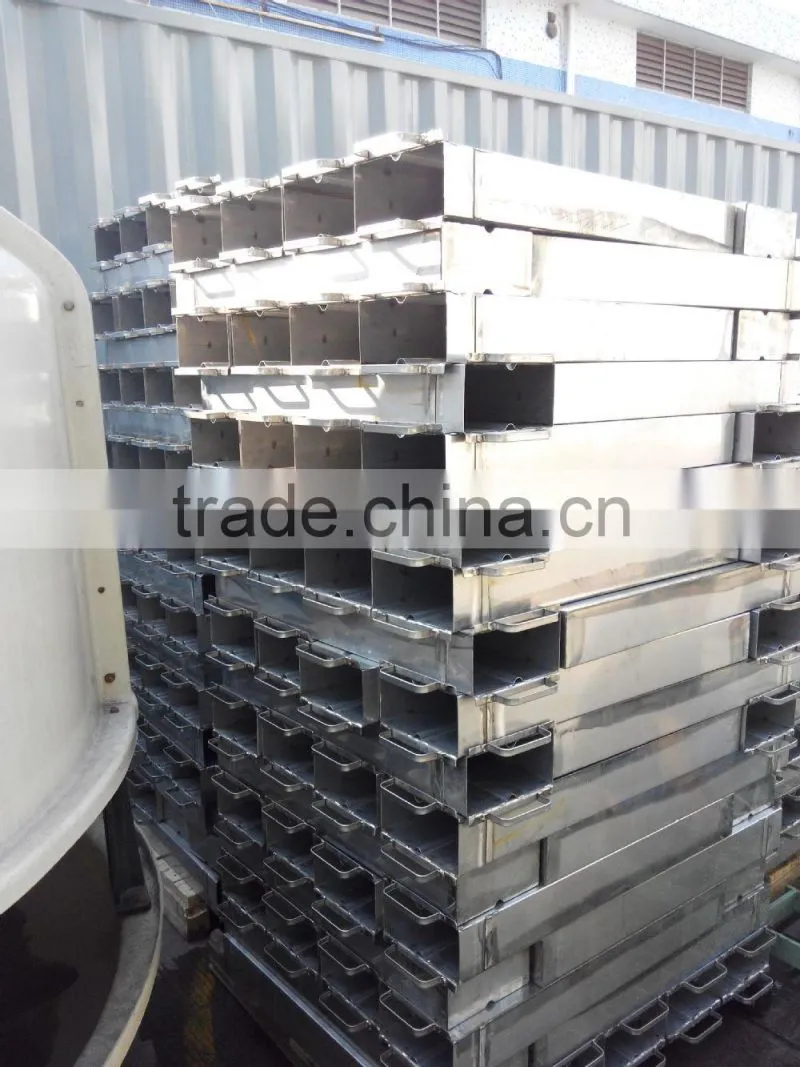

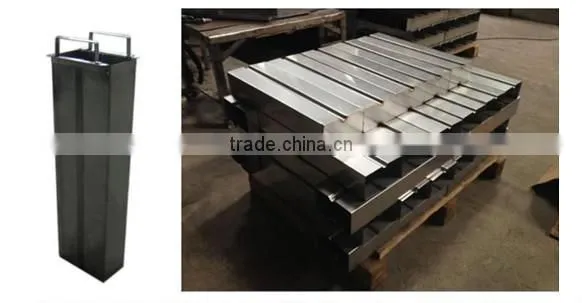

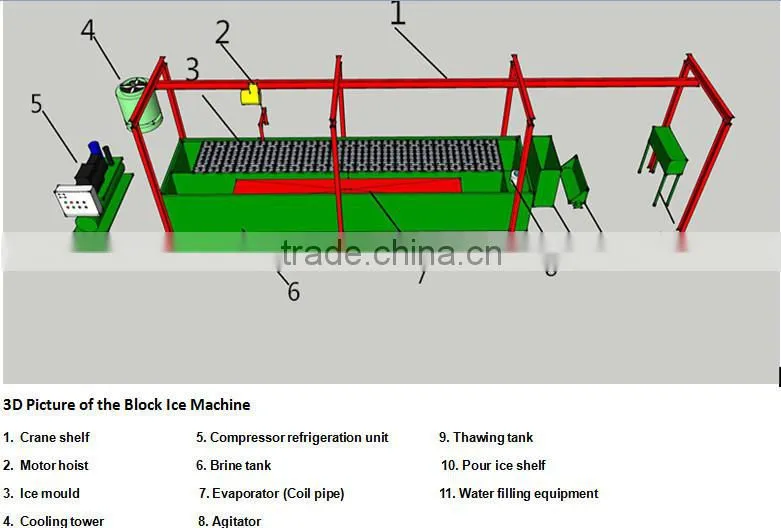

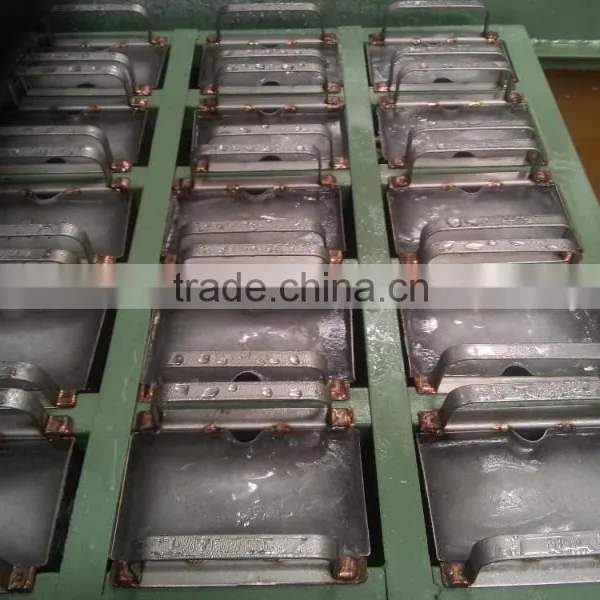

3.The completely machines contain main frame, salt water tank (inside the tank is ice block cans with shelves,on the top of the tank is covers), cooling tower, water pump, stirrer, water pipes and water pipe fittings.
Block Ice Maker Machine Features -
1. The temperature of ice is low and it can reach 10celsius belew zero.
2. Because of the block structure, it is convenient for store.
3. The integrity design and installation convenience, it can be used if you install electricity and water.
4. The principle is simple and the maintenance and repair is easy.
5. The ice-making tank adopt the Polyurethane foam technology. It promises a good hest insulation.
6. It can be made into different size of ice block machine to meet different currents' need to ice.

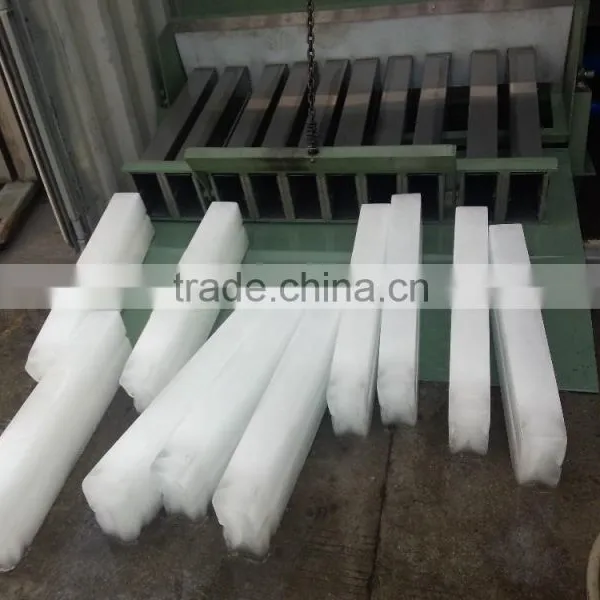

7. The large ice block machine use the crane to take ice, so the work quantity is small.
8. There are 1ton to 100tons production per day models to choose.

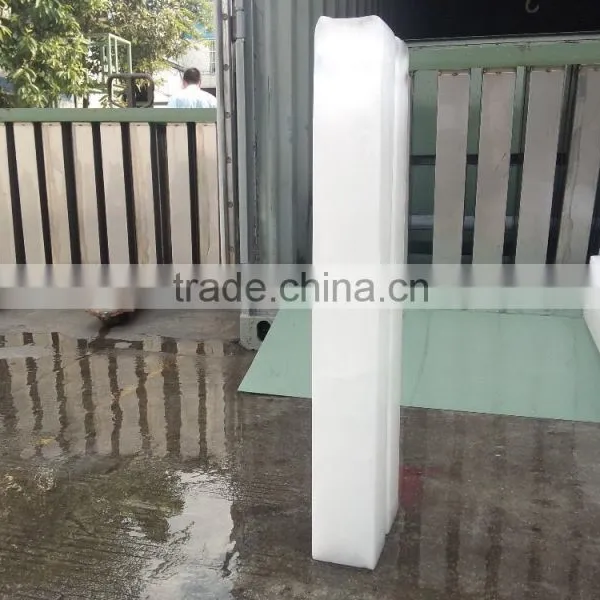

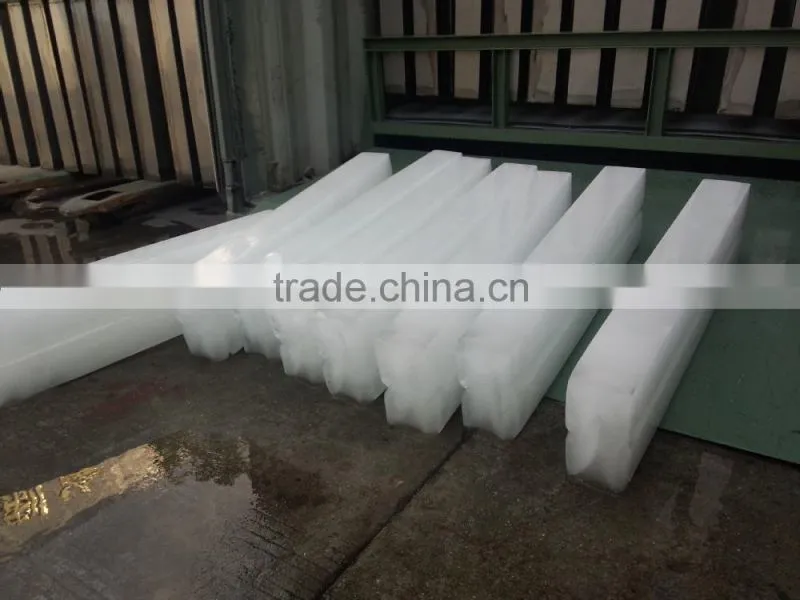

ice block weight -
The each ice block weight have 2.5kg,5kg,10kg,15jg,20kg,25kg,30kg,50kg,100kg optional, also can customized for your requirement. Different ice block weight,the make ice time is different.
For example:
1 tons per day design:
If make 5kg each ice, machine make 40pcs of 5kg per shift, make 5 shift in a day, it is 200pcs of 5kg per day.
5kg x 40pcs x 5shift = 1000kg.
If make 10kg each ice, machine make 25pcs of 10kg per shift, make 4 shift in a day, it is 100pcs of 10kg per day.
10kg x 25pcs x 4sfhit = 1000kg.
2 tons per day design:
If make 5kg each ice, machine make 80pcs of 5kg per shift, make 5 shift in a day, it is 400pcs of 5kg per day.
5kg x 80pcs x 5shift = 2000kg.
If make 10kg each ice, machine make 50pcs of 10kg per shift, make 4 shift in a day, it is 200pcs of 10kg per day.
10kg x 50pcs x 4sfhit = 2000kg.
3 tons per day design:
If make 5kg each ice, machine make 120pcs of 5kg per shift, make 5 shift in a day, it is 600pcs of 5kg per day.
5kg x 120pcs x 5shift = 3000kg.
If make 10kg each ice, machine make 75pcs of 10kg per shift, make 4 shift in a day, it is 300pcs of 10kg per day.
10kg x 75pcs x 4sfhit = 3000kg.
5 tons per day design:
If make 5kg each ice, machine make 250pcs of 5kg per shift, make 4 shift in a day, it is 1000pcs of 5kg per day.
5kg x 250pcs x 4shift = 5000kg.
If make 10kg each ice, machine make 125pcs of 10kg per shift, make 4 shift in a day, it is 500pcs of 10kg per day.
10kg x 125pcs x 4sfhit = 5000kg.

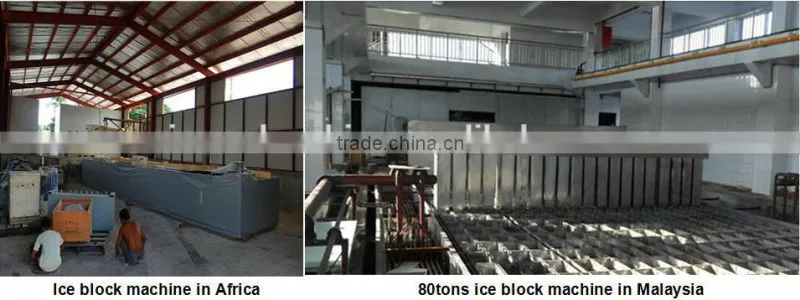

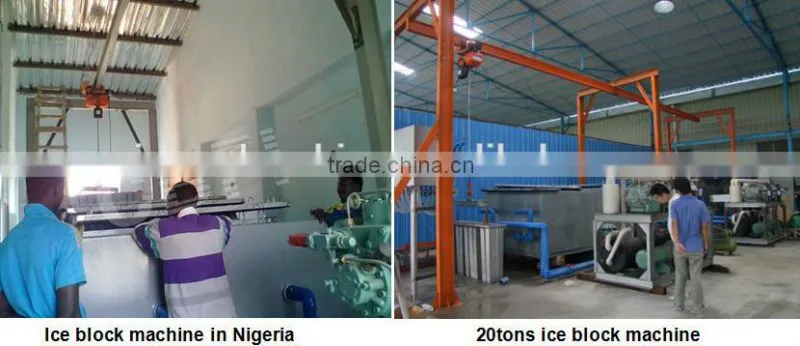

Block Ice Maker Machine Projects -
Ice source ice block machine daily capacity:1ton to 100tons. we have sample project for 100tons in Malaysia, the 60 tons, 80 tons, 30 tons, 20 tons also have.

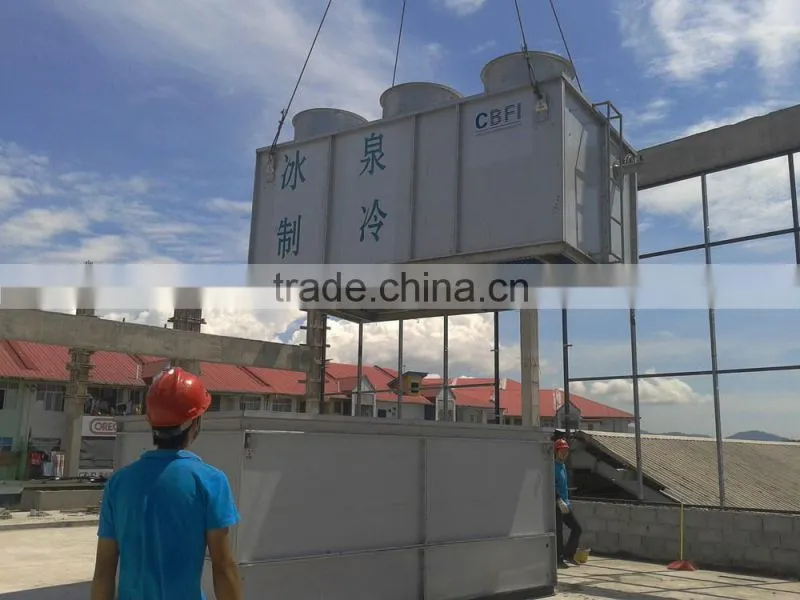

100 tons block ice machine project in Malaysia
We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
1. Standard wooden case for packing main frame of ice block machine, containerized design no need packing;

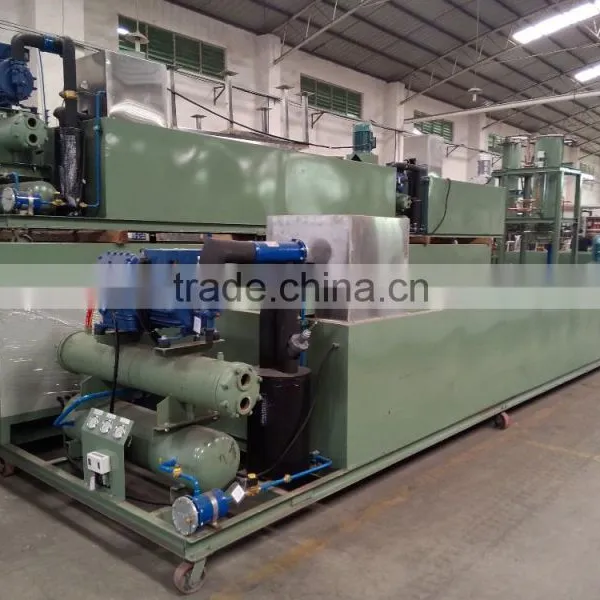

2. Machine installed completely and strictly tested in our factory before shipping;
3. Completely machine: ice machine, cooling tower, water pumps, water pipes, water pipe fittings;
4. Customer only need prepare power and water for running the machine;
5. All required components for install the machine will be provided.
The machine unit had been tested in our factory for 3days continuously.So,the machine unit can start once electric power has been connected and water supply has been connected.
CBFI , Guangzhou Icesource Refrigeration Equipment Co., Ltd is founded in November, 2004. We located in Panyu District, Guangzhou city, Guangdong Province, which is near two famous ports of South China - Nansha port and Huangpu port – and Baiyun International Airport.
We specialize in research, design, produce and sell large production of ice block machine, ice cube machine, ice plate machine, ice tube machine and relative machines and its accessory such as cold room, crane, ice crushing machine, etc.
We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
1.The payment can be T/T,L/C,Western Union, Money Gram and in Cash.
2.The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance 70% should be paid before shipping.
3.The delivery time normally is 30 days after receive the deposit.
4.If necessary, we will arrange the shipping for you.
