Specifications
commercial block ice maker1.20feet contianer:5ton
2.40feet container:10ton
3.Block ice:25kg
4.Model:SS304
commercial ice block machine in low price :

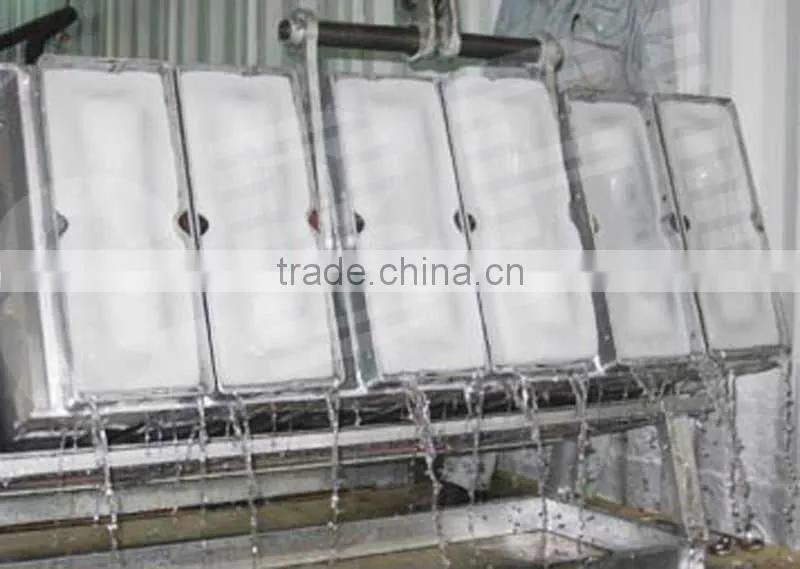

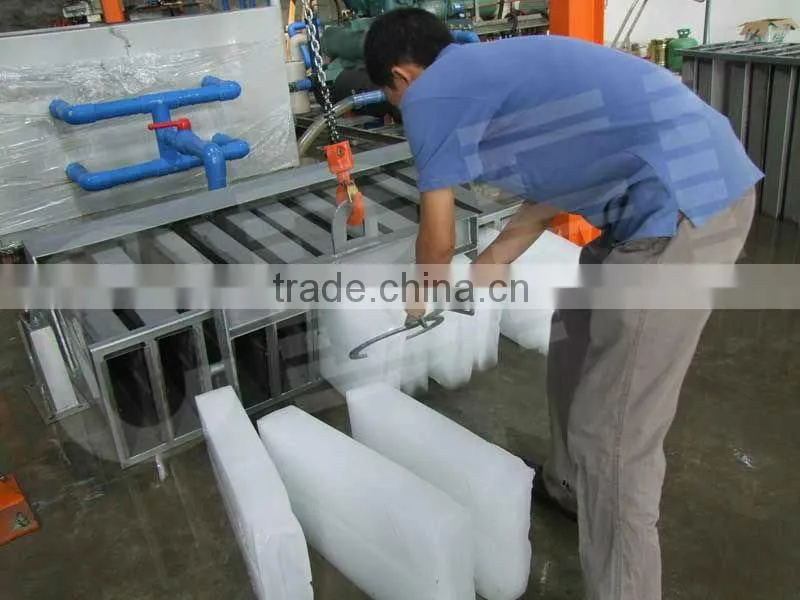

Ice block making machine for produce big block ice, can design each ice block as 2.5kg, 5kg, 10kg, 15kg, 20kg, or 25kg......
It is big ice, so can keep for long time. For some country, specialy, Africa country the power supply is not steady, so need big ice keep fresh for food or some other things or chilling drinks and water.
Daily capacity of ice block machine can be from 1ton to 20tons.
Ice block machine models for your reference:
Model |
Capacity |
Compress Power |
Motor Power |
Voltage |
Frequency |
Outer Dimension(mm) |
||
No. |
Ton/24h |
KW |
KW |
V |
Hz |
L×W×H |
||
MB10 |
1.0 |
3.8 |
0.55 |
230/380/415 |
50/60 |
1200 |
1000 |
600 |
MB15 |
1.5 |
5.6 |
0.75 |
230/380/415 |
50/60 |
1600 |
1200 |
800 |
MB20 |
2.0 |
7.5 |
1.5 |
230/380/415 |
50/60 |
1800 |
1200 |
800 |
MB30 |
3.0 |
11.3 |
1.5 |
230/380/415 |
50/60 |
2100 |
1200 |
1000 |
MB40 |
4.0 |
15.0 |
1.5*2 |
230/380/415 |
50/60 |
3000 |
1470 |
1000 |
MB50 |
5.0 |
18.8 |
1.5*2 |
230/380/415 |
50/60 |
4200 |
1470 |
1200 |
MB60 |
6.0 |
22.5 |
1.5*2 |
230/380/415 |
50/60 |
4800 |
1470 |
1200 |
MB80 |
8.0 |
30.0 |
2.0*2 |
230/380/415 |
50/60 |
5700 |
1470 |
1200 |
MB100 |
10.0 |
37.5 |
2.0*2 |
230/380/415 |
50/60 |
7000 |
1680 |
1200 |
MB120 |
12.0 |
45.0 |
2.5*2 |
230/380/415 |
50/60 |
8500 |
1680 |
1200 |
MB150 |
15.0 |
56.3 |
3.0*2 |
230/380/415 |
50/60 |
9800 |
1680 |
1200 |
MB200 |
20.0 |
56.0 |
5.5*2 |
230/380/415 |
50/60 |
11800 |
1680 |
1500 |
Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature and ambient temperature.
Note: the size of machine for reference only, for different block ice size design, machine's size will be different.
Kindly confirm your requirement for each ice block design and power form of the size for install and use the machine.
