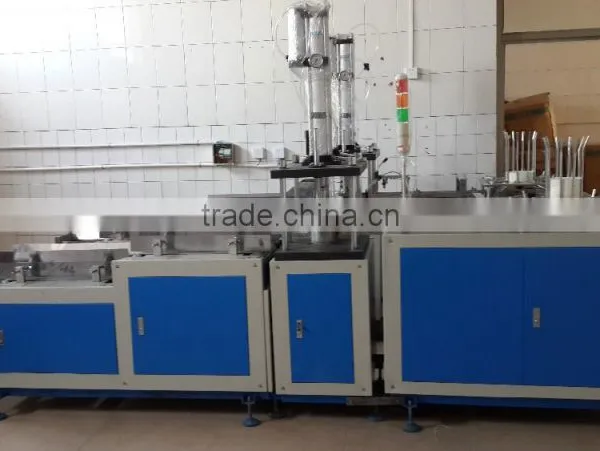

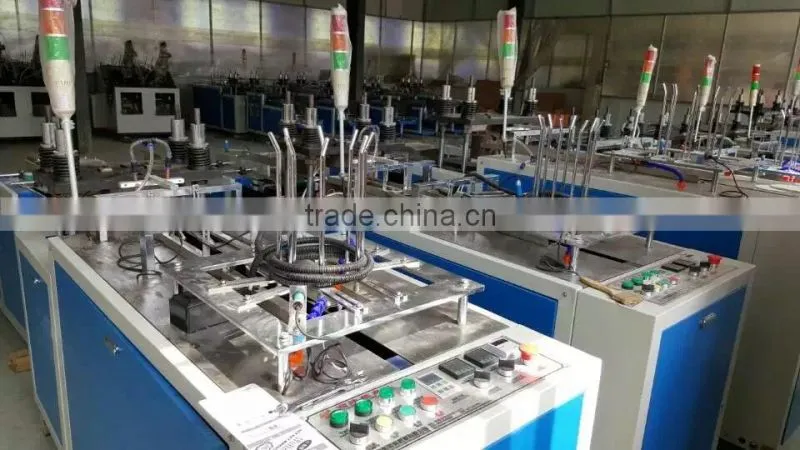

ZDJ - 600 type high speed automatic paper plate machine is designed according to the market need
and independent development, with automatic pneumatic suction paper, heating forming,
a new album and and constant temperature control, automatic counting, automatic folding plate,
and other functions, can form a complete set of production line directly.
Product various specifications of the round paper plates,
square paper plates and profiled the ideal equipment of paper plates.
Machine compared with the traditional paper plate machine,
it combines the principle of combination of pneumatic and mechanical has higher production speed,
more stable performance, safe operation and convenient maintenance and more humanized structure design, etc.
Fully automatic high-speed paper plate machine adopts fast type pressurized cylinder, up to 5 t,
maximum pressure it than with normal cylinder has the advantages of faster and more environmental protection.
New design this Paper Plate making Machine Price, transmission by cam ,gear, chain and belt mechanism, fully automatic feeding paper ,press and form , delivery out products .
Size of the plates(Trays) |

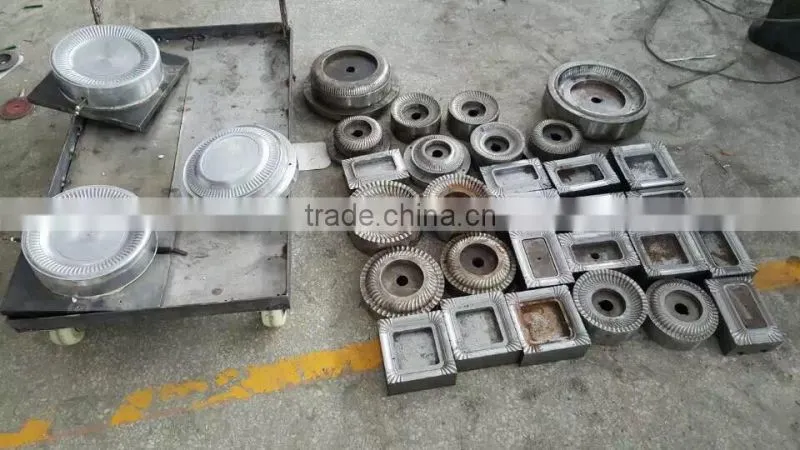

4—15 inch (round diameter) mould changeable |
Material |
Original paper, white board, white cardboard, aluminum foil, etc. |
Thickness of paper |
100---1000 gsm |
Speed |
55-70pcs/ min(1 station) |
Power supply |
220V,50HZ |
Total Power |
3 KW |
Machine weight |
500kgs |
Measure(L*W*H) |
3500* 800 * 2100 mm mm |
Air supply |
0.7MPA, 1.5CBM/MIN |
NOTE: The machine can be customized according to clients. | |
Parameter of supercharge cylinder: | |
Air flow |
1.5 CBM/MIN |
Air pressure |
0.55-0.7 MPA |
Stroke for the cylinder |
150mm |
