Home > Industrial Equipment & Components > Valve > Ball Valve > LPC11 Sanitary Ball Valve Stainless Steel Ball Valve

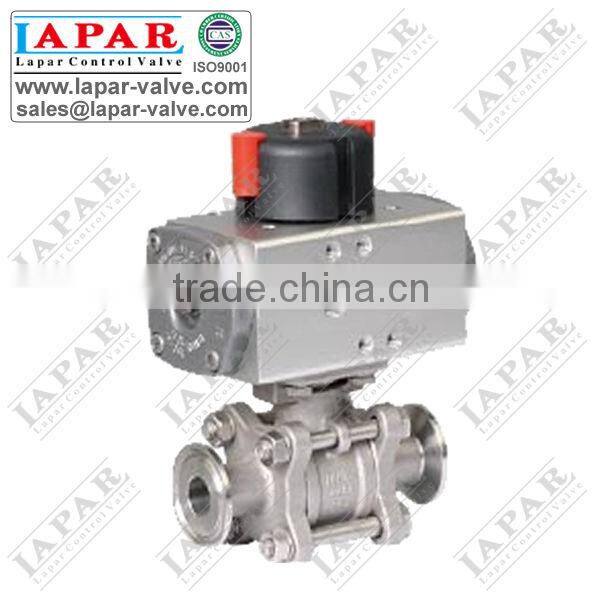

LPC11 Sanitary Ball Valve Stainless Steel Ball Valve
US$ 100 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LPC11 Series Sanitary Ball Valve Stainless Steel Buttery ValveUS$ 40 - 1,000MOQ: 1 Set -
LPC12 Series Sanitary Butterfly Valve Stainless Steel Buttery ValveUS$ 20 - 1,000MOQ: 1 Set
-
LPC13 Series Diverter ValveUS$ 100 - 1,000MOQ: 1 Set
-
LPC14 Series Sanitary Control Valve Pneumatic Adjusted Seat ValveUS$ 100 - 1,000MOQ: 1 Set
-
LAPAR Pneumatic Sanitary Ball Valve for Food and Chemical Use With ISO Mount Plate Welded Male EndUS$ 60 - 1,000MOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Pneumatic
Material
Stainless Steel
Temperature of Media
Medium Temperature
Media
Other, Gas or Water or Oil or Acid or Base
Port Size
DN15-DN100
Place of Origin
Shanghai, China
Model Number
LPC11 series
Brand Name
Lapar Valve
Specifications
Sanitary Ball Valve Pneumatic Actuator1. No precipitate
2. Smooth flow channel
3. PTFE seal, not dead
4. FDA passed
LPC11 Sanitary Ball Valve Stainless Steel Ball Valve - Lapar Valve
Design Featurer
- Pore size consistent with the pipeline, no precipitate
- Flow channel wall 240Grit polishing, to ensure smooth flow channel
- PTFE seal with full package, not dead, easy to clean
- Double stem packing with shrapnel on the pressure plate type device

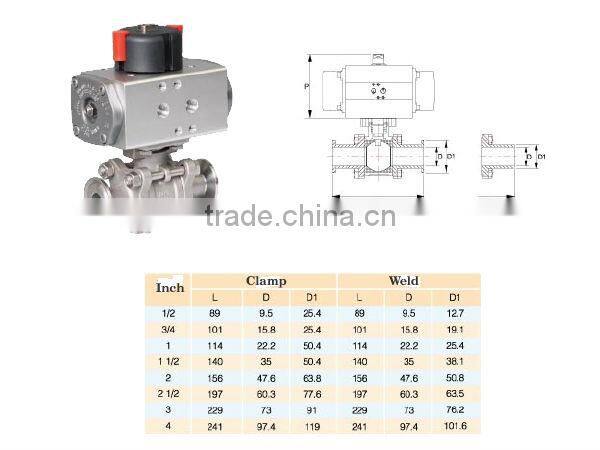

Parameter
Actuator |
Pneumatic (5~7 bar Compressed air), Hand wheel (option) |
DN |
15~100mm (1~12”) |
Pressure |
1.0~6.3Mpa |
Temperature |
PTFE: -29~178°C |
Connection |
Weld, Clamp |
Structure |
3 piece type, 3 way L shape, 3 way T shape |
Material of body |
316, 316L |
Material of ball |
316, 316L |
Sealing Material |
PTFE |
Media |
Sanitary conditions |
Option |
Limited Switch, Locator, Solenoid Valve, Pressure-relief Valve |
