Specifications
LPC12 Sanitary Butterfly Valve1. Body: Stainless Steel 304, 316L
2. Sealing: EPDM
3. FDA certificated
4. Temp:-20~120

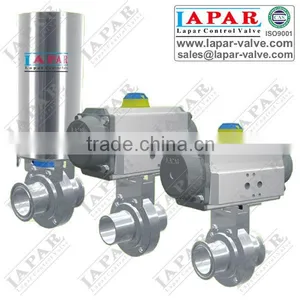

LPC12 series Sanitary Butterfly Valve - Lapar Valve
Design Feature
Metal material |
Contact Product Part |
304/316L(14307/1.4404) Forged |
No-contact Product Part |
304/316L(1.4301) |
|
Provide EN 10204.3.1B certificate | ||
Sealing Material |
Standard |
EPDM |
Option |
FPM, SI |
|
All Seal material coply with FDA 177.2600 | ||
Temperature |
Working Temperature |
-20°C~120°C |
Sterilization Temperature |
150°C(Max 20Min) |
|
Surface Treatment |
Internal Surface |
R≤0.8um |
External Surface |
R≤1.6um |
|
Technical Data
- Size: DN25~DN200 (1"~4")
- A type
- Design in Italy
- Actuator: Pneumatic, Pneumatic & Handwheel, Electric DC24V, Electric AC220V, Electric AC380V, Handle, Turbine & Others
- Applicable Medium: Food, Medical, Electric or other Sanitary industry
Material of Parts
No. |
Part |
Material |
1 |
Stem |
SS304 |
2 |
Body |
SS304, SS316L |
3 |
Disc |
SS304, SS316L |
4 |
Seat |
EPDM, FPM, SI |
5 |
Bolt |
SS304 |
3A Clamp
Size |
L |
L1 |
D |
D1 |
H |
1” |
66 |
89 |
22.1 |
50.5 |
79 |
1-1/2” |
66 |
89 |
34.8 |
50.5 |
85 |
2” |
70 |
95.2 |
47.5 |
64 |
105 |
2-1/2” |
70 |
96.8 |
60.2 |
77.5 |
112 |
3” |
76 |
103 |
72.2 |
91 |
125 |
4” |
76 |
103 |
97.6 |
119 |
157 |
Note: L for Short Clamp, L1 for Long Clamp, Unit mm.
3A/SMS Weld
Size |
L |
H |
3A |
SMS |
|||
D |
D1 |
Size |
D |
D1 |
|||
1” |
68 |
79 |
22.1 |
25.4 |
DN25 |
22.5 |
25 |
1-1/2” |
76 |
85 |
34.8 |
38.1 |
DN38 |
34.5 |
38 |
2” |
80 |
105 |
47.5 |
50.8 |
DN51 |
48 |
51 |
2-1/2” |
80 |
112 |
60.2 |
63.5 |
DN63 |
60.2 |
63.5 |
3” |
82 |
125 |
72.2 |
76.2 |
DN76 |
72.1 |
76.1 |
4” |
88 |
157 |
97.6 |
101.6 |
DN104 |
100 |
104 |

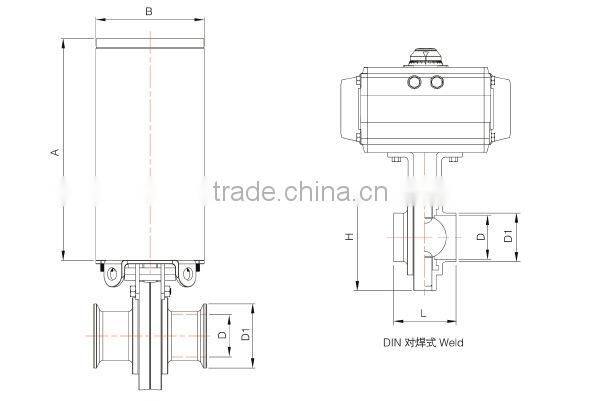

DIN Weld
SIZE |
L |
D |
D1 |
H |
DN25 |
47 |
25 |
28 |
69 |
DN32 |
47 |
31 |
34 |
69 |
DN40 |
47 |
37 |
40 |
80 |
DN50 |
52 |
50 |
53 |
92 |
DN65 |
54 |
64 |
70 |
114 |
DN80 |
58 |
80 |
84 |
134 |
DN100 |
68 |
100 |
104 |
156 |
DN125 |
74 |
125 |
129 |
194 |
DN150 |
74 |
150 |
154 |
218 |
DN200 |
71 |
200 |
204 |
300 |
This Stainless Steel Sanitary Butterfly Valve has very good quality, many customers chocie our sanitary valves for their machine and device.
