Help CenterSanitary Butterfly Valve
US$ 80 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LPC12 Sanitary Butterfly Valve Stainless Steel Butterfly Valve Pneumatic ActuatorUS$ 80 - 1,000MOQ: 1 Set -
LPC11 Sanitary Ball Valve Stainless Steel Ball ValveUS$ 100 - 1,000MOQ: 1 Set
-
LPC11 Series Sanitary Ball Valve Stainless Steel Buttery ValveUS$ 40 - 1,000MOQ: 1 Set
-
LPC12 Series Sanitary Butterfly Valve Stainless Steel Buttery ValveUS$ 20 - 1,000MOQ: 1 Set
-
LPC13 Series Diverter ValveUS$ 100 - 1,000MOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Butterfly
Pressure
Medium Pressure
Power
Pneumatic
Material
Stainless Steel
Temperature of Media
Medium Temperature
Media
Other, Sanitary conditions
Port Size
DN25-DN100
Place of Origin
Shanghai, China
Model Number
LPC12 series
Brand Name
Lapar Valve
Specifications
Sanitary Butterfly Valve,Sanitary Butterfly Valves1. 316L material
2. Sanitary conditions
3. Flow channel wall 240Grit polis
Sanitary Butterfly Valve, Stainless Steel Butterfly Valve, Pneumatic Actuator Sanitary Butterfly Valve - Lapar Valve
Design Featurer
- Pore size consistent with the pipeline, no precipitate
- 316L material suitable for Sanitary conditions
- Flow channel wall 240Grit polishing, to ensure smooth flow channel
- No dead, easy to clean

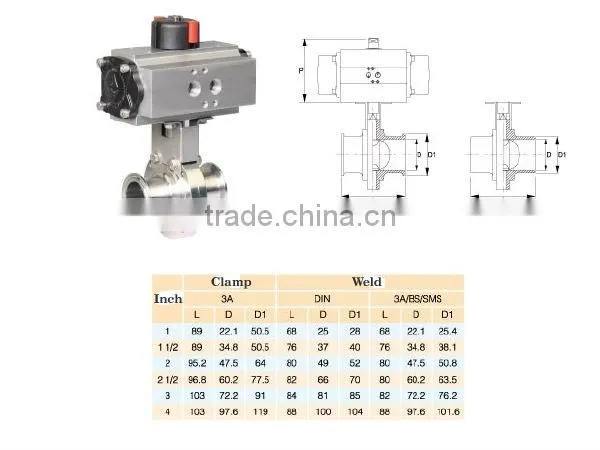

Parameter
Actuator |
Pneumatic (5~7 bar Compressed air), Hand wheel (option) |
DN |
25~100mm (1~4”) |
Pressure |
1.0~1.6Mpa |
Temperature |
EPDM: -29~120°C |
Connection |
Weld, Clamp |
Structure |
A shape |
Material of body |
316, 304 |
Material of ball |
316, 304 |
Sealing Material |
EPDM, FPM, SI |
Media |
Sanitary conditions |
Option |
Limited Switch, Locator, Solenoid Valve, Pressure-relief Valve |
Sanitary Butterfly Valve, Stainless Steel Butterfly Valve, Pneumatic Actuator Sanitary Butterfly Valve
Sanitary Butterfly Valve, Stainless Steel Butterfly Valve, Pneumatic Actuator Sanitary Butterfly Valve
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2005
Factory Size
1,000-3,000 square meters
Total Employees
101 - 200 People
