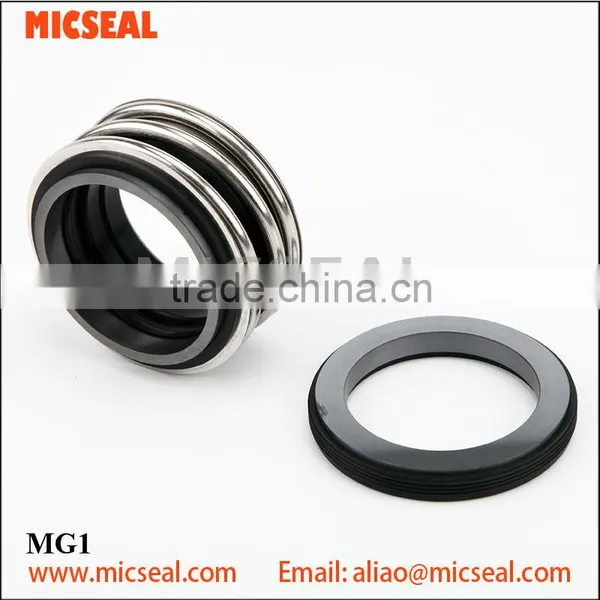

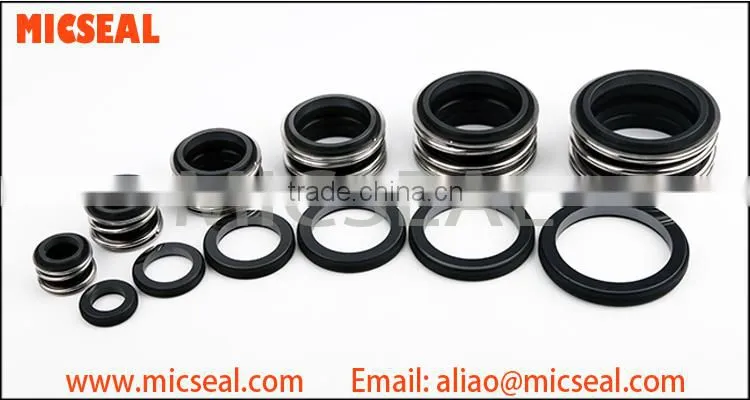

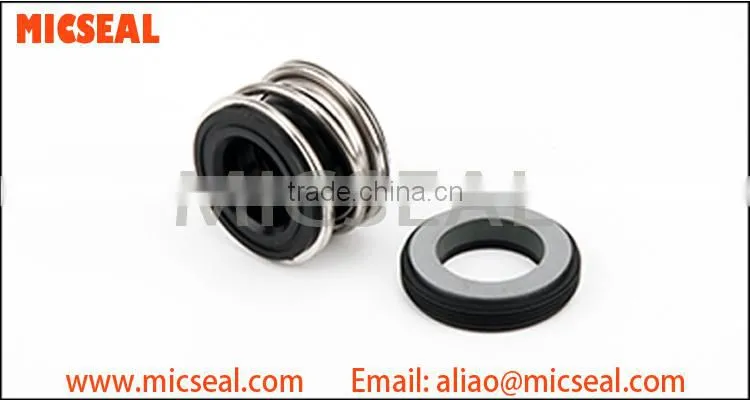

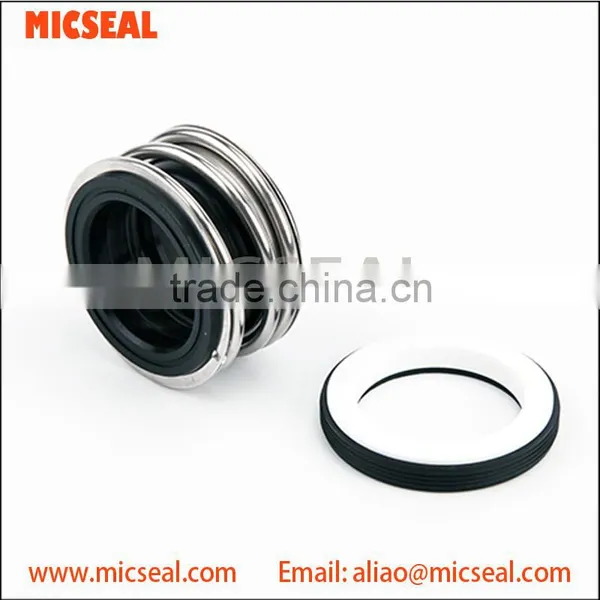

Help CenterMECHANICAL SEAL MG
US$ 1.99 - 20.98
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Style:
Mechanical Seal
Material:
Other, Carbon/Ceramic/Nitrile, Sic/Sic/Viton or EPDM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Style
Mechanical Seal
Material
Other, Carbon/Ceramic/Nitrile, Sic/Sic/Viton or EPDM
Place of Origin
Zhejiang, China
Brand Name
MIC SEAL
Model Number
MG

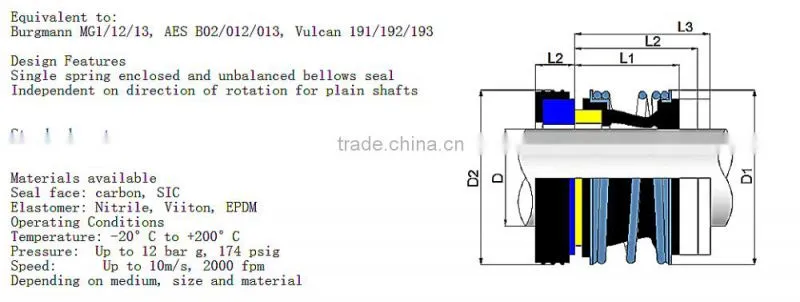

| D(mm) | D1 | D2 | L1 | L12 | L13 | L2 | L1S | L1K | L1N |
| 10 | 24.0 | 21.0 | 15.0 | 25.9 | 33.4 | 6.6 | 21.6 | 32.5 | 40.0 |
| 12 | 24.0 | 23.0 | 15.0 | 25.9 | 33.4 | 6.6 | 21.6 | 32.5 | 40.0 |
| 14 | 28.5 | 25.0 | 17.0 | 28.4 | 33.4 | 6.6 | 23.6 | 35.0 | 40.0 |
| 16 | 28.5 | 27.0 | 17.0 | 28.4 | 33.4 | 6.6 | 23.6 | 35.0 | 40.0 |
| 18 | 32.0 | 33.0 | 19.5 | 30.0 | 37.5 | 7.5 | 27.0 | 37.5 | 45.0 |
| 20 | 37.0 | 35.0 | 21.5 | 30.0 | 37.5 | 7.5 | 29.0 | 37.5 | 45.0 |
| 22 | 37.0 | 37.0 | 21.5 | 30.0 | 37.5 | 7.5 | 29.0 | 37.5 | 45.0 |
| 24 | 42.5 | 39.0 | 22.5 | 32.5 | 42.5 | 7.5 | 30.0 | 40.0 | 50.0 |
| 25 | 42.5 | 40.0 | 23.0 | 32.5 | 42.5 | 7.5 | 30.5 | 40.0 | 50.0 |
| 28 | 49.0 | 43.0 | 26.5 | 35.0 | 42.5 | 7.5 | 34.0 | 42.5 | 50.0 |
| 30 | 49.0 | 45.0 | 26.5 | 35.0 | 47.5 | 7.5 | 34.0 | 42.5 | 55.0 |
| 32 | 53.5 | 48.0 | 27.5 | 35.0 | 47.5 | 7.5 | 35.0 | 42.5 | 55.0 |
| 33 | 53.5 | 48.0 | 27.5 | 35.0 | 47.5 | 7.5 | 35.0 | 42.5 | 55.0 |
| 35 | 57.0 | 50.0 | 28.5 | 35.0 | 47.5 | 7.5 | 36.0 | 42.5 | 55.0 |
| 38 | 59.0 | 56.0 | 30.0 | 36.0 | 46.0 | 9.0 | 39.0 | 45.0 | 55.0 |
| 40 | 62.0 | 58.0 | 30.0 | 36.0 | 46.0 | 9.0 | 39.0 | 45.0 | 55.0 |
| 43 | 65.5 | 61.0 | 30.0 | 36.0 | 51.0 | 9.0 | 39.0 | 45.0 | 60.0 |
| 45 | 68.0 | 63.0 | 30.0 | 36.0 | 51.0 | 9.0 | 39.0 | 45.0 | 60.0 |
| 48 | 70.5 | 66.0 | 30.5 | 36.0 | 51.0 | 9.0 | 39.5 | 45.0 | 60.0 |
| 50 | 74.0 | 70.0 | 30.5 | 38.0 | 50.5 | 9.5 | 40.0 | 47.5 | 60.0 |
| 53 | 78.5 | 73.0 | 33.0 | 36.5 | 59.0 | 11.0 | 44.0 | 47.5 | 70.0 |
| 55 | 81.0 | 75.0 | 35.0 | 36.5 | 59.0 | 11.0 | 46.0 | 47.5 | 70.0 |
| 58 | 85.5 | 78.0 | 37.0 | 41.5 | 59.0 | 11.0 | 48.0 | 52.5 | 70.0 |
| 60 | 88.5 | 80.0 | 38.0 | 41.5 | 59.0 | 11.0 | 49.0 | 52.5 | 70.0 |
| 65 | 93.5 | 85.0 | 40.0 | 41.5 | 69.0 | 11.0 | 51.0 | 52.5 | 80.0 |
| 68 | 96.5 | 90.0 | 40.0 | 41.2 | 68.7 | 11.3 | 51.3 | 52.5 | 80.0 |
| 70 | 99.5 | 92.0 | 40.0 | 48.7 | 68.7 | 11.3 | 51.3 | 60.0 | 80.0 |
| 75 | 107.0 | 97.0 | 40.0 | 48.7 | 68.7 | 11.3 | 51.3 | 60.0 | 80.0 |
| 80 | 112.0 | 105.0 | 40.0 | 48.0 | 78.0 | 12.0 | 52.0 | 60.0 | 90.0 |
| 85 | 120.0 | 110.0 | 41.0 | 46.0 | 76.0 | 14.0 | 55.0 | 60.0 | 90.0 |
| Equivalent to: |
| Burgmann MG1/12/13, AES B02/012/013, Vulcan 191/192/193 |
| Standard seat |
| G60, G6 |
| Materials available |
| Seal face: carbon, SIC |
| Elastomer: Nitrile, Viiton, EPDM |
| Operating Conditions |
| Temperature: -20°C to +200°C |
| Pressure: Up to 12 bar g, 174 psig |
| Speed: Up to 10m/s, 2000 fpm |
| Depending on medium, size and material |
Product Description
| INTRODUCTION OF THIS MECHANICAL SEAL |
|
MG series is widly used in process, chemical, pulp and paper, waste water, food and beverage sugar,etc industries MG series is shaft protection over entire seal length, seal face protection during installation. MG series is insensitive to shaft deflections due to large axial movement ability for universal application opportunities |
| Payment Terms: | L/C, T/T, WesternUnion, MoneyGram, O/A |
|---|
Process an order
Process Of An Order
1. Please check product detailed information above.
A. Model/Size B. Face Material C. Order Quantity.
2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your enquiry.
3. When you place an order, our team will confirm with you about color, package,method of payment and delivery,
then a sales contract will be sent to you to confirm.
4. Packing: Cardboard box with shock (absorbing wrapper inside).
5. How to delivery:
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
Others - We arrange to delivery goods to some place in China appoint by buyers.
