Mechanical Seal John Crane T2100
US$ 0.3 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Style:
Mechanical Seal
Material:
Other, Carbon/Ceramic/Nitrile, Sic/Sic/Viton or EPDM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Style
Mechanical Seal
Material
Other, Carbon/Ceramic/Nitrile, Sic/Sic/Viton or EPDM
Place of Origin
Zhejiang, China
Brand Name
MIC SEAL
Model Number

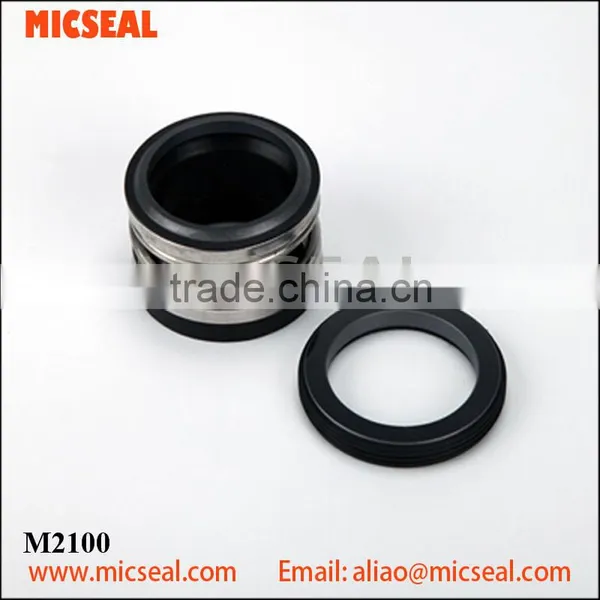

M2100

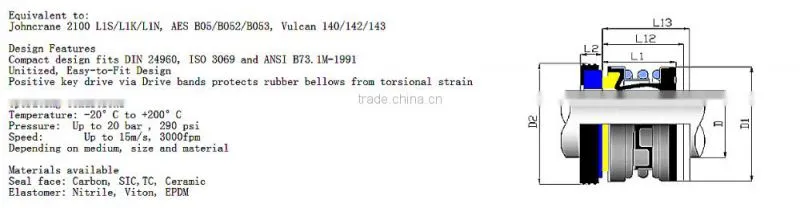

| D(mm) | D1 | D2 | L1 | L12 | L13 | L2 | L1S | L1K | L1N |
| 10 | 20.0 | 22.0 | 15.0 | 27.5 | 35.0 | 5.0 | 20.0 | 32.5 | 40.0 |
| 12 | 22.0 | 23.0 | 15.0 | 26.5 | 34.0 | 6.0 | 21.0 | 32.5 | 40.0 |
| 14 | 24.0 | 25.0 | 15.0 | 29.0 | 34.0 | 6.0 | 21.0 | 35.0 | 40.0 |
| 16 | 26.0 | 27.0 | 15.0 | 29.0 | 34.0 | 6.0 | 21.0 | 35.0 | 40.0 |
| 18 | 32.0 | 33.0 | 20.0 | 31.5 | 39.0 | 6.0 | 26.0 | 37.5 | 45.0 |
| 20 | 34.0 | 35.0 | 20.0 | 31.5 | 39.0 | 6.0 | 26.0 | 37.5 | 45.0 |
| 22 | 36.0 | 37.0 | 20.0 | 31.5 | 39.0 | 6.0 | 26.0 | 37.5 | 45.0 |
| 24 | 38.0 | 39.0 | 20.0 | 34.0 | 44.0 | 6.0 | 26.0 | 40.0 | 50.0 |
| 25 | 39.0 | 40.0 | 20.0 | 34.0 | 44.0 | 6.0 | 26.0 | 40.0 | 50.0 |
| 28 | 42.0 | 43.0 | 26.0 | 36.5 | 44.0 | 6.0 | 32.0 | 42.5 | 50.0 |
| 30 | 44.0 | 45.0 | 26.0 | 35.5 | 43.0 | 7.0 | 33.0 | 42.5 | 55.0 |
| 32 | 46.0 | 48.0 | 26.0 | 35.5 | 48.0 | 7.0 | 33.0 | 42.5 | 55.0 |
| 33 | 47.0 | 48.0 | 26.0 | 35.5 | 48.0 | 7.0 | 33.0 | 42.5 | 55.0 |
| 35 | 49.0 | 50.0 | 26.0 | 34.5 | 47.0 | 8.0 | 34.0 | 42.5 | 55.0 |
| 38 | 54.0 | 56.0 | 30.0 | 37.0 | 47.0 | 8.0 | 38.0 | 45.0 | 55.0 |
| 40 | 56.0 | 58.0 | 30.0 | 37.0 | 47.0 | 8.0 | 38.0 | 45.0 | 55.0 |
| 43 | 59.0 | 61.0 | 30.0 | 37.0 | 52.0 | 8.0 | 38.0 | 45.0 | 60.0 |
| 45 | 61.0 | 63.0 | 30.0 | 37.0 | 52.0 | 8.0 | 38.0 | 45.0 | 60.0 |
| 48 | 64.0 | 66.0 | 30.0 | 35.0 | 50.0 | 10.0 | 40.0 | 45.0 | 60.0 |
| 50 | 66.0 | 70.0 | 30.0 | 37.5 | 50.0 | 10.0 | 40.0 | 47.5 | 60.0 |
| 53 | 69.0 | 73.0 | 30.0 | 37.5 | 60.0 | 10.0 | 40.0 | 47.5 | 70.0 |
| 55 | 71.0 | 75.0 | 30.0 | 37.5 | 60.0 | 10.0 | 40.0 | 47.5 | 70.0 |
| 58 | 78.0 | 78.0 | 33.0 | 42.5 | 60.0 | 10.0 | 43.0 | 52.5 | 70.0 |
| 60 | 80.0 | 80.0 | 33.0 | 40.5 | 58.0 | 12.0 | 45.0 | 52.5 | 70.0 |
| 63 | 83.0 | 83.0 | 33.0 | 40.5 | 58.0 | 12.0 | 45.0 | 52.5 | 70.0 |
| 65 | 85.0 | 85.0 | 33.0 | 40.5 | 68.0 | 12.0 | 45.0 | 52.5 | 80.0 |
| 68 | 88.0 | 90.0 | 33.0 | 40.5 | 68.0 | 12.0 | 45.0 | 52.5 | 80.0 |
| 70 | 90.0 | 92.0 | 33.0 | 48.0 | 68.0 | 12.0 | 45.0 | 60.0 | 80.0 |
| 75 | 99.0 | 97.0 | 40.0 | 48.0 | 68.0 | 12.0 | 52.0 | 60.0 | 80.0 |
| 80 | 104.0 | 105.0 | 40.0 | 47.5 | 77.5 | 12.5 | 52.5 | 60.0 | 90.0 |
Mechancial seal John Crane T2100
| Equivalent to: |
| Johncrane 2100 L1S/L1K/L1N, AES B05/B052/B053, Vulcan 140/142/143 |
| Operating Conditions |
| Temperature: -20°C to +200°C |
| Pressure: Up to 20 bar , 290 psi |
| Speed: Up to 15m/s, 3000fpm |
| Depending on medium, size and material |
| Materials available |
| Seal face: Carbon, SIC,TC, Ceramic |
| Elastomer: Nitrile, Viton, EPDM |
Product Description
| INTRODUCTION OF THIS MECHANICAL SEAL |
| M2100 series is widly used in process, chemical, pulp and paper, waste water, food and beverage sugar,etc industries M2100 series is shaft protection over entire seal length, seal face protection during installation. M2100 series is insensitive to shaft deflections due to large axial movement ability for universal application opportunities |
Payment terms
| Payment Terms: | L/C, T/T, WesternUnion, MoneyGram, O/A |
|---|
